Transmission Auxiliary Cooler
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

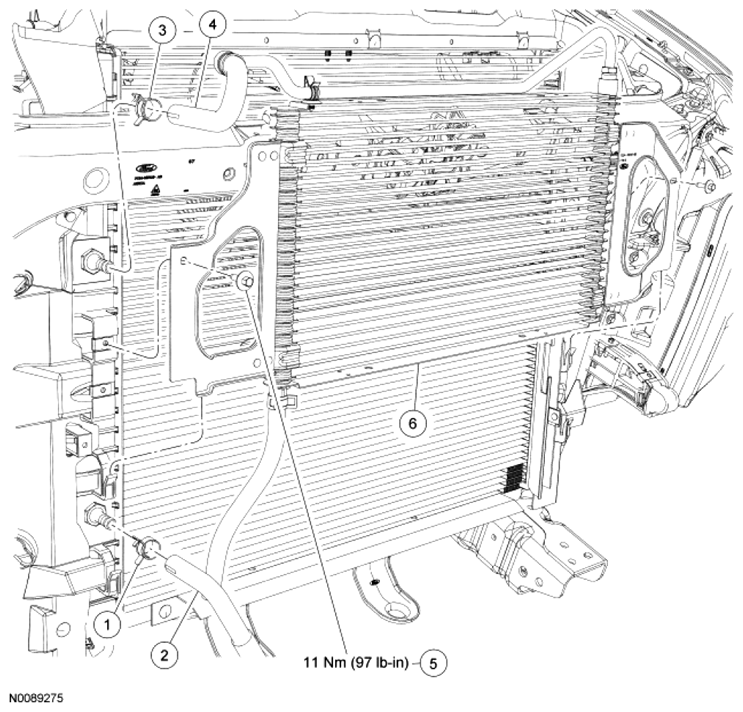

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Transmission fluid cooler outlet hose clamp |
| 2 | 7890 | Transmission fluid cooler outlet hose |
| 3 | - | Transmission auxiliary fluid cooler-to-radiator inlet hose clamp |
| 4 | 7890 | Transmission auxiliary fluid cooler-to-radiator inlet hose |
| 5 | W503924 | Transmission auxiliary fluid cooler bolt (2 required) |
| 6 | 7H189 | Transmission auxiliary fluid cooler |
