Removal And Installation: Thermostat: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Drain the cooling system. REFER to: Cooling System Draining and Vacuum Filling .
- 2.NOTE: Cover the accessory drive belt to prevent coolant contamination of the belt.
Completely cover the accessory drive belt with waterproof plastic.

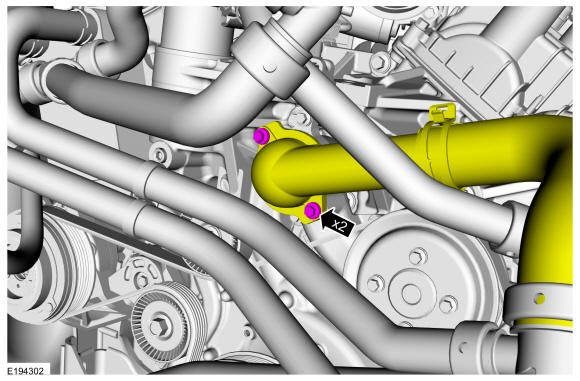

- 3.NOTE: During installation, make sure the coolant outlet connection is fully seated on the thermostat housing before tightening the bolts.
Remove the bolts and detach the coolant inlet connector.
Torque
: 89 lb.in (10 Nm)

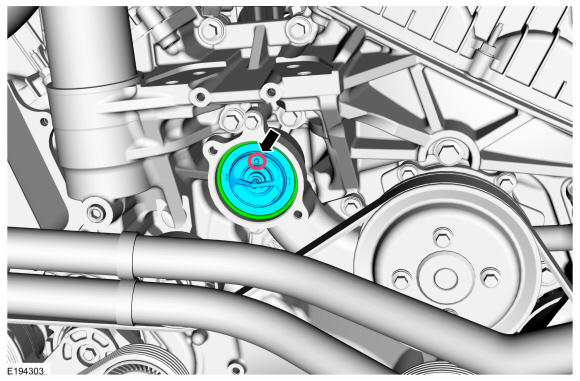

- 4.NOTE: During installation verify the thermostat vent hole is at the 12 o'clock position.
Remove the O-ring seal and the thermostat.
