Cylinder Head to Coolant Outlet Connector Hose Assembly: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Left-hand (LH) side

1.

Drain the cooling system. REFER to: Cooling System Draining and Vacuum Filling .

2.

Remove the LH front wheel and tire. REFER to: Wheel and Tire .

3.

Remove the LH fender splash shields. REFER to: Fender Splash Shield .

4.

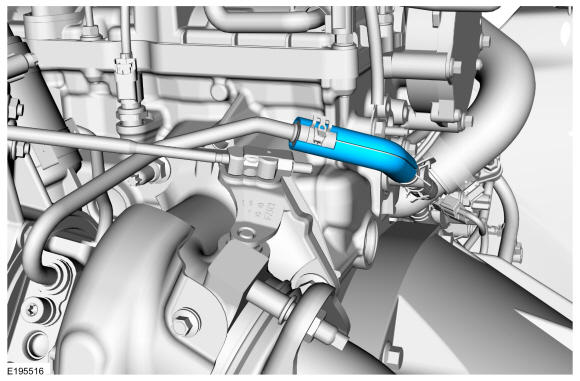

Remove the heat sleeve from the coolant hose.

Courtesy of FORD MOTOR COMPANY

5.

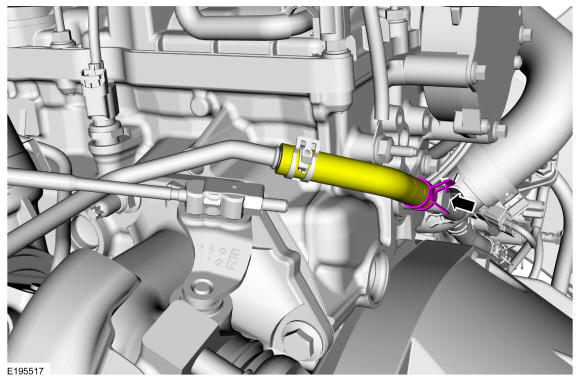

Release the clamp and disconnect the coolant hose.
Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

6.

NOTE: Do not pry the cylinder head to coolant outlet connector behind the fastener bracket. If necessary use gripping pliers to pull the cylinder head to coolant outlet connector from the cylinder head.

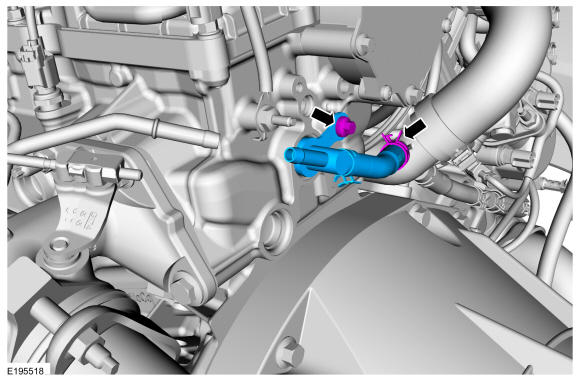

Release the clamp and disconnect the coolant hose. Remove the fastener then remove the cylinder head to coolant outlet connector hose assembly.

Use the General Equipment: Hose Clamp Remover/Installer

Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

7.

Inspect the O-ring and replace if necessary.

Courtesy of FORD MOTOR COMPANY

Right-hand (RH) side

8.

Drain the cooling system. REFER to: Cooling System Draining and Vacuum Filling .

9.

Remove the RH front wheel and tire. REFER to: Wheel and Tire .

10.

Remove the RH fender splash shield. REFER to: Fender Splash Shield .

11.

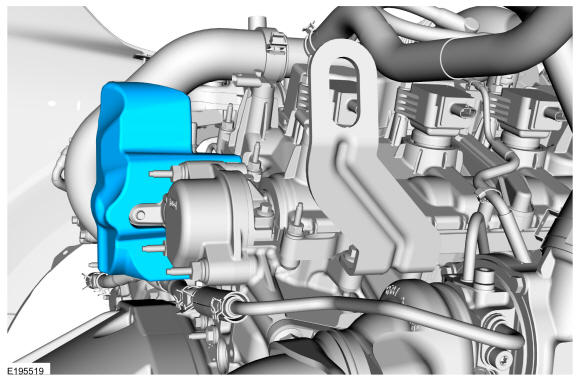

Remove the high-pressure fuel pump sound insulator.

Courtesy of FORD MOTOR COMPANY

12.

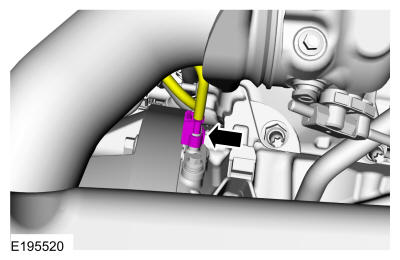

Disconnect the CKP sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

13.

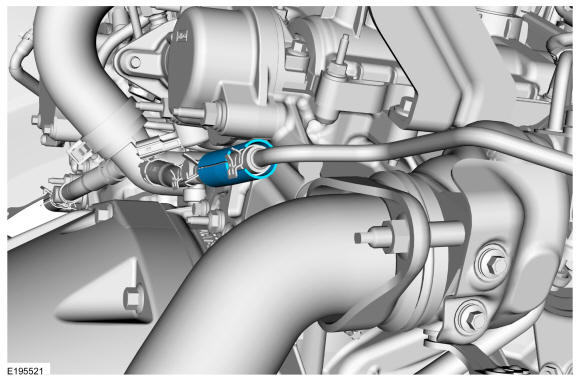

Remove the heat sleeve from the coolant hose.

Courtesy of FORD MOTOR COMPANY

14.

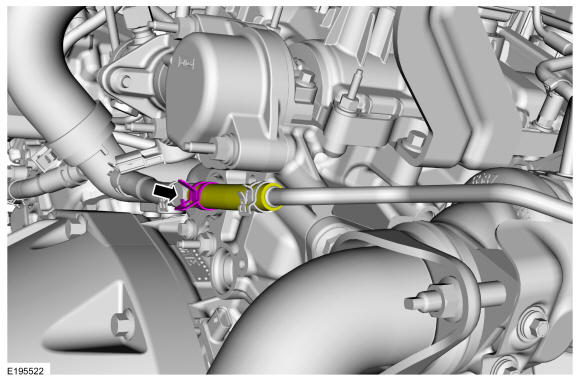

Release the clamp and disconnect the coolant hose.
Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

15.

NOTE: Do not pry the cylinder head to coolant outlet connector behind the fastener bracket. If necessary use gripping pliers to pull the cylinder head to coolant outlet connector from the cylinder head.

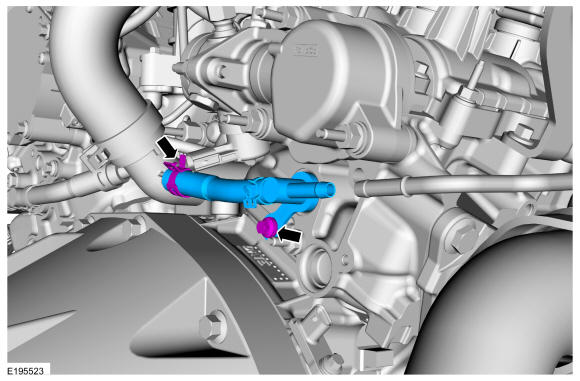

Release the clamp and disconnect the coolant hose. Remove the fastener then remove the cylinder head to coolant outlet connector hose assembly.

Use the General Equipment: Hose Clamp Remover/Installer

Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

16.

Inspect the O-ring and replace if necessary.

Courtesy of FORD MOTOR COMPANY
