Coolant Outlet Connector: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the fuel rails. REFER to: FUEL RAIL .

2.

Remove the coolant pump. REFER to: Coolant Pump .

3.

Release the clamp and disconnect the coolant hose. Remove the knock sensor harness retainer from the fastener stud.
Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

4.

Release the clamps and disconnect the coolant hoses. Remove the fasteners and the coolant outlet connector and inlet pipe assembly.
Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

5.

NOTE: Note the orientation of the coolant hose clamp and the coolant hose inlet pipe prior to removal.

NOTE: DO NOT discard the coolant hose metal sleeve.

Release the hose clamp and remove the coolant hose and coolant inlet pipe assembly.

Courtesy of FORD MOTOR COMPANY

6.

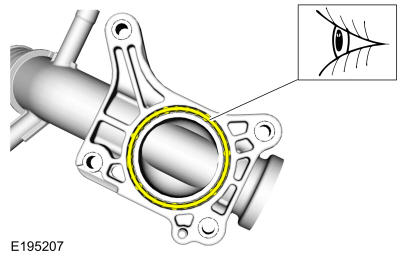

Inspect the coolant outlet connector O-ring and replace if necessary.

Courtesy of FORD MOTOR COMPANY
