Coolant Outlet Connector: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Position the hose clamp and install the coolant hose and coolant inlet pipe assembly.
Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

2.
1. 1.

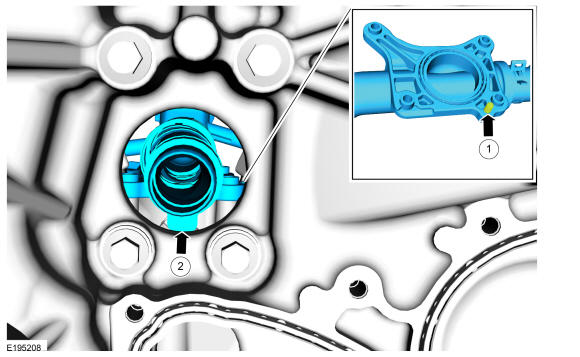

  Place the coolant outlet connector and inlet pipe assembly into the intake valley. Verify the locator dowel is fully seated into the engine block.
1. 2.

  Verify the coolant inlet tube tab is at the 6 O'clock position and flush with the rear of the front cover housing opening.

Courtesy of FORD MOTOR COMPANY

3.

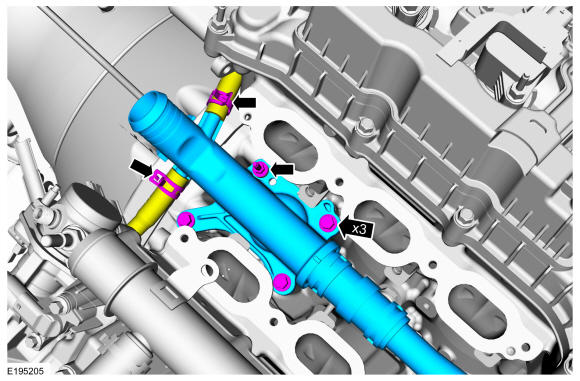

Install and tighten the fasteners. Connect the coolant hoses and install the hose clamps.
Use the General Equipment: Hose Clamp Remover/Installer

Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

4.

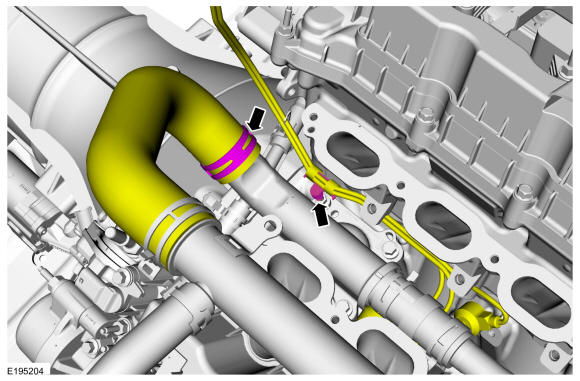

Connect the coolant hose and install the hose clamp. Connect the knock sensor harness retainer to the fastener stud.
Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

5.

Install the fuel rails. REFER to: FUEL RAIL .

6.

Install the coolant pump. REFER to: Coolant Pump .
