Engine Cooling - Component Location
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

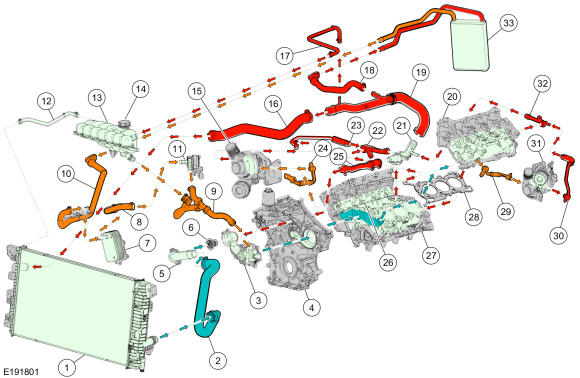

Coolant temperature will vary with ambient temperature and load. Temperatures shown are for ambient temperature of 38°C (100°F). Red arrows indicate a temperature over 90°C (194°F), Orange arrows indicate a temperature of approximately 90°C (194°F), Blue arrows indicate a temperature below 90°C (194°F).
| Item | Description |
|---|---|
| 1 | Radiator |
| 2 | Lower radiator hose |
| 3 | Coolant pump |
| 4 | Engine front cover |
| 5 | Coolant inlet connector |
| 6 | Thermostat |
| 7 | Oil cooler |
| 8 | Coolant pump inlet hose |
| 9 | Coolant outlet hose |
| 10 | Heater outlet hose |
| 11 | Cabin Heater Coolant Pump |
| 12 | Radiator-to-degas bottle hose |
| 13 | Degas bottle |
| 14 | Pressure relief cap |
| 15 | Turbocharger RH |
| 16 | Upper radiator hose |
| 17 | Air aspirator hose |
| 18 | Heater hose inlet |
| 19 | Coolant outlet connector hose |
| 20 | Cylinder head LH |
| 21 | Coolant outlet connector |
| 22 | Cylinder head to coolant outlet connector hose RH |
| 23 | Turbocharger outlet tube RH |
| 24 | Turbocharger inlet tube RH |
| 25 | Coolant Outlet Connector |
| 26 | Cylinder head RH |
| 27 | Cylinder block |
| 28 | Cylinder head gasket LH |
| 29 | Turbocharger inlet tube LH |
| 30 | Turbocharger outlet tube LH |
| 31 | Turbocharger LH |
| 32 | Cylinder head to coolant outlet connector hose LH |
| 33 | Heater core |
