Valve Cover RH: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

  1. 1.

    With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

  1. 2.

    Drain the engine cooling system. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .

  1. 3.

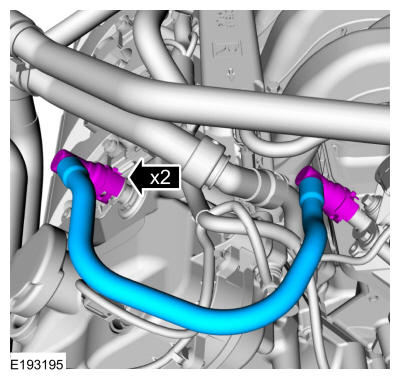

    Disconnect the quick release couplings and remove the PCV tube. Refer to: QUICK RELEASE COUPLING .
GFD40503Courtesy of FORD MOTOR COMPANY

  1. 4.

    Disconnect the heater hoses and detach the hose retainer.
GFD40571Courtesy of FORD MOTOR COMPANY

  1. 5.

    Disconnect the engine wiring harness electrical connectors and detach the harness retainers.
GFD39853Courtesy of FORD MOTOR COMPANY

  1. 6.

    Remove the RH ignition coils. Refer to: IGNITION COIL-ON-PLUG .

  1. 7.

    Remove the nut and the ground wire.
GFD40572Courtesy of FORD MOTOR COMPANY

  1. 8.

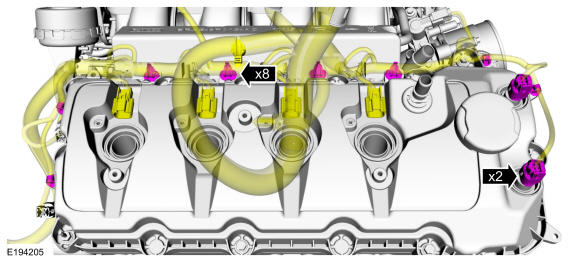

    NOTE: 4x2 shown in illustration, 4x4 similar.
    • Disconnect the VCT variable force solenoid electrical connectors.
    • Detach the wiring harness retainers.
GFD40573Courtesy of FORD MOTOR COMPANY

  1. 9.

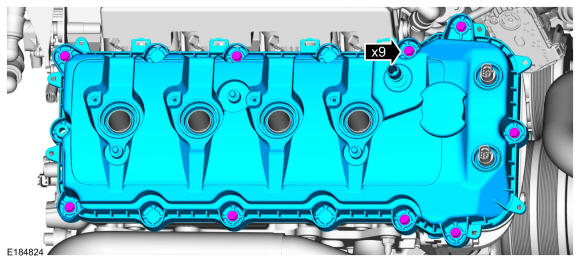

    Loosen the bolts and remove the valve cover.
GFD40574Courtesy of FORD MOTOR COMPANY

  1. 10.

    NOTE: Clean the valve cover gasket groove with soap and water or a suitable solvent.

    Remove and discard the gasket.

GFD40575Courtesy of FORD MOTOR COMPANY

  1. 11.

    Inspect the VCT variable force solenoid seals. Remove any damaged seals using the special tools.

    Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 205-142 (T80T-4000-J) installer, Differential Bearing Cone.

GFD40562Courtesy of FORD MOTOR COMPANY

  1. 12.

    Inspect the spark plug seals. Remove any damaged seals using the special tools.

    Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

GFD40563Courtesy of FORD MOTOR COMPANY

  1. 13.

    NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

    Clean the valve cover mating surface of the cylinder head and engine front cover. Refer to: RTV Sealing Surface Cleaning and Preparation .

    Use the General Equipment: Plastic Scraper

    Material

    : Motorcraft® Silicone Gasket Remover / ZC-30-A

    Material

    : Motorcraft® Metal Surface Prep / ZC-31-B

    Material

    : Metal Brake Parts Cleaner / PM-4-A, PM-4-B

GFD40576Courtesy of FORD MOTOR COMPANY
