Valve Cover LH: Installation
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- 1.NOTE: Installation of new seals is only required if damaged seals were removed.
Using the special tools, install new spark plug tube seals.
Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 303-1247 VCT Spark Plug Tube Seal Remover and Installer.
- 2.NOTE: Installation of new seals is only required if damaged seals were removed.
Using the special tools, install new VCT variable force solenoid seals.
Use Special Service Tool: 205-153 (T80T-4000-W)Handle, 205-142 (T80T-4000-J) installer, Differential Bearing Cone.
- 4.NOTE: If the valve cover is not installed and the fasteners tightened within 5 minutes, the sealant must be removed and the sealing area cleaned.
Apply an 8 mm (0.31 in) bead of silicone gasket and sealant to the engine front cover-to-cylinder head joints.
Material
: Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)
- 6.
- 1.
Push the oil level indicator tube into the engine.
- 2.
Rotate the oil level indicator tube clockwise.
- 3.
Verify the tab is locked in place.
- 4.
Install the oil level indicator.
- 1.

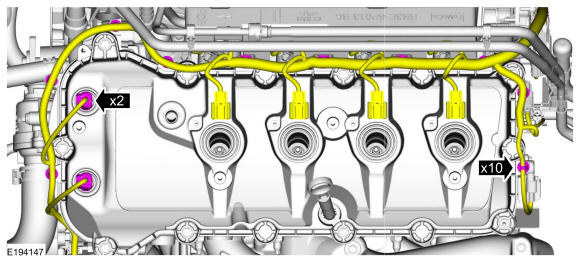

- 7.
- Attach the wiring harness retainers.
- Connect the VCT variable force solenoid electrical connectors.
- 9.
Install the LH ignition coils. Refer to: IGNITION COIL-ON-PLUG .
- 10.

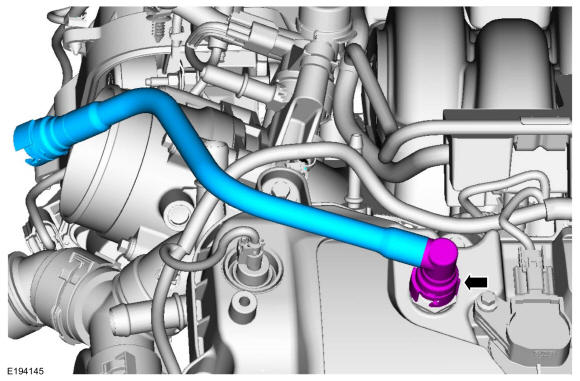

Position the PCV tube and connect the quick release coupling. Refer to: QUICK RELEASE COUPLING .
- 11.
Install the following items:- Refer to: AIR CLEANER .
- Refer to: AIR CLEANER OUTLET PIPE .
