Oil Pan: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

4x2/4x4

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2.

Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

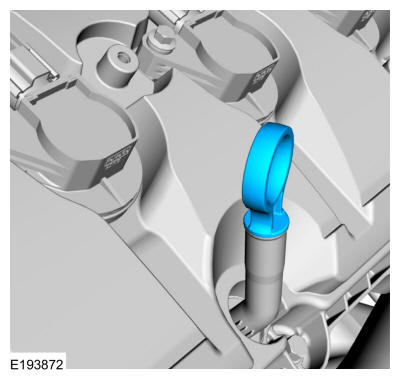

3.

Remove the oil level indicator.

GFD40525

Courtesy of FORD MOTOR COMPANY

4.

If equipped, remove the bolts and the skid plate.

GFD38662

Courtesy of FORD MOTOR COMPANY

5.

If equipped, remove the fasteners and the underbody shield.

GFD38663

Courtesy of FORD MOTOR COMPANY

6.

If equipped, remove the fasteners and the underbody shield.

GFD38415

Courtesy of FORD MOTOR COMPANY

7.

If equipped, remove the bolts and the skid plate.

GFD39149

Courtesy of FORD MOTOR COMPANY

8.

Remove the nuts, bolts and the crossmember.

GFD39206

Courtesy of FORD MOTOR COMPANY

9.
- Remove the oil pan drain plug and drain the engine oil.
  Use the General Equipment: Oil Drain Equipment
- Install the oil pan drain plug.
  Torque

  : 19 lb.ft (26 Nm)

GFD40408

Courtesy of FORD MOTOR COMPANY

4x4

10.

Using an adjustable stand, support the front axle.
Use the General Equipment: Vehicle/Axle Stands

GFD39153

Courtesy of FORD MOTOR COMPANY

11.

Remove the upper front axle carrier mounting bushing bolt.

GFD40451

Courtesy of FORD MOTOR COMPANY

12.

Remove the axle shaft housing carrier bushing bolt.

GFD39155

Courtesy of FORD MOTOR COMPANY

13.

Remove the lower front axle carrier mounting bushing bolt.

GFD39207

Courtesy of FORD MOTOR COMPANY

14.

Using an adjustable stand, lower the axle to allow clearance for the oil pan to be removed.
Use the General Equipment: Vehicle/Axle Stands

GFD39157

Courtesy of FORD MOTOR COMPANY

4x2/4x4

15.

Remove the bolt and position the transmission cooler tubes aside.

GFD40526

Courtesy of FORD MOTOR COMPANY

16.

Remove the nut and position the transmission cooler tubes aside.

GFD40429

Courtesy of FORD MOTOR COMPANY

17.
1. 1.

  Depress the tab and detach the wiring harness retainer from the oil pan.
1. 2.

  Slide the wiring harness retainer off of the engine front cover stud bolt.
1. 3.

  Remove the nut.
1. 4.

  Detach the wiring harness retainer off of the oil pan stud bolt.

GFD40430

Courtesy of FORD MOTOR COMPANY

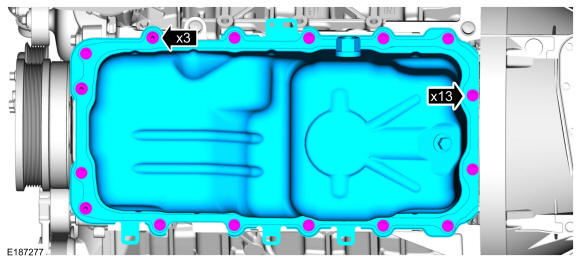

18.

Remove the bolts, stud bolts and the oil pan.
- Remove and discard the gasket.

GFD40527

Courtesy of FORD MOTOR COMPANY

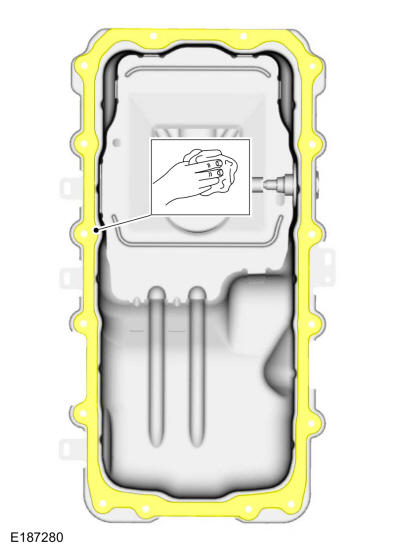

19.

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths.

Make sure that the mating faces are clean and free of foreign material.

GFD40528

Courtesy of FORD MOTOR COMPANY

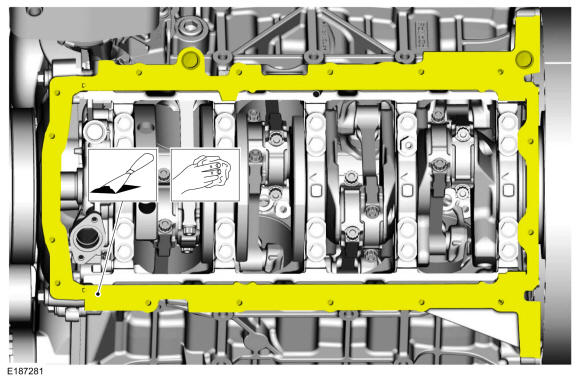

20.

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.

Make sure that the oil pan mating faces of the cylinder block, engine front cover and real seal retaining plate are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .

Use the General Equipment: Plastic Scraper

Material

: Motorcraft® Silicone Gasket Remover / ZC-30-A

Material

: Metal Brake Parts Cleaner / PM-4-A, PM-4-B

Material

: Motorcraft® Metal Surface Prep / ZC-31-B

GFD40529

Courtesy of FORD MOTOR COMPANY
