Oil Pan: Installation

4x2/4x4

1. 1.


   NOTE: If the oil pan is not installed and the fasteners tightened within 5 minutes, the sealant must be removed and the sealing area cleaned. Failure to follow this procedure can cause future oil leakage. If this timing cannot be met, tighten fasteners 7, 8, 9 and 10 to 8 Nm (71 lb-in) within 5 minutes of applying the sealer and final torque all of the fasteners within 1 hour of applying the sealer.
   NOTE: If the engine front cover has been removed, it is only necessary to apply sealant to the crankshaft rear seal retainer plate-to-cylinder block sealing surfaces.

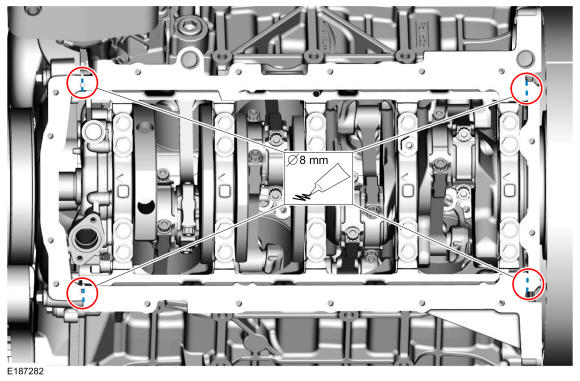

   Apply an 8 mm (0.31 in) bead of silicone gasket and sealant to the crankshaft rear seal retainer plate-to-cylinder block sealing surfaces and the engine front cover-to-cylinder block sealing surfaces.

   Material

   : Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY

1. 2.


   NOTE: Fastener locations 7, 13 and 16 are stud bolts.

   Using a new gasket, install the oil pan and the bolts.

   Torque:

   Stage 1: 18 lb.in (2 Nm)

   Stage 2: 89 lb.in (10 Nm)

   Stage 3: 45°

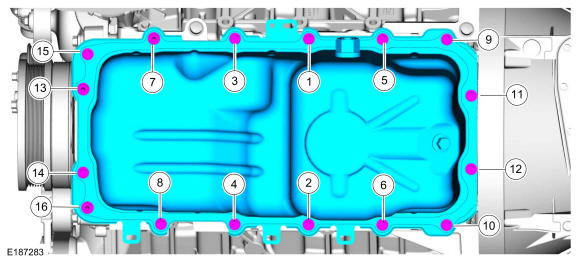

Fig 1: Oil Pan Tightening Sequence

Courtesy of FORD MOTOR COMPANY

1. 3.



   1. 1.

      Attach the wiring harness retainer to the oil pan stud bolt.

   1. 2.

      Install the nut.

      Torque

      : 106 lb.in (12 Nm)

   1. 3.

      Slide the wiring harness retainer onto the engine front cover stud bolt.

   1. 4.

      Attach the wiring harness retainer to the oil pan.

Courtesy of FORD MOTOR COMPANY

1. 4.

   Position the transmission cooler tubes and install the nut.

   Torque

   : 115 lb.in (13 Nm)

Courtesy of FORD MOTOR COMPANY

1. 5.

   Position the transmission cooler tubes and install the bolt.

   Torque

   : 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

4x4

1. 6.

   Using an adjustable stand, raise the front axle carrier into position.

   Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

1. 7.

   Install the lower front axle carrier mounting bushing bolt.

   Torque

   : 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

1. 8.

   Install the axle shaft housing carrier bushing bolt.

   Torque

   : 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

1. 9.

   Install the upper front axle carrier mounting bushing bolt.

   Torque

   : 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

1. 10.

   Remove the adjustable stand.

   Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

4x2/4x4

1. 11.

   Remove and discard the engine oil filter.

Courtesy of FORD MOTOR COMPANY

1. 12.


   NOTE: Do not lubricate the O-ring seal.

   Install a new oil filter.

   Torque:

   Stage 1: 44 lb.in (5 Nm)

   Stage 2: 180°

Courtesy of FORD MOTOR COMPANY

1. 13.

   Install the crossmember, bolts and the nuts.

   Torque

   : 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY

1. 14.

   If equipped, install the skid plate and bolts.

   Torque

   : 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

1. 15.

   If equipped, install the underbody shield and fasteners.

   Torque

   : 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

1. 16.

   If equipped, install the underbody shield and fasteners.

   Torque

   : 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

1. 17.

   If equipped, install the skid plate and bolts.

   Torque

   : 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

1. 18.

   Install the oil level indicator.

Courtesy of FORD MOTOR COMPANY

1. 19.

   Fill the engine with clean engine oil. Refer to: Specifications .

   Material

   : Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

Courtesy of FORD MOTOR COMPANY

1. 20.

   Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
