Oil Cooler: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2.

Remove and discard the engine oil filter.

Courtesy of FORD MOTOR COMPANY

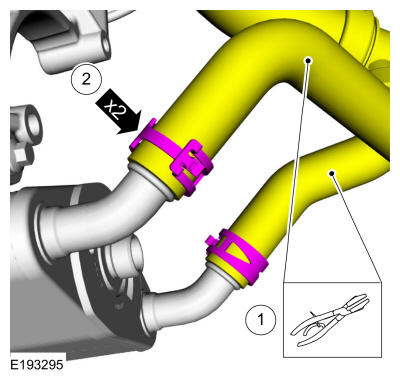

3.
- Using hose locking pliers, clamp the oil cooler coolant hoses.
  Use the General Equipment: Locking Pliers
- Disconnect the coolant hoses.

Courtesy of FORD MOTOR COMPANY

4.

Remove the retainer and the oil cooler.

Courtesy of FORD MOTOR COMPANY

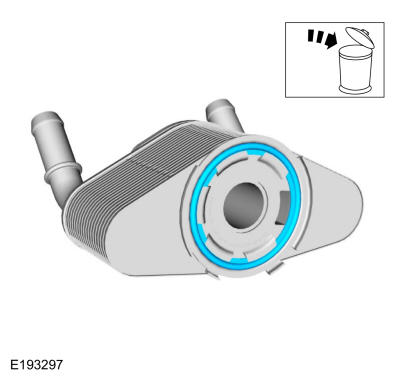

5.

Remove and discard the gasket.

Courtesy of FORD MOTOR COMPANY

6.

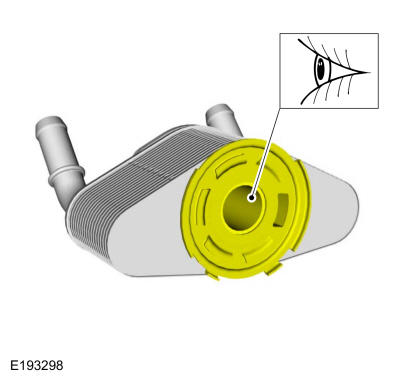

NOTE: If metal or aluminum material is present in the oil cooler, mechanical concerns exist. Failure to correct these concerns may cause engine failure. To diagnose mechanical concerns, refer to appropriate Engine article.

Inspect the oil cooler.

Courtesy of FORD MOTOR COMPANY
