Oil Cooler: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

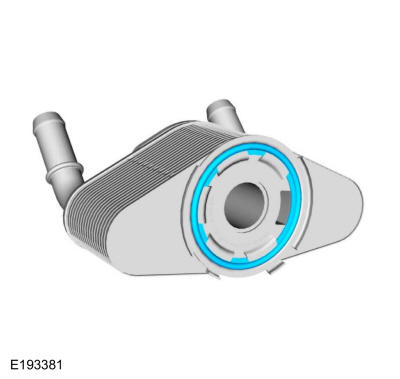

1.

Install a new gasket.

Courtesy of FORD MOTOR COMPANY

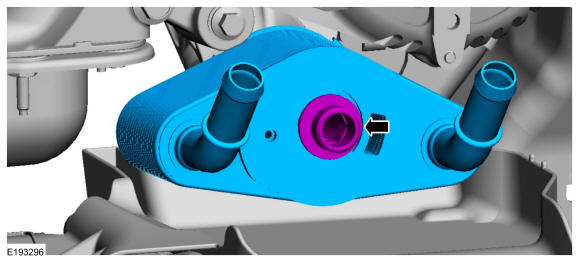

2.

Install the oil cooler and the retainer.
Torque

: 43 lb.ft (58 Nm)

Courtesy of FORD MOTOR COMPANY

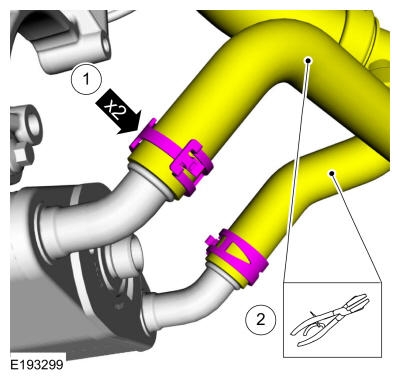

3.
- Connect the coolant hoses.
- Remove the hose locking pliers.
  Use the General Equipment: Locking Pliers

Courtesy of FORD MOTOR COMPANY

4.

NOTE: Do not lubricate the O-ring seal.

Install a new oil filter.

Torque:

Stage 1: 44 lb.in (5 Nm)

Stage 2: 180°

Courtesy of FORD MOTOR COMPANY

5.

Inspect and adjust the coolant level in the degas bottle
Material

: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

6.

Inspect and adjust the engine oil level.
Material

: Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
