Exhaust Manifold RH: Installation
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- 1.

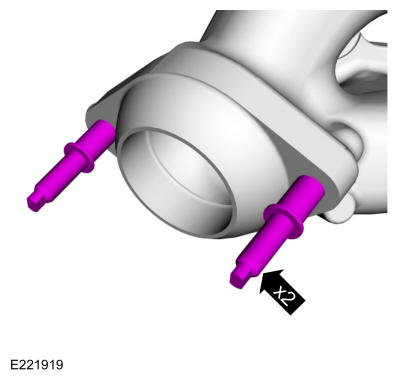

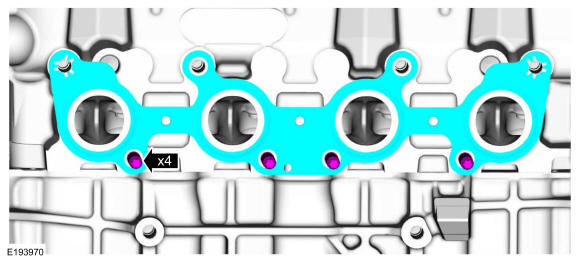

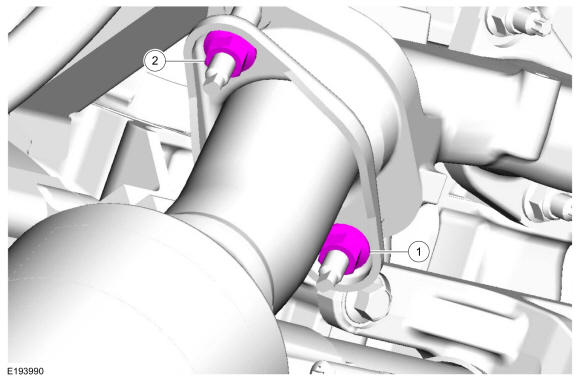

Install new studs and new gasket.Torque
: 18 lb.ft (25 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 2.
NOTE:
Do not tighten the exhaust manifold nuts at this time.

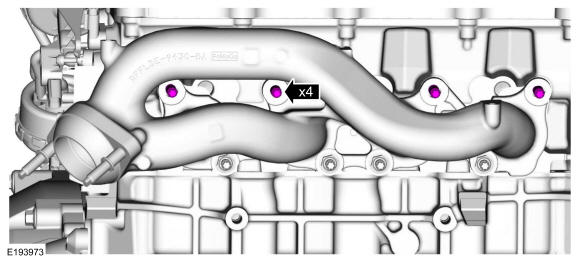

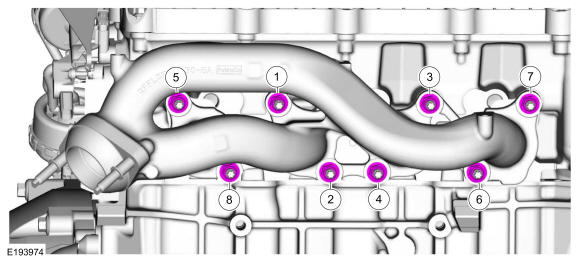

Install the exhaust manifold.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

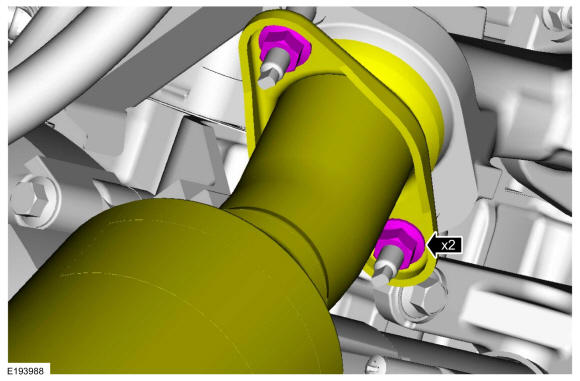

Install new studs.Torque
: 18 lb.ft (25 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 4.
NOTE:
Do not tighten the exhaust manifold nuts at this time.

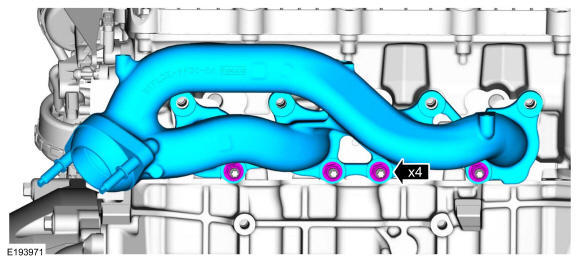

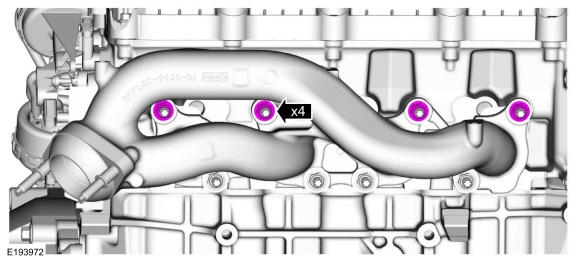

Install the remaining new nuts.
 Courtesy of FORD MOTOR COMPANY
|
- 5.
Tighten the nuts.Torque:
Stage 1: 18 lb.ft (24 Nm)
Stage 2: 24 lb.ft (32 Nm)
Courtesy of FORD MOTOR COMPANY
- 6.
NOTE:
Some replacement exhaust manifolds do not come with studs.
If necessary, install new studs.
Torque
: 30 lb.ft (40 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 7.

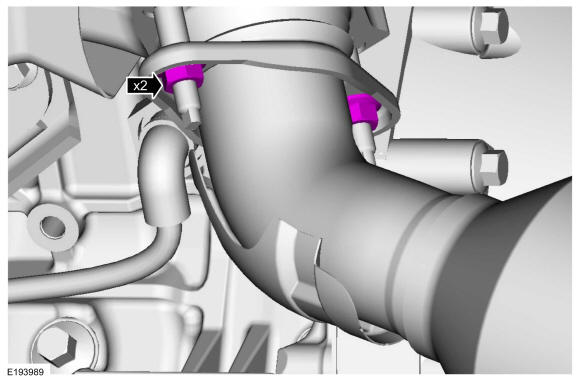

Position the exhaust Y-pipe dual catalytic converter onto the exhaust manifolds and loosely install new RH catalytic converter-to-exhaust manifold nuts.
 Courtesy of FORD MOTOR COMPANY
|
- 8.

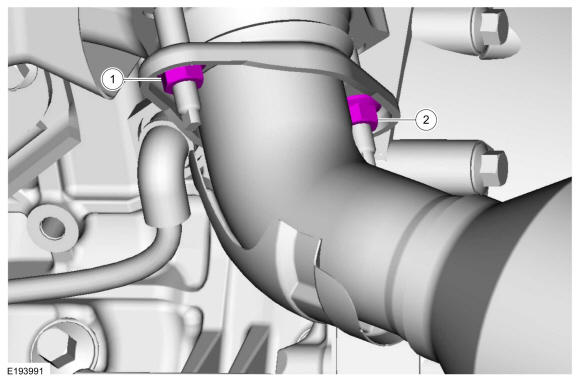

Loosely install new LH catalytic converter-to-exhaust manifold nuts.
 Courtesy of FORD MOTOR COMPANY
|
- 9.
Tighten the nuts.Torque:
1: 30 lb.ft (40 Nm)
2: 30 lb.ft (40 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 10.
Tighten the nuts.Torque:
1: 30 lb.ft (40 Nm)
2: 30 lb.ft (40 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 11.

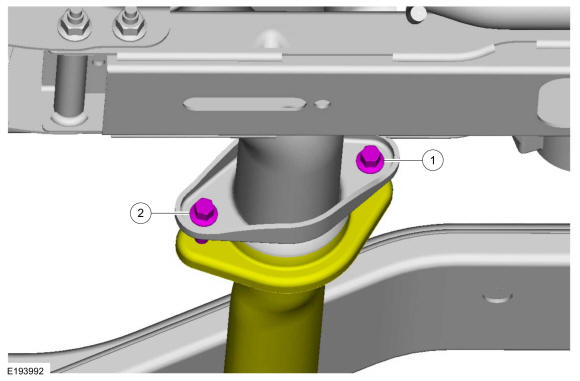

Position the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe and install new bolts.Torque:
1: 46 lb.ft (63 Nm)
2: 46 lb.ft (63 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 12.

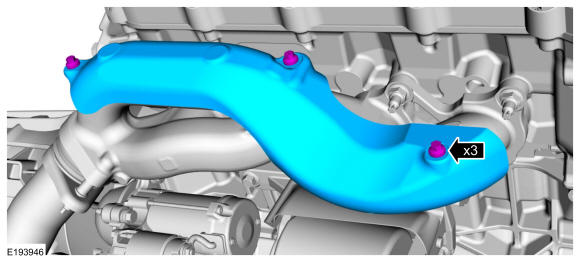

Install the heat shield and bolts.Torque
: 106 lb.in (12 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 13.
Install the following items:
- 14.
If equipped, install the skid plate and bolts.Torque
: 30 lb.ft (40 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 15.
If equipped, install the underbody shield and fasteners.Torque
: 71 lb.in (8 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 16.
If equipped, install the underbody shield and fasteners.Torque
: 30 lb.ft (40 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 17.
Connect the battery ground cable. Refer to: Battery Disconnect and Connect
.
- 18.
Start the engine and check for exhaust leaks.
