Exhaust Manifold LH: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2.

Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

3.

Remove the following items:
- Refer to: AIR CLEANER OUTLET PIPE .
- Refer to: AIR CLEANER .
- LH wheel and tire. Refer to: Wheel and Tire .
- LH fender splash shield. Refer to: Fender Splash Shield .

4.

If equipped, remove the fasteners and the underbody shield.

Courtesy of FORD MOTOR COMPANY

5.

If equipped, remove the bolts and the skid plate.

Courtesy of FORD MOTOR COMPANY

6.

If equipped, remove the fasteners and the underbody shield.

Courtesy of FORD MOTOR COMPANY

7.

Remove the bolts and the LH exhaust manifold heat shield.

Courtesy of FORD MOTOR COMPANY

8.

Remove and discard the catalytic converter-to-LH exhaust manifold nuts.

Courtesy of FORD MOTOR COMPANY

9.
1. 1.

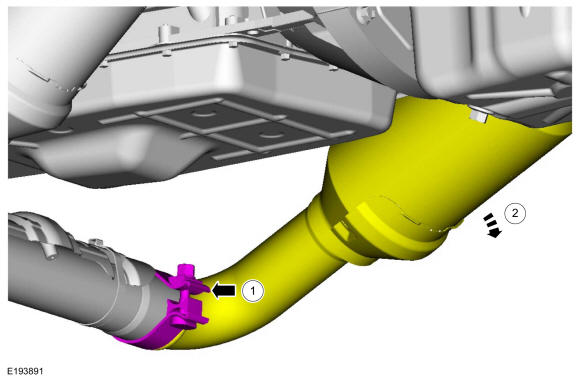

  Loosen the LH catalytic converter-to- RH catalytic converter Torca® clamp.
1. 2.

  Lower the catalytic converter to disengage the catalytic converter flange from the LH exhaust manifold studs.
- Clean the catalytic converter-to-manifold mating surface.

Courtesy of FORD MOTOR COMPANY

10.

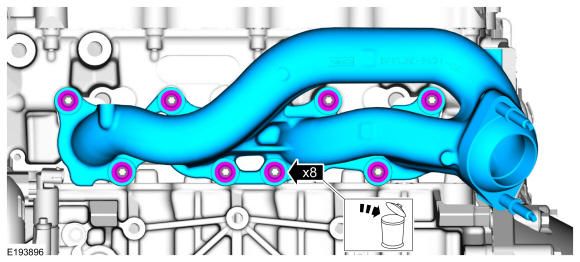

Remove and discard the nuts.
1. 1.

  Remove the exhaust manifold.
1. 2.

  Clean and inspect the exhaust manifold. Refer to: Exhaust Manifold Cleaning and Inspection .

Courtesy of FORD MOTOR COMPANY

11.

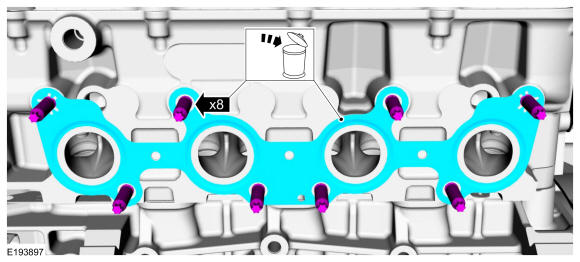

Remove and discard the gasket and studs.

Courtesy of FORD MOTOR COMPANY
