Exhaust Manifold LH: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

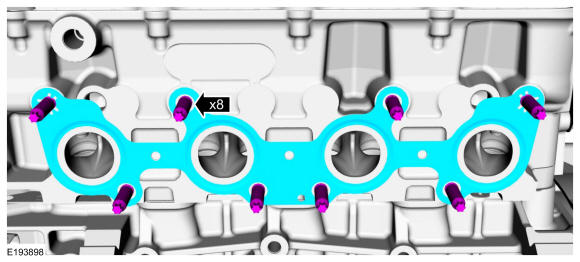

Install new studs and new gasket.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

2.

Install the exhaust manifold.
- Install the new nuts.
  Torque:

  Stage 1: 18 lb.ft (24 Nm)

  Stage 2: 24 lb.ft (32 Nm)

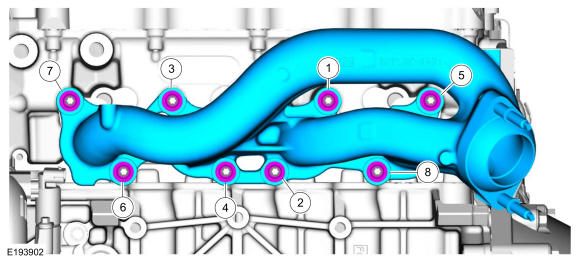

Fig 1: LH Exhaust Manifold Tightening Sequence

Courtesy of FORD MOTOR COMPANY

3.

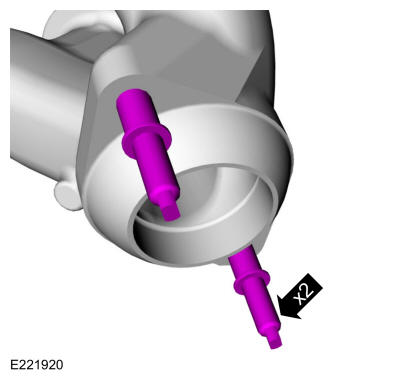

NOTE: Some replacement exhaust manifolds do not come with studs.

If necessary, install new studs.

Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

4.

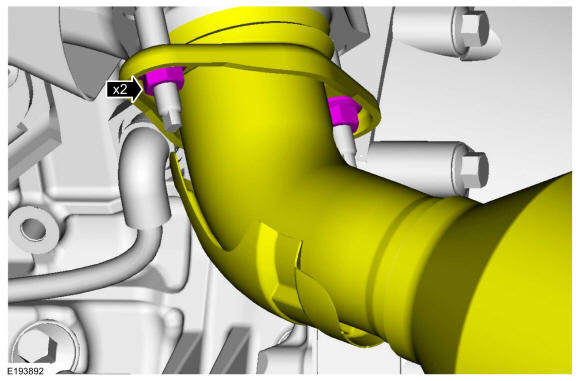

Position the LH catalytic converter onto the exhaust manifold and loosely install the new nuts.

Courtesy of FORD MOTOR COMPANY

5.

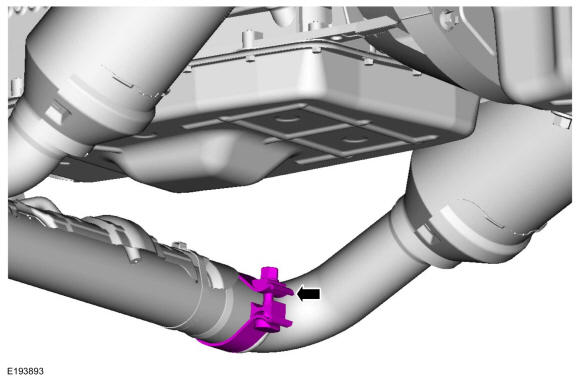

Tighten the Torca® clamp.
Torque

: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

6.

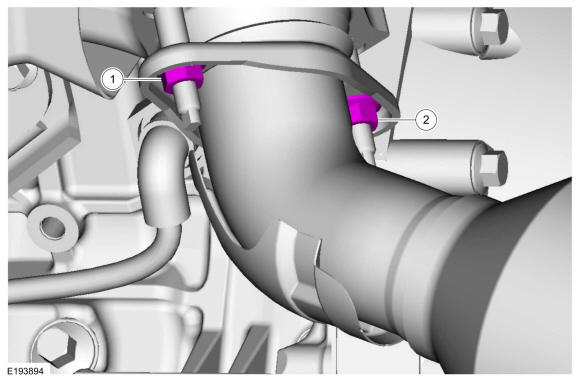

Tighten the nuts.
Torque:

Outer catalytic converter-to-exhaust manifold nut : 30 lb.ft (40 Nm)

Inner catalytic converter-to-exhaust manifold nut : 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

7.

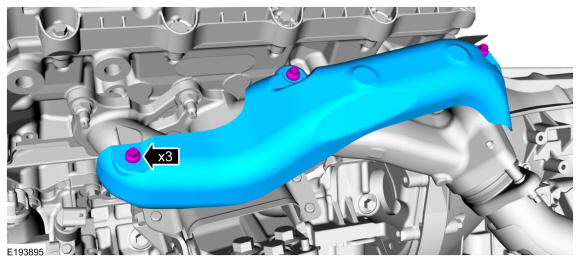

Install the heat shield and bolts.
Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

8.

If equipped, install the skid plate and bolts.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

9.

If equipped, install the underbody shield and fasteners.
Torque

: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

10.

If equipped, install the underbody shield and fasteners.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

11.

Install the following items:
- LH fender splash shield. Refer to: Fender Splash Shield .
- LH wheel and tire. Refer to: Wheel and Tire .
- Refer to: AIR CLEANER .
- Refer to: AIR CLEANER OUTLET PIPE .

12.

Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

13.

Start the engine and check for exhaust leaks.
