Engine Mount RH: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

    With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

  1. 2.

    NOTE: RH shown in illustration, LH similar.

    Index-mark the hood hinge location to aid in hood installation.

GFD39294Courtesy of FORD MOTOR COMPANY

  1. 3.

    Remove the nuts and the hood.
GFD39295Courtesy of FORD MOTOR COMPANY

  1. 4.

    NOTE: LH shown in illustration, RH similar.

    1. 1.

      Release the clip.

    1. 2.

      Detach and position the hood shock aside.
GFD40123Courtesy of FORD MOTOR COMPANY

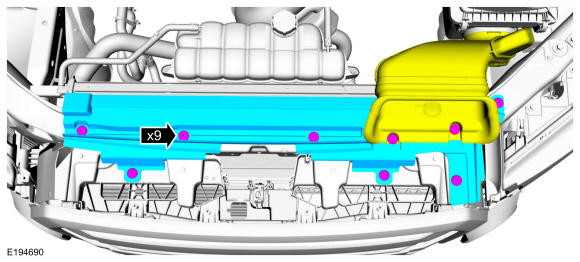

  1. 5.

    Remove the retainers and the radiator top shield.
GFD40459Courtesy of FORD MOTOR COMPANY

  1. 6.

    If equipped, remove the fasteners and the underbody shield.
GFD38415Courtesy of FORD MOTOR COMPANY

  1. 7.

    If equipped, remove the bolts and the skid plate.
GFD39149Courtesy of FORD MOTOR COMPANY

  1. 8.

    If equipped, remove the fasteners and the underbody shield.
GFD39150Courtesy of FORD MOTOR COMPANY

  1. 9.

    Remove the A/C compressor. Refer to: Air Conditioning (A/C) Compressor - 5.0L 32V Ti-VCT .

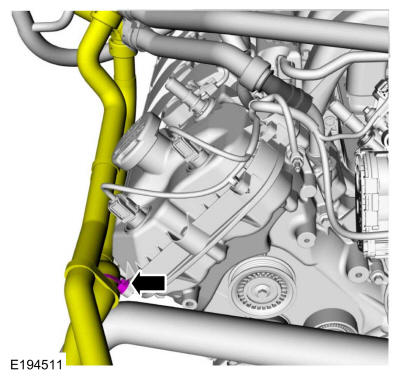

  1. 10.

    Detach the heater hose retainer.
GFD40460Courtesy of FORD MOTOR COMPANY

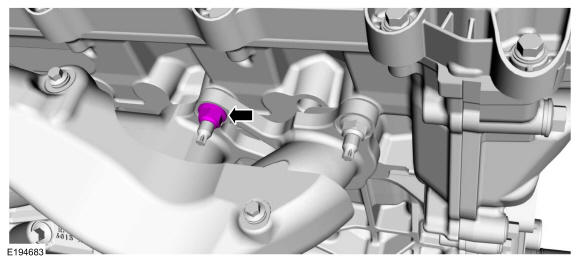

  1. 11.

    Remove the RH exhaust manifold nut.
GFD40461Courtesy of FORD MOTOR COMPANY

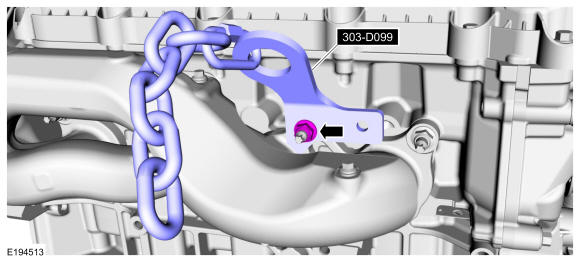

  1. 12.

    Install the special tool, the exhaust manifold nut and a length of chain.

    Use Special Service Tool: 303-D099 (D94T-6000-C) Lifting Bracket, Engine.

GFD40462Courtesy of FORD MOTOR COMPANY

  1. 13.

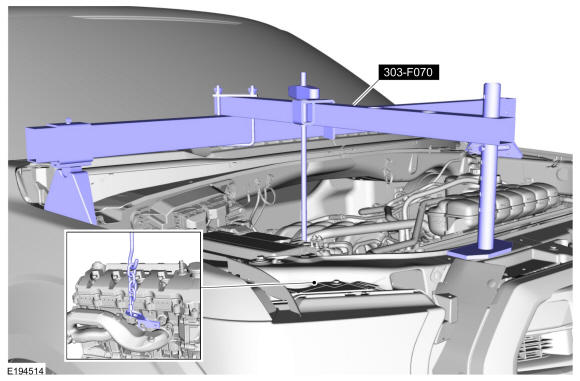

    1. 1.

      Install Special Service Tool: 303-F070 Support Bar, Engine.

    1. 2.

      Attach the chain installed in the previous step to the hook on the special tool.
GFD40463Courtesy of FORD MOTOR COMPANY
GFD39160Courtesy of FORD MOTOR COMPANY

  1. 16.

    Remove and discard the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolts and separate.
    • Clean and inspect the mating surfaces.
GFD39151Courtesy of FORD MOTOR COMPANY

  1. 17.

    NOTE: Only use hand tools when removing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Loosen the transmission mount-to-crossmember nuts.

GFD39152Courtesy of FORD MOTOR COMPANY

  1. 18.

    NOTE: Only use hand tools when loosening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Remove and discard the LH engine mount through bolt.

GFD39161Courtesy of FORD MOTOR COMPANY

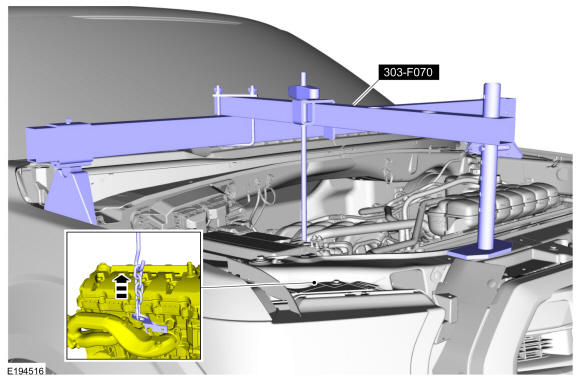

  1. 19.

    Using the special tool, raise the RH side of the engine 50 mm (2 in).

    Use Special Service Tool: 303-F070 Support Bar, Engine.

GFD40464Courtesy of FORD MOTOR COMPANY

  1. 20.

    Remove and discard the RH engine mount bracket-to-engine bolts.

    1. 1.

      Remove the RH engine mount and bracket as an assembly.

    1. 2.

      Clean the engine mount bracket-to-cylinder block and engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.
GFD40465Courtesy of FORD MOTOR COMPANY
