Engine Mount RH: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

NOTE: If a new RH engine mount is installed, remove the 2 studs prior to positioning the assembly in the vehicle.

Install the RH engine mount and the new bolts.

Torque

: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY

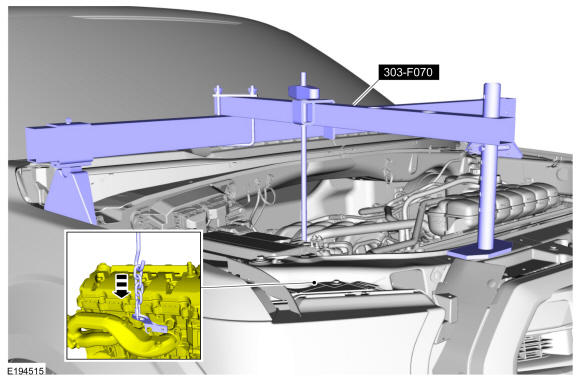

2.

Using the special tool, lower the engine to the installed position.
Use Special Service Tool: 303-F070 Support Bar, Engine.

Courtesy of FORD MOTOR COMPANY

3.

NOTE: Only use hand tools when installing the engine mount stud bolts or damage to the engine mount can occur.

Install the new RH engine mount stud bolts.

Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

4.

NOTE: Only use hand tools when installing the engine mount nuts or damage to the engine mount can occur.

Install the new RH engine mount nuts.

Torque

: 111 lb.ft (150 Nm)

Courtesy of FORD MOTOR COMPANY

5.

NOTE: Only use hand tools when tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

Install the new LH engine mount through bolt.

Torque

: 258 lb.ft (350 Nm)

Courtesy of FORD MOTOR COMPANY

6.

NOTE: Only use hand tools when installing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

Tighten the transmission mount-to-crossmember nuts.

Torque

: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

7.
- Position the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe and install the new bolts.
- Tighten the inner exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.
  Torque

  : 46 lb.ft (63 Nm)
- Tighten the outer exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.
  Torque

  : 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY

8.

Install the following items:
- If equipped. Refer to: Front Driveshaft .
- Refer to: STARTER MOTOR .

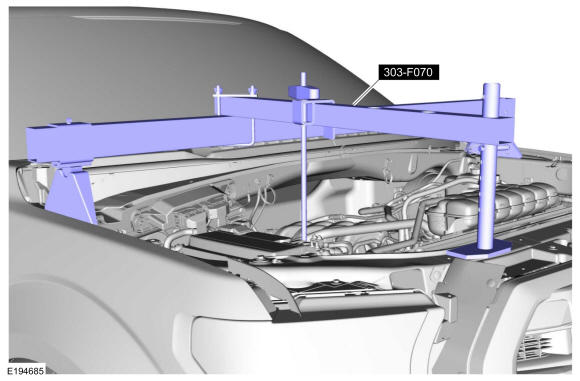

9.

Remove Special Service Tool: 303-F070 Support Bar, Engine.

Courtesy of FORD MOTOR COMPANY

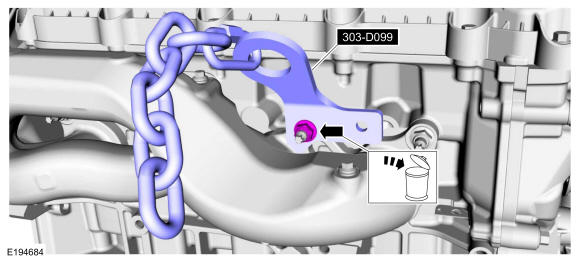

10.

Remove and discard the exhaust manifold nut.
Remove Special Service Tool: 303-D099 (D94T-6000-C) Lifting Bracket, Engine.

Courtesy of FORD MOTOR COMPANY

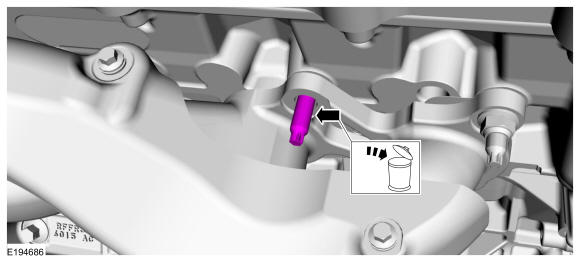

11.

Remove and discard the exhaust manifold stud.

Courtesy of FORD MOTOR COMPANY

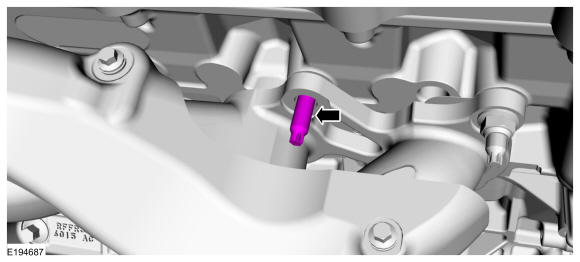

12.

Install a new exhaust manifold stud.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

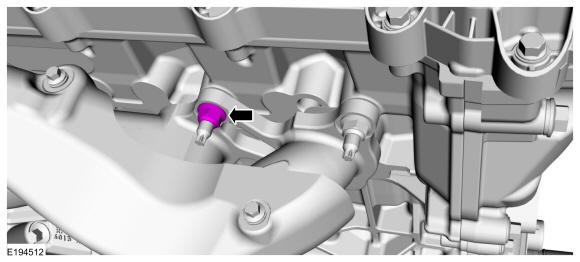

13.

Install a new exhaust manifold nut.
Torque:

Stage 1: 18 lb.ft (24 Nm)

Stage 2: 24 lb.ft (32 Nm)

Courtesy of FORD MOTOR COMPANY

14.

Attach the heater hose retainer.

Courtesy of FORD MOTOR COMPANY

15.

Install the A/C compressor. Refer to: Air Conditioning (A/C) Compressor - 5.0L 32V Ti-VCT .

16.

If equipped, install the skid plate and bolts.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

17.

If equipped, install the underbody shield and fasteners.
Torque

: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

18.

If equipped, install the underbody shield and fasteners.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

19.

Install the radiator top shield and fasteners.

Courtesy of FORD MOTOR COMPANY

20.

NOTE: LH shown in illustration, RH similar.
1. 1.

  Position the hood shock and attach.
1. 2.

  Install the clip.

Courtesy of FORD MOTOR COMPANY

21.

Position the hood and install the nuts.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

22.

Start engine and check exhaust system for leaks.
