Engine Mount LH: Removal

4x2/4x4

1. 1.

   With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

1. 2.


   NOTE: RH shown in illustration, LH similar.

   Index-mark the hood hinge location to aid in hood installation.

Courtesy of FORD MOTOR COMPANY

1. 3.

   Remove the nuts and the hood.

Courtesy of FORD MOTOR COMPANY

1. 4.


   NOTE: LH shown in illustration, RH similar.

   1. 1.

      Release the clip.

   1. 2.

      Detach and position the hood shock aside.

Courtesy of FORD MOTOR COMPANY

1. 5.


   NOTE: It is not necessary to separate the air cleaner outlet pipe and the air cleaner, the 2 components can be removed as an assembly.

   Remove the following items:

   • Refer to: AIR CLEANER OUTLET PIPE .
   • Refer to: AIR CLEANER .

1. 6.

   Remove the retainers and the radiator top shield.

Courtesy of FORD MOTOR COMPANY

1. 7.


   NOTE: It may be necessary to install washers between the Engine Lifting Bracket and the cylinder head to prevent the Engine Lifting Bracket from contacting the valve cover while supporting the engine.
   • Install Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.
   • Attach a length of chain and a connecting link to the special tool.

Courtesy of FORD MOTOR COMPANY

1. 8.

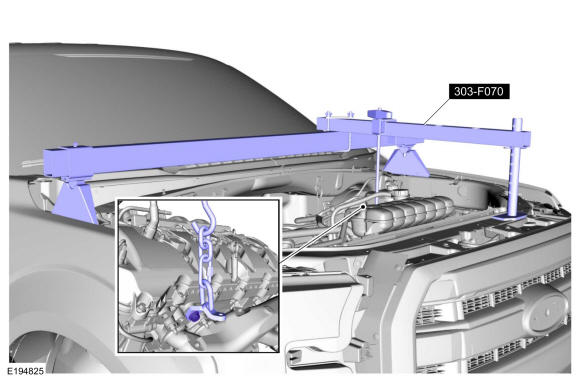

   • Install Special Service Tool: 303-F070 Support Bar, Engine.
   • Attach the chain installed in the previous step to the hook on the special tool.

Courtesy of FORD MOTOR COMPANY

1. 9.

   If equipped, remove the fasteners and the underbody shield.

Courtesy of FORD MOTOR COMPANY

1. 10.

   If equipped, remove the bolts and the skid plate.

Courtesy of FORD MOTOR COMPANY

1. 11.

   If equipped, remove the fasteners and the underbody shield.

Courtesy of FORD MOTOR COMPANY

1. 12.

   Remove and discard the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolts and separate.
   • Clean and inspect the mating surfaces.

Courtesy of FORD MOTOR COMPANY

1. 13.


   NOTE: Only use hand tools when removing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

   Loosen the transmission mount-to-crossmember nuts.

Courtesy of FORD MOTOR COMPANY

1. 14.


   NOTE: Only use hand tools when removing the engine mount nuts, stud bolts or damage to the engine mount can occur.

   Remove and discard the RH engine mount nuts and stud bolts.

Courtesy of FORD MOTOR COMPANY

4x4

1. 15.

   Remove the front drive shaft. Refer to: Front Driveshaft .

4x2/4x4

1. 16.


   NOTE: Only use hand tools when loosening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

   Remove and discard the LH engine mount through bolt.

Courtesy of FORD MOTOR COMPANY

1. 17.

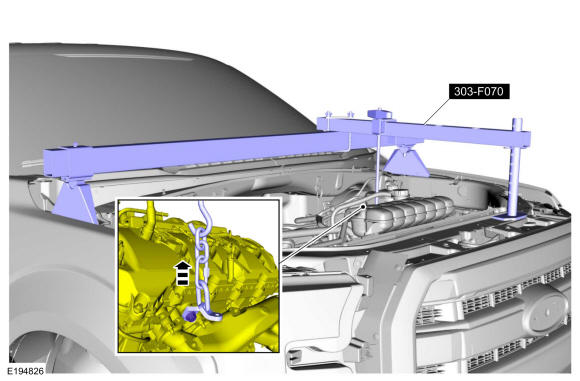

   Using the special tool, raise the LH side of the engine 50 mm (2 in).

Courtesy of FORD MOTOR COMPANY

4x4

1. 18.

   Using an adjustable stand, support the front axle.

   Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

1. 19.

   Remove the upper front axle carrier mounting bushing bolt.

Courtesy of FORD MOTOR COMPANY

1. 20.

   Remove the axle shaft housing carrier bushing bolt.

Courtesy of FORD MOTOR COMPANY

1. 21.

   Remove the lower front axle carrier mounting bushing bolt.

Courtesy of FORD MOTOR COMPANY

1. 22.

   Using an adjustable stand, lower the axle to allow clearance for the oil pan to be removed.

   Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

4x2/4x4

1. 23.


   NOTE: Only use hand tools when removing or installing the engine mount-to-frame bolts or damage to the engine mount-to-frame nut plate can occur.

   Remove and discard the LH engine mount-to-frame bolts.

Courtesy of FORD MOTOR COMPANY

1. 24.

   Remove the LH engine mount.

Courtesy of FORD MOTOR COMPANY

1. 25.



   1. 1.

      Inspect the engine mount-to-frame nut plate for thread damage.

   1. 2.

      If the nut plate is damaged, remove and discard the engine mount-to-frame nut plate.

Courtesy of FORD MOTOR COMPANY

1. 26.

   Remove the bolts and the LH engine mount-to-cylinder block bracket.
   • Discard the bolts.
   • Clean the engine mount-to-cylinder block and engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.

Courtesy of FORD MOTOR COMPANY
