Engine Mount LH: Installation

4x2/4x4

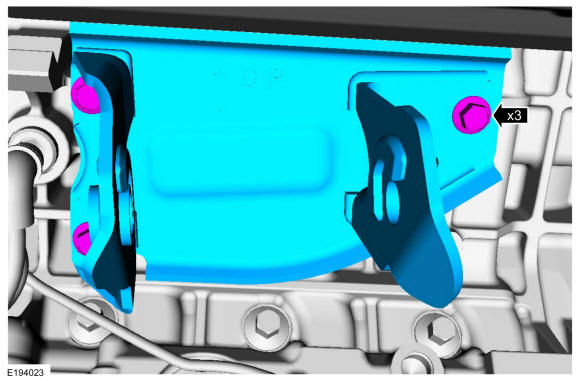

1. 1.

   Install the LH engine mount-to-cylinder block bracket and the bolts.

   Torque

   : 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY

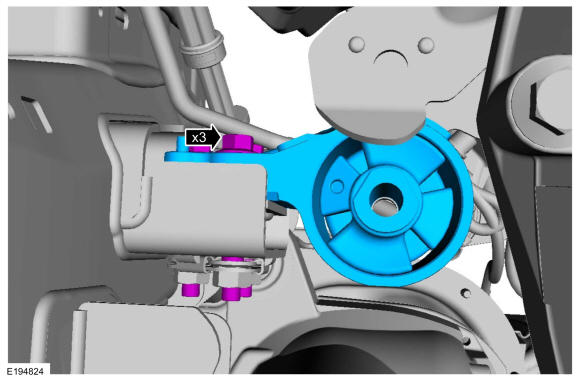

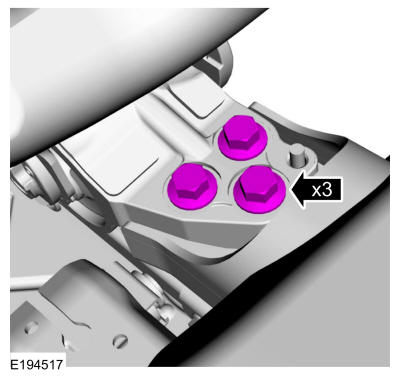

1. 2.

   Position the LH engine mount and hand start the 3 new engine mount-to-frame bolts.
   • Do not tighten at this time.

Courtesy of FORD MOTOR COMPANY

4x4

1. 3.

   Using an adjustable stand, raise the front axle carrier into position.

   Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

1. 4.

   Install the lower front axle carrier mounting bushing bolt.

   Torque

   : 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

1. 5.

   Install the axle shaft housing carrier bushing bolt.

   Torque

   : 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

1. 6.

   Install the upper front axle carrier mounting bushing bolt.

   Torque

   : 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

1. 7.

   Remove the adjustable stand.

   Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

4x2/4x4

1. 8.

   Tighten the LH engine mount bolts

   Torque

   : 129 lb.ft (175 Nm)

Courtesy of FORD MOTOR COMPANY

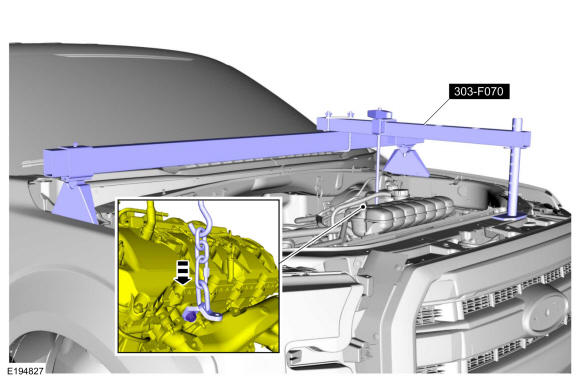

1. 9.

   Using the special tool, lower the engine to the installed position.

   Use Special Service Tool:303-F070 Support Bar, Engine.

Courtesy of FORD MOTOR COMPANY

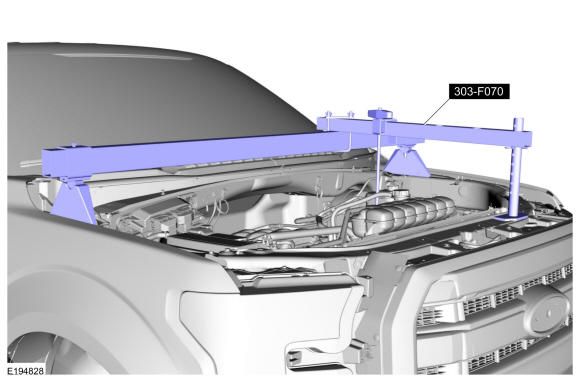

1. 10.

   Remove Special Service Tool: 303-F070 Support Bar, Engine.

Courtesy of FORD MOTOR COMPANY

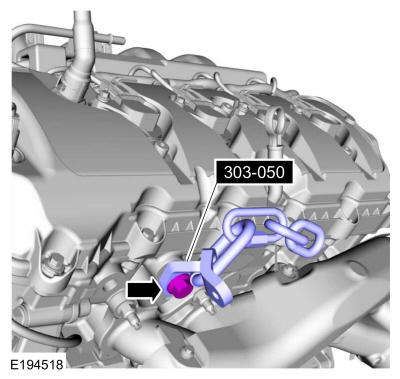

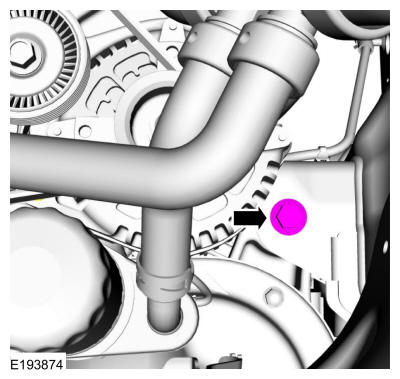

1. 11.

   Remove the special tool and length of chain.

   Use Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

Courtesy of FORD MOTOR COMPANY

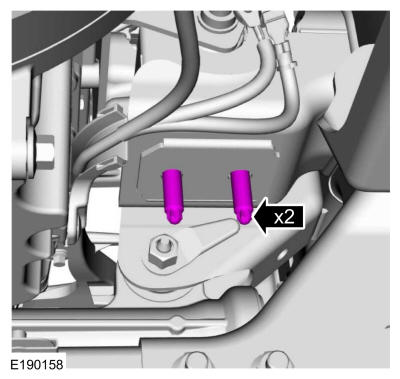

1. 12.


   NOTE: Only use hand tools when installing the engine mount stud bolts or damage to the engine mount can occur.

   Install the new RH engine mount stud bolts.

   Torque

   : 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

1. 13.

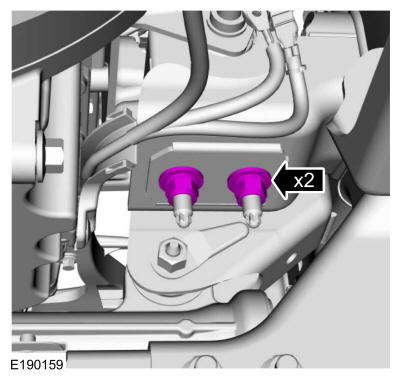

   NOTE: Only use hand tools when installing the engine mount nuts or damage to the engine mount can occur.

   Install the new RH engine mount nuts.

   Torque

   : 111 lb.ft (150 Nm)

Courtesy of FORD MOTOR COMPANY

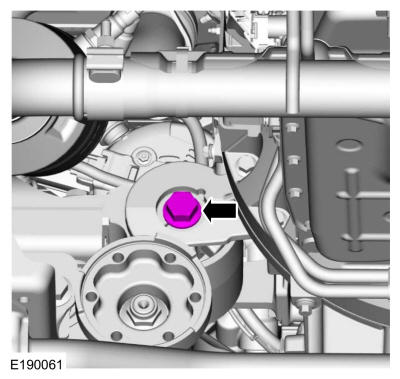

1. 14.


   NOTE: Only use hand tools when tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

   Install the new LH engine mount through bolt.

   Torque

   : 258 lb.ft (350 Nm)

Courtesy of FORD MOTOR COMPANY

4x4

1. 15.

   Install the front drive shaft. Refer to: Front Driveshaft .

4x2/4x4

1. 16.


   NOTE: Only use hand tools when installing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

   Tighten the transmission mount-to-crossmember nuts.

   Torque

   : 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

1. 17.


   • Position the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe and install the new bolts.
   • Tighten the inner exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.

     Torque

     : 46 lb.ft (63 Nm)

   • Tighten the outer exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.

     Torque

     : 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY

1. 18.

   If equipped, install the skid plate and bolts.

   Torque

   : 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

1. 19.

   If equipped, install the underbody shield and fasteners.

   Torque

   : 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

1. 20.

   If equipped, install the underbody shield and fasteners.

   Torque

   : 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

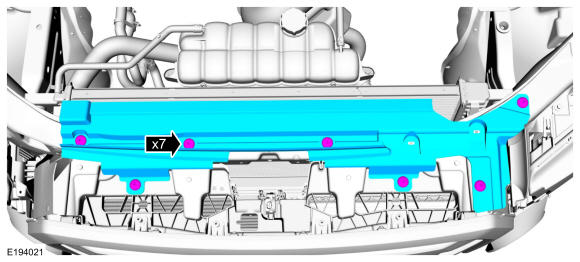

1. 21.

   Install the radiator top shield and the fasteners.

Courtesy of FORD MOTOR COMPANY

1. 22.


   NOTE: It is not necessary to separate the air cleaner outlet pipe and the air cleaner, the 2 components can be installed as an assembly.

   Install the following items:

   • Refer to: AIR CLEANER .
   • Refer to: AIR CLEANER OUTLET PIPE .

1. 23.


   NOTE: LH shown in illustration, RH similar.

   1. 1.

      Position the hood shock and attach.

   1. 2.

      Install the clip.

Courtesy of FORD MOTOR COMPANY

1. 24.

   Position the hood and install the nuts.

   Torque

   : 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

1. 25.

   Start engine and check exhaust system for leaks.
