Engine Front Cover: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2.

Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

3.

Drain the engine cooling system. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .

4.

Remove the following items:
- Refer to: DEGAS BOTTLE .
- Refer to: Valve Cover LH .
- Refer to: Valve Cover RH .

5.

Loosen the coolant pump pulley bolts.

GFD40418

Courtesy of FORD MOTOR COMPANY

6.

Remove the following items:
- Refer to: ACCESSORY DRIVE BELT .
- Refer to: AIR CONDITIONING (A/C) COMPRESSOR BELT .
- Refer to: ACCESSORY DRIVE BELT TENSIONER .
- Refer to: AIR CONDITIONING (A C) COMPRESSOR BELT TENSIONER .
- Refer to: Crankshaft Front Seal .

7.

Disconnect the lower radiator hose from the thermostat housing assembly.

GFD40419

Courtesy of FORD MOTOR COMPANY

8.

Remove the thermostat housing bolts.

GFD40420

Courtesy of FORD MOTOR COMPANY

9.
- Release the clamp and remove the degas bottle coolant hose.
- Release the clamp and remove the upper radiator hose T-connector/thermostat housing assembly.

GFD40421

Courtesy of FORD MOTOR COMPANY

10.

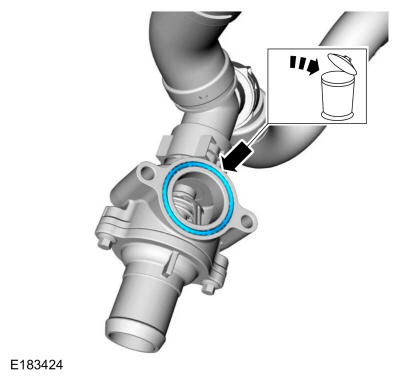

Remove and discard the thermostat housing O-ring seal.

GFD40422

Courtesy of FORD MOTOR COMPANY

11.

Remove the bolts and the coolant pump pulley.

GFD40423

Courtesy of FORD MOTOR COMPANY

12.

Remove the bolts and the coolant pump.

GFD40424

Courtesy of FORD MOTOR COMPANY

13.

Remove and discard the coolant pump O-ring seal.

GFD40425

Courtesy of FORD MOTOR COMPANY

14.

Remove the throttle body. Refer to: THROTTLE BODY .

15.

Detach the wiring harness retainers from the engine front cover and stud bolt.

GFD40426

Courtesy of FORD MOTOR COMPANY

16.
- Disconnect the EVAP canister purge valve.
- Remove the nut and ground wire.

GFD40427

Courtesy of FORD MOTOR COMPANY

17.

Remove the bolts and position the generator aside.

GFD40428

Courtesy of FORD MOTOR COMPANY

18.

If equipped, remove the bolts and the skid plate.

GFD38662

Courtesy of FORD MOTOR COMPANY

19.

If equipped, remove the fasteners and the underbody shield.

GFD38663

Courtesy of FORD MOTOR COMPANY

20.

If equipped, remove the fasteners and the underbody shield.

GFD38415

Courtesy of FORD MOTOR COMPANY

21.

If equipped, remove the bolts and the skid plate.

GFD39149

Courtesy of FORD MOTOR COMPANY

22.

Remove the nut and position the transmission cooler tubes aside.

GFD40429

Courtesy of FORD MOTOR COMPANY

23.
1. 1.

  Depress the tab and detach the wiring harness retainer from the oil pan.
1. 2.

  Slide the wiring harness retainer off of the engine front cover stud bolt.
1. 3.

  Remove the nut.
1. 4.

  Detach the wiring harness retainer off of the oil pan stud bolt.

GFD40430

Courtesy of FORD MOTOR COMPANY

24.

Remove the bolts and stud bolts.

GFD40431

Courtesy of FORD MOTOR COMPANY

25.

Remove the engine front cover-to-oil filter adapter bolt.

GFD40432

Courtesy of FORD MOTOR COMPANY

26.

Using a 10 mm Hex Bit loosen the engine front cover-to-oil filter adapter jack screw.

GFD40433

Courtesy of FORD MOTOR COMPANY

27.

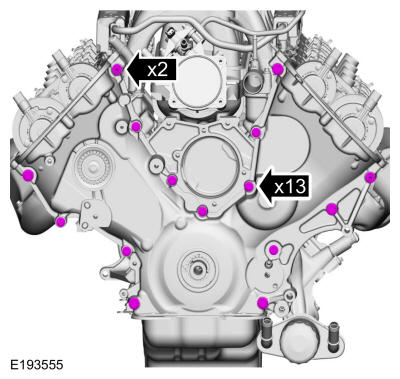

Remove the bolts and stud bolts.

GFD40434

Courtesy of FORD MOTOR COMPANY

28.

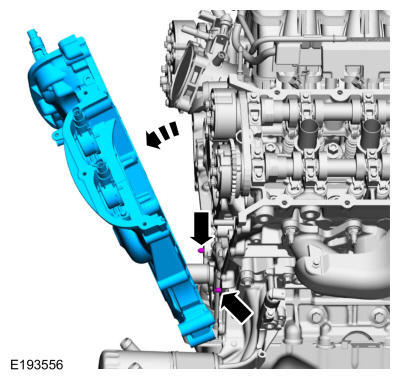

NOTE: Timing drive components removed from view for clarity.

Remove the engine front cover from the front cover-to-cylinder block dowels.

GFD40435

Courtesy of FORD MOTOR COMPANY

29.

Remove and discard the gaskets.

GFD40436

Courtesy of FORD MOTOR COMPANY

30.

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

Clean and inspect the mating surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

Use the General Equipment: Plastic Scraper

Material

: Motorcraft® Silicone Gasket Remover / ZC-30-A

Material

: Metal Brake Parts Cleaner / PM-4-A, PM-4-B

Material

: Motorcraft® Metal Surface Prep / ZC-31-B

GFD40437

Courtesy of FORD MOTOR COMPANY
