Engine Front Cover: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

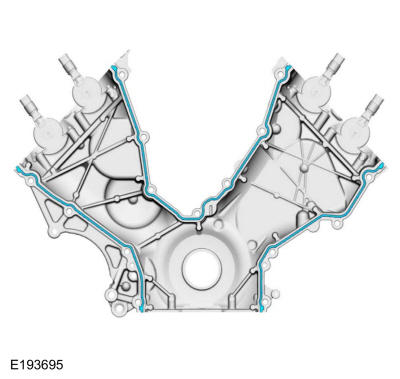

    Install new gaskets on the engine front cover.
GFD40438Courtesy of FORD MOTOR COMPANY

  1. 2.

    NOTE: The VCT variable force solenoid pins must be fully depressed to avoid interference with the VCT valve tips when installing the engine front cover. Failure to follow these instructions can result in damage to the engine.
    NOTE: RH shown in illustration, LH similar.

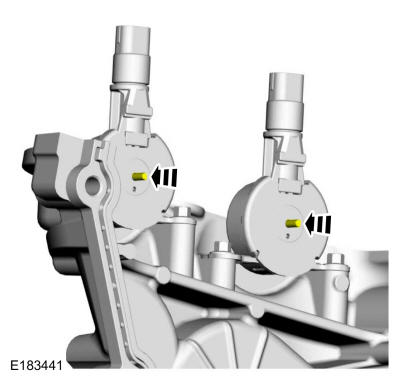

    Fully depress the VCT variable force solenoid pins.

GFD40439Courtesy of FORD MOTOR COMPANY

  1. 3.

    NOTE: The engine front cover must be installed and all fasteners final tightened within 5 minutes of applying the sealer. If this cannot be accomplished, install the engine front cover and tighten fasteners 6, 7, 8, 9, 10 and 11 to 8 Nm (71 lb-in) within 5 minutes of applying the sealer. All of the fasteners must then be final tightened within 1 hour of applying the sealer. If this time limit is exceeded, all sealant must be removed and the sealing area cleaned. Failure to follow this procedure can cause future oil leakage.

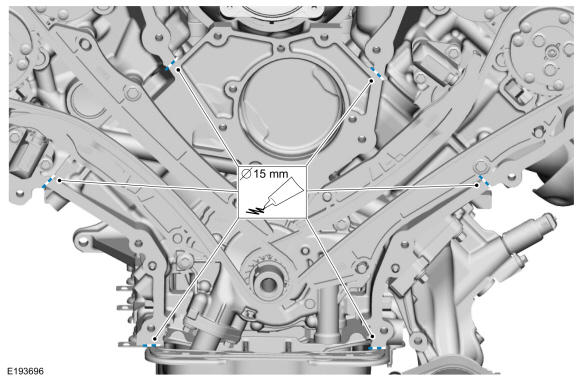

    Apply a 15 mm (0.59 in) diameter drop of silicone gasket and sealant to the cylinder head-to-cylinder block joints and the oil pan-to-cylinder block joints.

    Material

    : Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

GFD40440Courtesy of FORD MOTOR COMPANY

  1. 4.

    NOTE: Make sure that the engine front cover gaskets are in place on the engine front cover before installation.
    NOTE: Timing drive components removed from view for clarity.

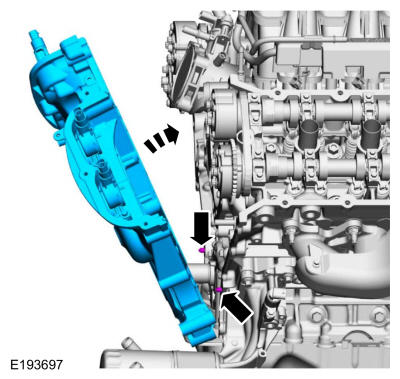

    Position the engine front cover onto the dowels.

GFD40441Courtesy of FORD MOTOR COMPANY

  1. 5.

    NOTE: The engine front cover must be installed and all fasteners final tightened within 5 minutes of applying the sealer. If this cannot be accomplished, install the engine front cover and tighten fasteners 6, 7, 8, 9, 10 and 11 to 8 Nm (71 lb-in) within 5 minutes of applying the sealer. All of the fasteners must then be final tightened within 1 hour of applying the sealer. If this time limit is exceeded, all sealant must be removed and the sealing area cleaned. Failure to follow this procedure can cause future oil leakage.

    Install the bolts and stud bolts.

    Torque:

    Stage 1: Fasteners 1-15 : 18 lb.ft (25 Nm)

    Stage 2: Fasteners 16-19 : 89 lb.in (10 Nm)

    Stage 3: Fasteners 1-15 : 60°

    Stage 4: Fasteners 16-19 : 45°

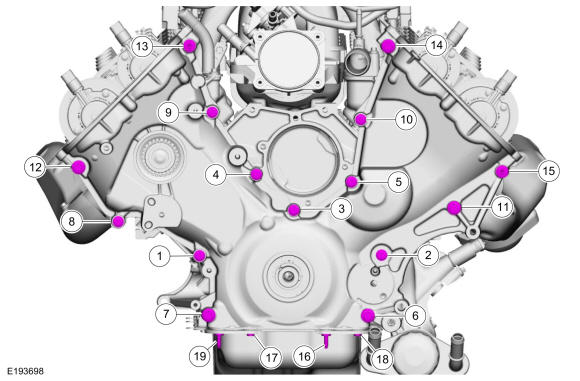

Fig 1: Engine Front Cover Tightening Sequence
GFD40442Courtesy of FORD MOTOR COMPANY

  1. 6.

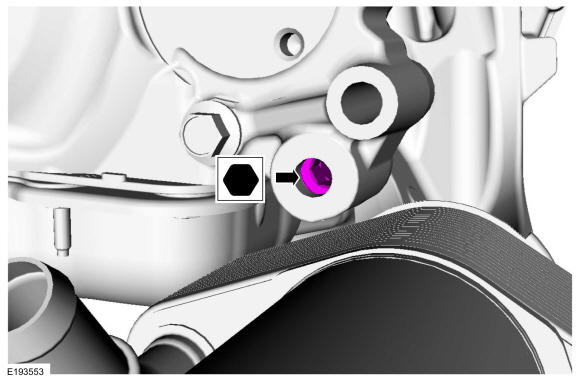

    Using a 10 mm Hex Bit, turn the engine front cover-to-oil filter adapter jack screw into contact with the oil filter adapter.

    Torque

    : 44 lb.in (5 Nm)

GFD40433Courtesy of FORD MOTOR COMPANY

  1. 7.

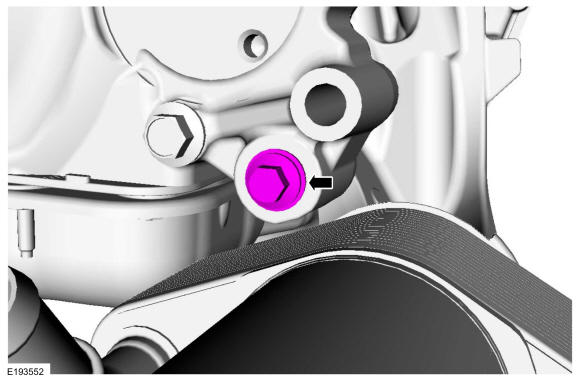

    Install the engine front cover-to-oil filter adapter bolt.

    Torque:

    Stage 1: 18 lb.ft (25 Nm)

    Stage 2: 60°

GFD40432Courtesy of FORD MOTOR COMPANY

  1. 8.

    1. 1.

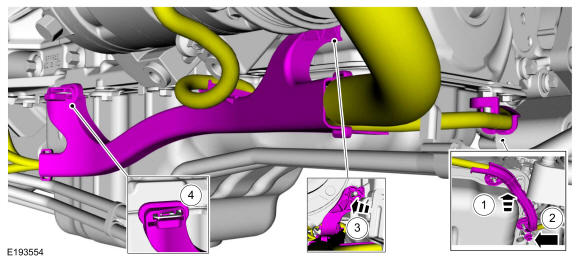

      Attach the wiring harness retainer to the oil pan stud bolt.

    1. 2.

      Install the nut.

      Torque

      : 106 lb.in (12 Nm)

    1. 3.

      Slide the wiring harness retainer onto the engine front cover stud bolt.

    1. 4.

      Attach the wiring harness retainer to the oil pan.
GFD40443Courtesy of FORD MOTOR COMPANY

  1. 9.

    Position the transmission cooler tubes and install the nut.

    Torque

    : 115 lb.in (13 Nm)

GFD40429Courtesy of FORD MOTOR COMPANY

  1. 10.

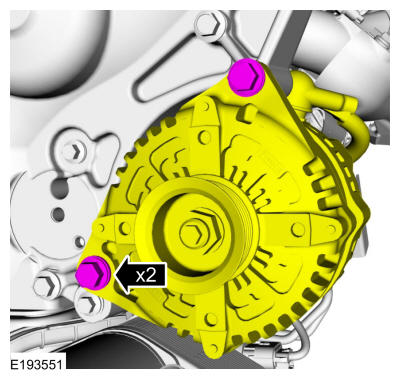

    Install the generator, the bolt and the nut.

    Torque

    : 35 lb.ft (48 Nm)

GFD40428Courtesy of FORD MOTOR COMPANY

  1. 11.

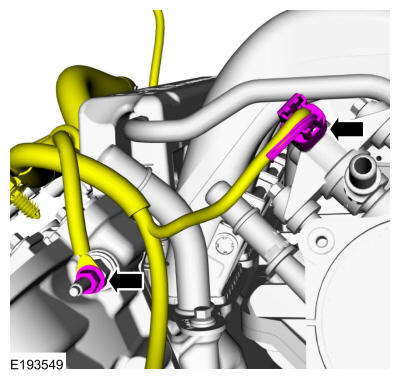

    • Install the ground wire and nut.

      Torque

      : 89 lb.in (10 Nm)

    • Connect the EVAP canister purge valve.
GFD40427Courtesy of FORD MOTOR COMPANY

  1. 12.

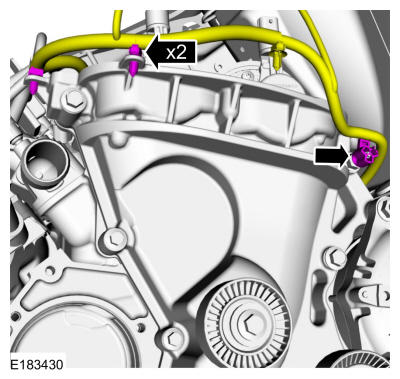

    Attach the wiring harness retainers to the engine front cover and stud bolt.
GFD40426Courtesy of FORD MOTOR COMPANY

  1. 13.

    Install the throttle body. Refer to: THROTTLE BODY .

  1. 14.

    Install a new coolant pump O-ring seal and lubricate with clean engine coolant.

    Material

    : Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

GFD40444Courtesy of FORD MOTOR COMPANY

  1. 15.

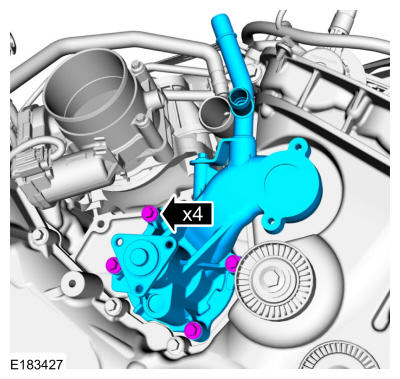

    Install the coolant pump and bolts.

    Torque:

    Stage 1: 177 lb.in (20 Nm)

    Stage 2: 60°

GFD40424Courtesy of FORD MOTOR COMPANY

  1. 16.

    Install the coolant pump pulley and the bolts.
GFD40423Courtesy of FORD MOTOR COMPANY

  1. 17.

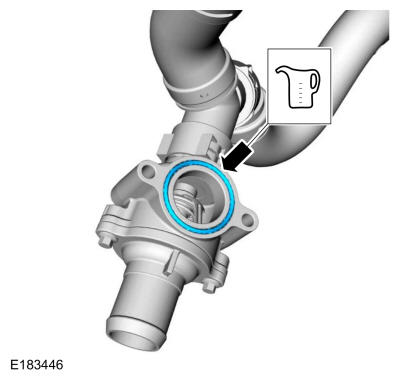

    Install a new thermostat housing O-ring seal and lubricate with clean engine coolant.

    Material

    : Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

GFD40445Courtesy of FORD MOTOR COMPANY

  1. 18.

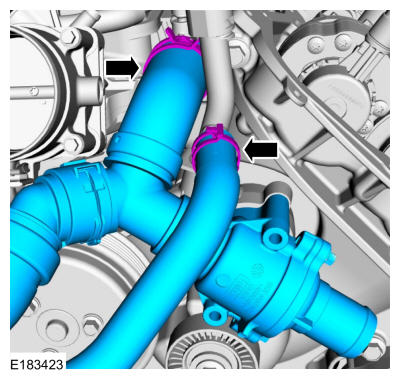

    • Install the upper radiator hose T-connector/thermostat housing assembly and clamp.
    • Install the degas bottle coolant hose and clamp.
GFD40421Courtesy of FORD MOTOR COMPANY

  1. 19.

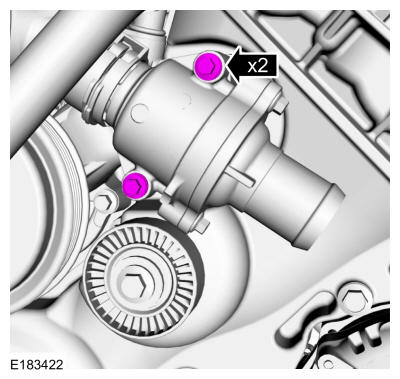

    Install the thermostat housing bolts.

    Torque

    : 89 lb.in (10 Nm)

GFD40420Courtesy of FORD MOTOR COMPANY

  1. 20.

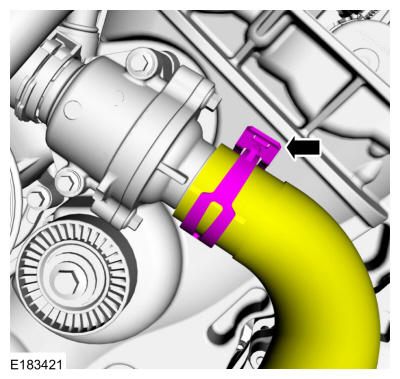

    Connect the lower radiator hose to the thermostat housing assembly.
GFD40419Courtesy of FORD MOTOR COMPANY

  1. 21.

    Install the following items:

  1. 22.

    Torque

    : 18 lb.ft (25 Nm)

GFD40418Courtesy of FORD MOTOR COMPANY

  1. 23.

    Install the following items:

  1. 24.

    • Remove the oil pan drain plug and drain the engine oil.Use the General Equipment: Oil Drain Equipment
    • Install the oil pan drain plug.

      Torque

      : 19 lb.ft (26 Nm)

GFD40408Courtesy of FORD MOTOR COMPANY

  1. 25.

    Remove and discard the engine oil filter.
GFD40409Courtesy of FORD MOTOR COMPANY

  1. 26.

    NOTE: Do not lubricate the O-ring seal.

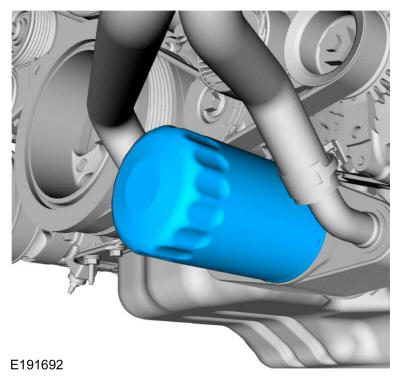

    Install a new oil filter.

    Torque:

    Stage 1: 44 lb.in (5 Nm)

    Stage 2: 180°

GFD40410Courtesy of FORD MOTOR COMPANY

  1. 27.

    If equipped, install the skid plate and bolts.

    Torque

    : 30 lb.ft (40 Nm)

GFD39149Courtesy of FORD MOTOR COMPANY

  1. 28.

    If equipped, install the underbody shield and fasteners.

    Torque

    : 71 lb.in (8 Nm)

GFD38415Courtesy of FORD MOTOR COMPANY

  1. 29.

    If equipped, install the underbody shield and fasteners.

    Torque

    : 30 lb.ft (40 Nm)

GFD38663Courtesy of FORD MOTOR COMPANY

  1. 30.

    If equipped, install the skid plate and bolts.

    Torque

    : 30 lb.ft (40 Nm)

GFD38662Courtesy of FORD MOTOR COMPANY

  1. 31.

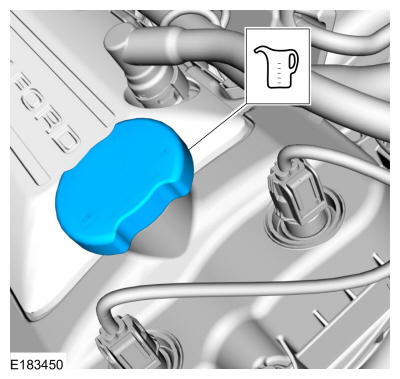

    Fill the engine with clean engine oil. Refer to: Specifications .

    Material

    : Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

GFD40411Courtesy of FORD MOTOR COMPANY

  1. 32.

    Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

  1. 33.

    Fill and bleed the engine cooling system. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .

  1. 34.

    After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
