Cylinder Head RH: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

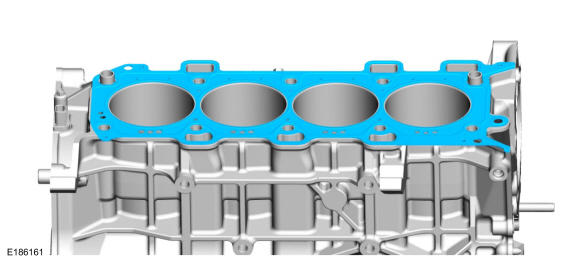

Install the new cylinder head gasket.

Courtesy of FORD MOTOR COMPANY

2.

NOTE: The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.

Install the cylinder head and the new bolts.

Torque:

Stage 1: 18 lb.ft (25 Nm)

Stage 2: 55 lb.ft (75 Nm)

Stage 3: Loosen: 180°

Stage 4: 18 lb.ft (25 Nm)

Stage 5: 26 lb.ft (35 Nm)

Stage 6: 90°

Stage 7: 90°

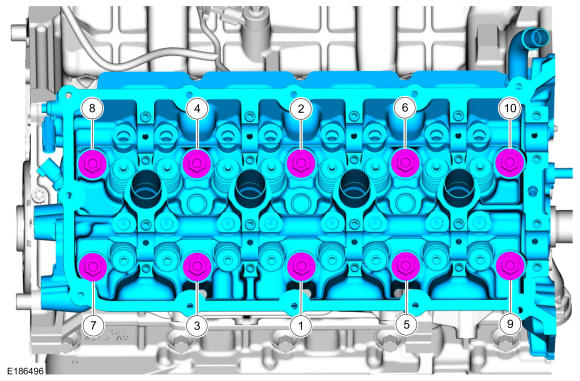

Fig 1: RH Cylinder Head Tightening Sequence

Courtesy of FORD MOTOR COMPANY

3.

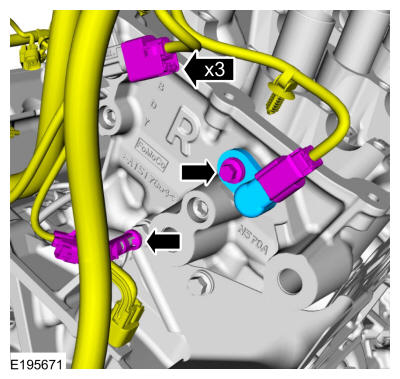

Install the RH exhaust CMP sensor and the bolt
- Torque
  : 89 lb.in (10 Nm)
- Connect the engine wiring harness electrical connectors and attach the wiring harness retainer.

Courtesy of FORD MOTOR COMPANY

4.

Install the following items:
- Refer to: Exhaust Manifold RH .
- Refer to: Camshaft RH .
- Refer to: Intake Manifold .
- Refer to: AIR CLEANER .

5.
- Remove the oil pan drain plug and drain the engine oil.
  Use the General Equipment: Oil Drain Equipment
- Install the oil pan drain plug.
  Torque

  : 19 lb.ft (26 Nm)

Courtesy of FORD MOTOR COMPANY

6.

Remove and discard the engine oil filter.

Courtesy of FORD MOTOR COMPANY

7.

NOTE: Do not lubricate the O-ring seal.

Install a new oil filter.

Torque:

Stage 1: 44 lb.in (5 Nm)

Stage 2: 180°

Courtesy of FORD MOTOR COMPANY

8.

Fill the engine with clean engine oil. Refer to: Specifications .
Material

: Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

Courtesy of FORD MOTOR COMPANY

9.

Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

10.

Fill and bleed the engine cooling system. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .
