Cylinder Head LH: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
- 1.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- 2.
Release the fuel system pressure. Refer to: FUEL SYSTEM PRESSURE RELEASE .
- 3.
Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
- 4.
Drain the engine cooling system. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .
- 10.NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.NOTE: Clean the cylinder head bolt holes in the cylinder block using compressed air. Make sure all coolant, oil or other foreign material is removed.

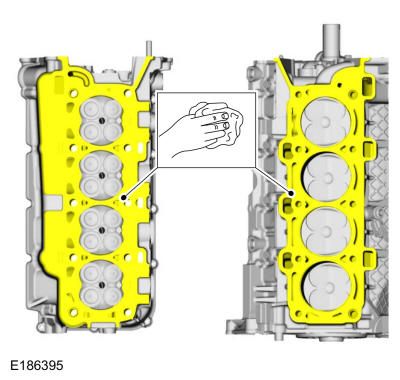

- Clean and inspect the cylinder head-to-cylinder block mating surfaces of both the cylinder head and the cylinder block
- Refer to: Cylinder Head Distortion .
- Refer to: Cylinder Block Distortion .
