Cylinder Head LH: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

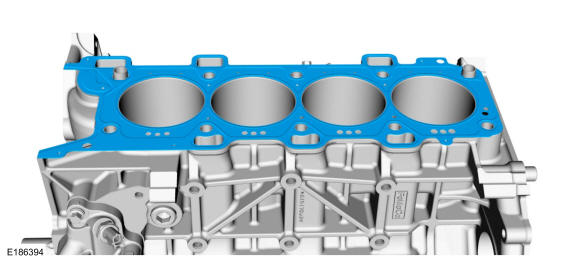

Install the cylinder head gasket.

Courtesy of FORD MOTOR COMPANY

2.

NOTE: The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.

Install the cylinder head and the new bolts.

Torque:

Stage 1: 18 lb.ft (25 Nm)

Stage 2: 55 lb.ft (75 Nm)

Stage 3: Loosen: 180°

Stage 4: 18 lb.ft (25 Nm)

Stage 5: 26 lb.ft (35 Nm)

Stage 6: 90°

Stage 7: 90°

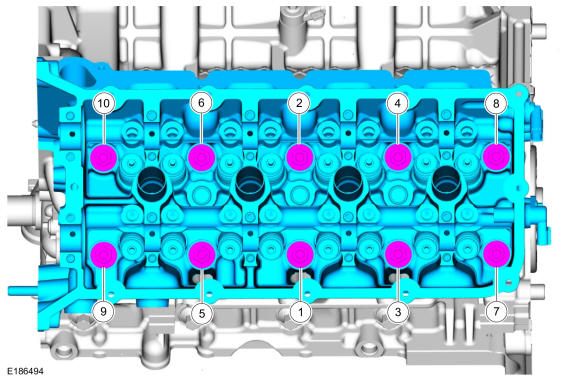

Fig 1: LH Cylinder Head Tightening Sequence

Courtesy of FORD MOTOR COMPANY

3.

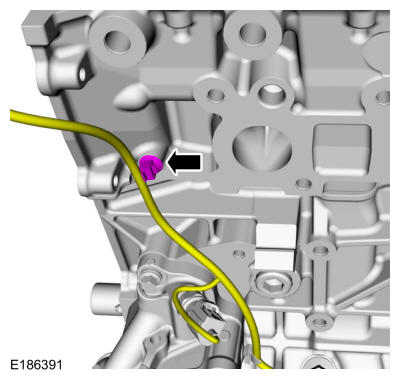

Attach the wiring harness retainer to the cylinder head.

Courtesy of FORD MOTOR COMPANY

4.

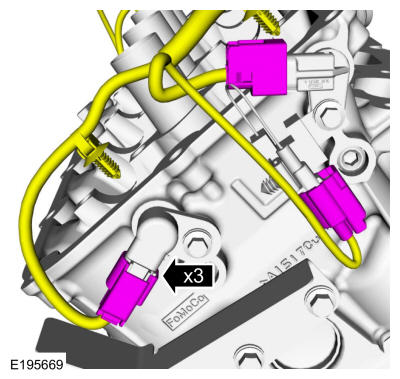

Connect the engine wiring harness electrical connectors.

Courtesy of FORD MOTOR COMPANY

5.

Install the following items:
- Refer to: Exhaust Manifold LH .
- Refer to: Camshaft LH .
- Refer to: Intake Manifold .
- Refer to: AIR CLEANER .

6.
- Remove the oil pan drain plug and drain the engine oil.
  Use the General Equipment: Oil Drain Equipment
- Install the oil pan drain plug.
  Torque

  : 19 lb.ft (26 Nm)

Courtesy of FORD MOTOR COMPANY

7.

Remove and discard the engine oil filter.

Courtesy of FORD MOTOR COMPANY

8.

NOTE: Do not lubricate the O-ring seal.

Install a new oil filter.

Torque:

Stage 1: 44 lb.in (5 Nm)

Stage 2: 180°

Courtesy of FORD MOTOR COMPANY

9.

Fill the engine with clean engine oil. Refer to: Specifications .
Material

: Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

Courtesy of FORD MOTOR COMPANY

10.

Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

11.

Fill and bleed the engine cooling system. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .
