Crankshaft Rear Seal: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the flexplate. Refer to: Flexplate .

2.

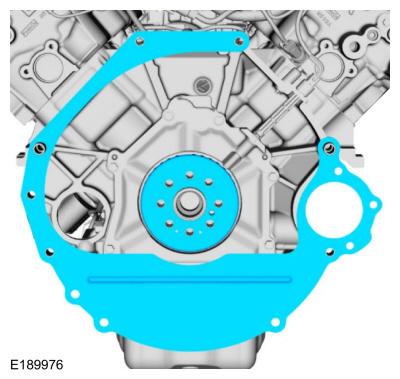

Remove the crankshaft sensor ring and the engine-to-transmission spacer plate.

Courtesy of FORD MOTOR COMPANY

3.

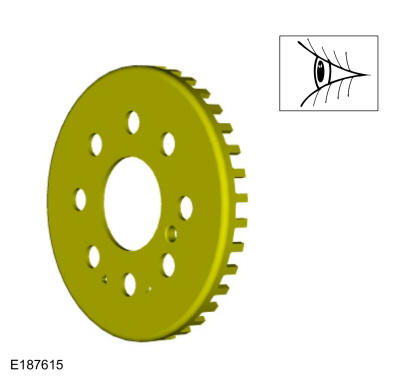

Inspect the crankshaft sensor ring for damage. If the crankshaft sensor ring has been dropped or has any visual damage, it must be discarded.

Courtesy of FORD MOTOR COMPANY

4.

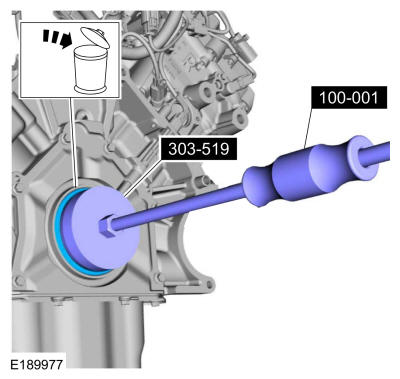

Using the special tools, remove and discard the crankshaft rear seal.
Use Special Service Tool: 303-519 (T95P-6701-EH) Remover, Crankshaft Rear Oil Seal, 100-001 (T50T-100-A) Slide Hammer.

Courtesy of FORD MOTOR COMPANY
