Crankshaft Front Seal: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the following items:
- Refer to: ACCESSORY DRIVE BELT .
- Refer to: AIR CONDITIONING (A/C) COMPRESSOR BELT .

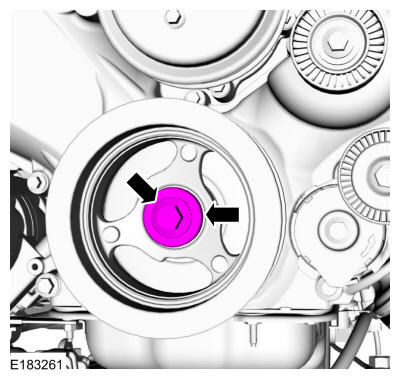

2.

Remove the crankshaft pulley bolt and washer.

Courtesy of FORD MOTOR COMPANY

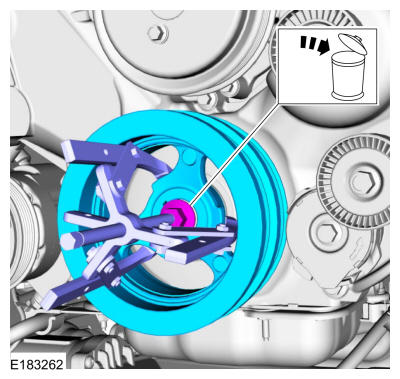

3.
- Using the 3 Leg Puller and the crankshaft pulley bolt, remove the crankshaft pulley.
  Use the General Equipment: Three Leg Puller
- Discard the crankshaft pulley bolt.

Courtesy of FORD MOTOR COMPANY

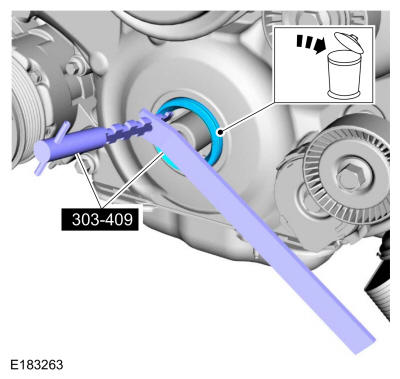

4.

NOTE: Use care not to damage the engine front cover or the crankshaft when removing the seal.

Using the special tool, remove and discard the crankshaft front oil seal.

Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.

Courtesy of FORD MOTOR COMPANY
