Camshaft RH: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

NOTE: If the components are to be reinstalled, they must be installed in their original locations.
1. 1.

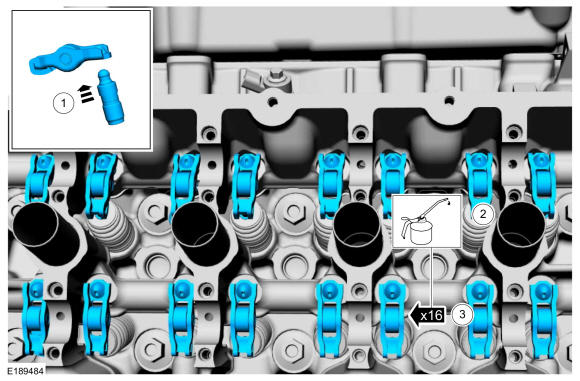

  Assemble the hydraulic lash adjusters onto the spring clips on the camshaft roller followers.
1. 2.

  Lubricate the camshaft roller follower and hydraulic lash adjuster assemblies with clean engine oil.
  Material

  : Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
1. 3.

  Install the camshaft roller follower and hydraulic lash adjuster assemblies.

Courtesy of FORD MOTOR COMPANY

2.

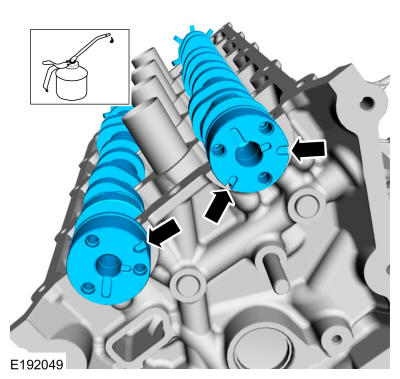

NOTE: Lubricate the camshafts with clean engine oil prior to installation.

Install the intake and exhaust camshafts in the neutral position. Align the D-slots as shown in the illustration.

Material

: Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

Courtesy of FORD MOTOR COMPANY

3.

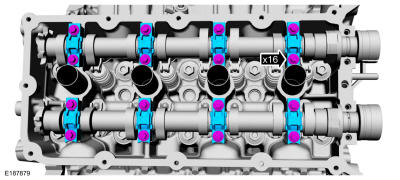

Install the camshaft bearing caps and the bolts. Do not tighten at this time.

Courtesy of FORD MOTOR COMPANY

4.

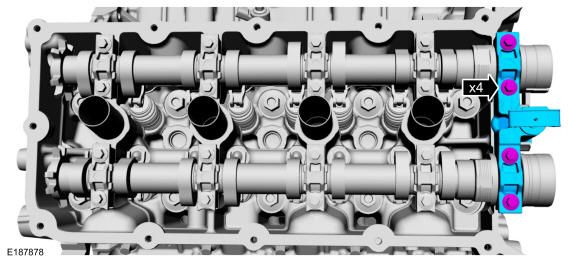

Install the front camshaft bearing mega cap and the 4 bolts. Do not tighten at this time.

Courtesy of FORD MOTOR COMPANY

5.

Tighten the bolts.
Torque:

Stage 1: 53 lb.in (6 Nm)

Stage 2: 45°

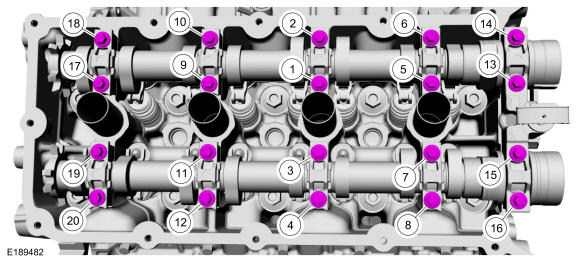

Fig 1: RH Camshaft Tightening Sequence

Courtesy of FORD MOTOR COMPANY

6.

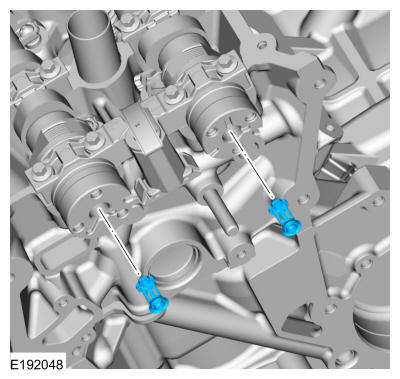

Install new VCT system oil filters into the camshafts.

Courtesy of FORD MOTOR COMPANY

7.

Install the RHVCT units. Refer to: Variable Camshaft Timing (VCT) Unit .
