Section 678 (Engine - 5.0L 32V Ti-VCT): Installation: Engine

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-F047 Lifting Bracket, Engine
Magnetic Socket
Floor Crane
Trolley Jack
Wooden Block

Materials

Name	Specification
Motorcraft® Multi-Purpose Grease Spray XL-5-A	ESB-M1C93-B
Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP	WSS-M2C945-A

1. 1.



   1. 1.

      Inspect the engine mount-to-frame nut plate for thread damage.

   1. 2.

      If the nut plate is damaged, remove and discard the engine mount-to-frame nut plate.
   • Clean the engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.

Courtesy of FORD MOTOR COMPANY

1. 2.

   Lubricate the torque converter pilot hub with multi-purpose grease.

   Material

   : Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

Courtesy of FORD MOTOR COMPANY

1. 3.


   • Inspect the torque converter stud and flexplate for paint marks.
   • Align the torque converter stud and flexplate hole near the paint marks to the 12 o'clock position.

Courtesy of FORD MOTOR COMPANY

1. 4.

   Using the Heavy Duty Floor Crane, install the engine assembly into the vehicle.

   Use the General Equipment: Floor Crane

Courtesy of FORD MOTOR COMPANY

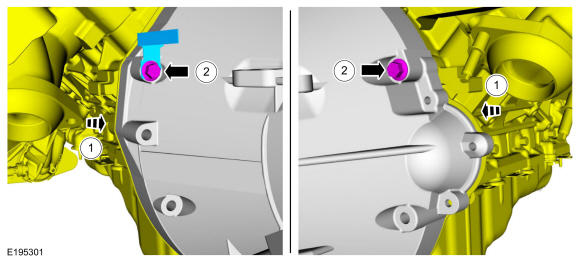

1. 5.



   1. 1.

      Align the engine to the transmission.

   1. 2.

      Install the clip and draw the engine and transmission together using the bolts.

      Torque

      : 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

1. 6.

   Remove the floor jack and a block of wood.

   Use the General Equipment: Trolley Jack

   Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY

1. 7.

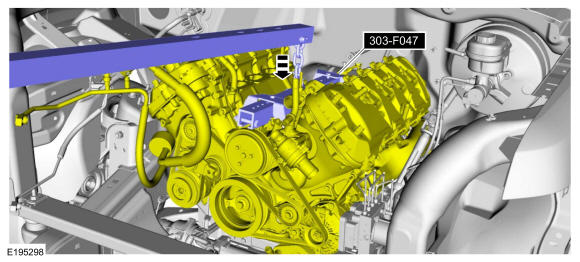

   Using the Heavy Duty Floor Crane, raise the engine assembly to gain clearance to install the LH engine mount.

   Use the General Equipment: Floor Crane

Courtesy of FORD MOTOR COMPANY

1. 8.

   Install the LH engine mount and the new engine mount-to-frame bolts.

   Torque

   : 129 lb.ft (175 Nm)

Courtesy of FORD MOTOR COMPANY

1. 9.

   Using the Heavy Duty Floor Crane, lower the engine assembly into the installed position.

   1. 1.

      Remove Heavy Duty Floor Crane.

      Use the General Equipment: Floor Crane

   1. 2.

      Remove Special Service Tool: 303-F047 Lifting Bracket, Engine.

Courtesy of FORD MOTOR COMPANY

1. 10.

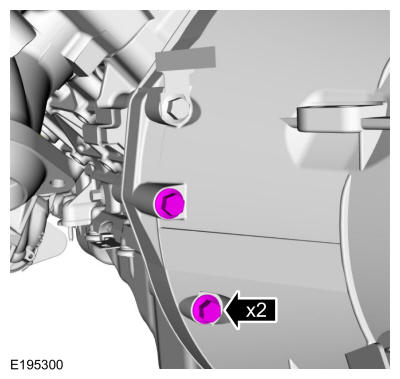

   Install the upper transmission-to-engine bolts.

   Torque

   : 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

1. 11.


   NOTE: Only use hand tools when installing the engine mount stud bolts or damage to the engine mount can occur.

   Install the new RH engine mount stud bolts.

   Torque

   : 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

1. 12.


   NOTE: Only use hand tools when installing the engine mount nuts or damage to the engine mount can occur.

   Install the new RH engine mount nuts.

   Torque

   : 111 lb.ft (150 Nm)

Courtesy of FORD MOTOR COMPANY

1. 13.


   NOTE: Only use hand tools when tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

   Install the new LH engine mount through bolt.

   Torque

   : 258 lb.ft (350 Nm)

Courtesy of FORD MOTOR COMPANY

1. 14.


   NOTE: Only use hand tools when installing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

   Tighten the transmission mount-to-crossmember nuts.

   Torque

   : 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

1. 15.

   Install LH transmission-to-engine bolts.

   Torque

   : 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

1. 16.

   Install the transmission cooler tube support bracket and the transmission-to-engine bolt.

   Torque

   : 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

1. 17.

   Position the exhaust Y-pipe dual catalytic converter onto the exhaust manifolds and loosely install new RH catalytic converter-to-exhaust manifold nuts.

Courtesy of FORD MOTOR COMPANY

1. 18.

   Loosely install new LH catalytic converter-to-exhaust manifold nuts.

Courtesy of FORD MOTOR COMPANY

1. 19.

   Tighten the nuts.

   Torque:

   1: 30 lb.ft (40 Nm)

   2: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

1. 20.

   Tighten the nuts.

   Torque:

   1: 30 lb.ft (40 Nm)

   2: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

1. 21.

   Position the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe and install new bolts.

   Torque:

   1: 46 lb.ft (63 Nm)

   2: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY

1. 22.


   NOTE: Only rotate the crankshaft in a clockwise direction.

   Install the new torque converter-to-flexplate nuts.

   Use the General Equipment: Magnetic Socket

   Torque

   : 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

1. 23.

   Install the cylinder block opening cover.

Courtesy of FORD MOTOR COMPANY

1. 24.

   Install the flexplate inspection cover and the bolts.

   Torque

   : 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

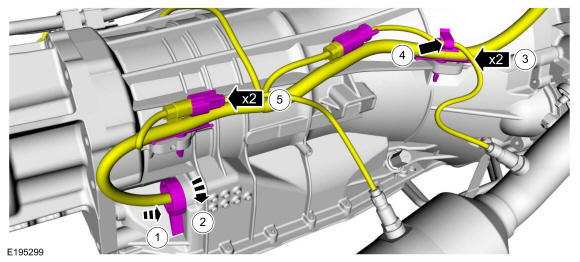

1. 25.



   1. 1.

      Push the transmission electrical connector in to connect.

   1. 2.

      Rotate the transmission electrical connector clockwise.

   1. 3.

      Attach the wiring harness retainers.

   1. 4.

      Slide the wire into the retainer.

   1. 5.

      Connect the RHHO2S and catalyst monitor sensor electrical connectors.

Courtesy of FORD MOTOR COMPANY

1. 26.

   If equipped, attach the 4x4 wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

1. 27.

   Connect the LHHO2S and catalyst monitor sensor electrical connectors.
   • Attach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

1. 28.



   1. 1.

      Attach the wiring harness retainer to the oil pan stud bolt.

   1. 2.

      Install the nut.

      Torque

      : 106 lb.in (12 Nm)

   1. 3.

      Slide the wiring harness retainer onto the engine front cover stud bolt.

   1. 4.

      Attach the wiring harness retainer to the oil pan.

Courtesy of FORD MOTOR COMPANY

1. 29.

   Attach the wiring harness retainers and connect the A/C compressor electrical connector.

Courtesy of FORD MOTOR COMPANY

1. 30.

   Install the following items:
   • Refer to: STARTER MOTOR .
   • If equipped. Refer to: Front Driveshaft .

1. 31.

   Position the transmission cooler tubes and install the nut.

   Torque

   : 115 lb.in (13 Nm)

Courtesy of FORD MOTOR COMPANY

1. 32.


   NOTE: Do not lubricate the O-ring seal.

   Install a new oil filter.

   Torque:

   Stage 1: 44 lb.in (5 Nm)

   Stage 2: 180°

Courtesy of FORD MOTOR COMPANY

1. 33.

   If equipped, install the underbody shield and fasteners.

   Torque

   : 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

1. 34.

   If equipped, install the skid plate and bolts.

   Torque

   : 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

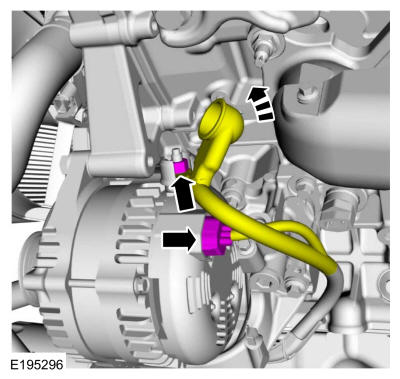

1. 35.



   1. 1.

      Connect the generator electrical connector, the battery cable and install the nut.

      Torque

      : 150 lb.in (17 Nm)

   1. 2.

      Position the cover.

Courtesy of FORD MOTOR COMPANY

1. 36.

   Connect the engine wiring harness electrical connectors and attach the harness retainers.

Courtesy of FORD MOTOR COMPANY

1. 37.

   If equipped, attach the 4x4 wiring harness retainer to the RH valve cover.

Courtesy of FORD MOTOR COMPANY

1. 38.

   Install the ground strap and nut onto the RH valve cover stud bolt.

   Torque

   : 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY

1. 39.

   Install the ground strap and nut onto the LH valve cover stud bolt.

   Torque

   : 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY

1. 40.



   1. 1.

      Install the coolant bypass T assembly and clamp onto the engine.

   1. 2.

      Slide the spring clip until it hits the stop on the hose fitting.

Courtesy of FORD MOTOR COMPANY

1. 41.

   Install the hoses and clamps.

   1. 1.

      Install the PCV tube. Refer to: QUICK RELEASE COUPLING .

Courtesy of FORD MOTOR COMPANY

1. 42.

   Install the hoses and clamps.

Courtesy of FORD MOTOR COMPANY

1. 43.


   NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.
   NOTE: It is not necessary to remove the throttle body during the intake removal procedure.

   Install the intake manifold. Refer to: Intake Manifold .

1. 44.

   Connect the heater hoses and attach the retainers to the RH valve cover.

Courtesy of FORD MOTOR COMPANY

1. 45.


   • Install a new O-ring seal and gasket seal.
   • Connect the A/C tube and install the nut.

     Torque

     : 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY

1. 46.

   Connect the A/C pressure transducer electrical connector.

Courtesy of FORD MOTOR COMPANY

1. 47.

   Install the following items:
   • Refer to: COOLING MODULE - 5.0L 32V Ti-VCT.
   • Refer to: DEGAS BOTTLE .
   NOTE: It is not necessary to separate the air cleaner outlet pipe and the air cleaner, the 2 components can be removed as an assembly.
   • Refer to: AIR CLEANER .
   • Refer to: AIR CLEANER OUTLET PIPE .

1. 48.

   Position the hood and install the nuts.

   Torque

   : 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

1. 49.

   Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

1. 50.

   Fill the engine with clean engine oil. Refer to: Specifications .

   Material

   : Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

Courtesy of FORD MOTOR COMPANY

1. 51.

   Fill and bleed the engine cooling system. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .

1. 52.

   Check and top off the transmission fluid. Refer to: Transmission Fluid Level Check .

1. 53.

   Start engine and check exhaust system for leaks.

1. 54.

   After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
