Cylinder Head: Assembly

All cylinder heads

1. 1.

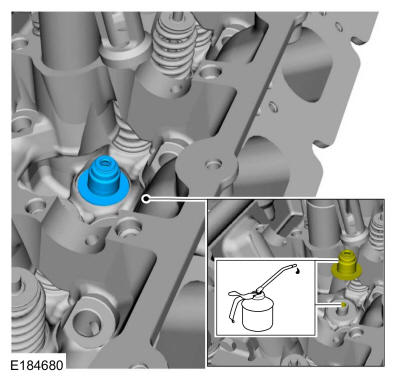

   NOTE: Lubricate the new valve stem seal and valve guide bore with clean engine oil.

   Install the new valve stem seal.

   Material

   : Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

Courtesy of FORD MOTOR COMPANY

1. 2.

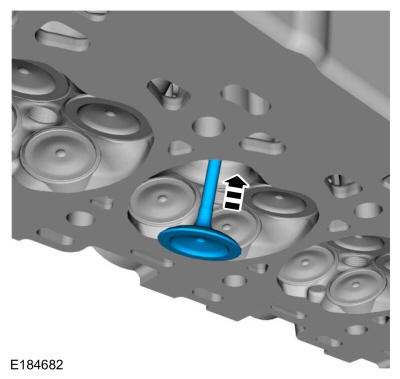

   Install the valve into the cylinder head.

Courtesy of FORD MOTOR COMPANY

1. 3.

   Using the special tools, install the spring, retainer and keys.

   Use Special Service Tool: 303-300 (T87C-6565-A) Set, Valve Spring Compressor, 303-350 (T89P-6565-A) Compressor, Valve Spring, 303-1249 Valve Spring Compressor, 303-1418 Compressor, Valve Spring.

Courtesy of FORD MOTOR COMPANY

1. 4.

   Repeat the previous steps for each of the remaining valves.

1. 5.

   Install the spark plugs.

   Torque

   : 128 lb.in (14.5 Nm)

Courtesy of FORD MOTOR COMPANY

RH cylinder heads

1. 6.


   • Install a new CHT sensor.

     Torque

     : 97 lb.in (11 Nm)

   • Install the CMP sensor and the bolt.

     Torque

     : 89 lb.in (10 Nm)

   • Install the heat shield and the bolts.

     Torque

     : 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

1. 7.


   NOTE: Lubricate the O-ring seal with clean engine coolant prior to installing.

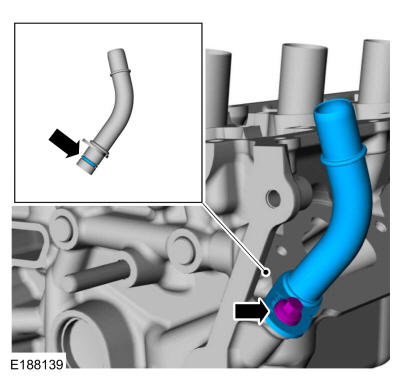

   Using a new O-ring seal, install the coolant outlet pipe.

   Material

   : Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

   Torque

   : 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

LH cylinder heads

1. 8.


   • Install the heat shield and the bolts.

     Torque

     : 89 lb.in (10 Nm)

   • Install the intake and exhaust CMP sensors, the radio interference capacitor and the bolts.

     Torque

     : 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

1. 9.

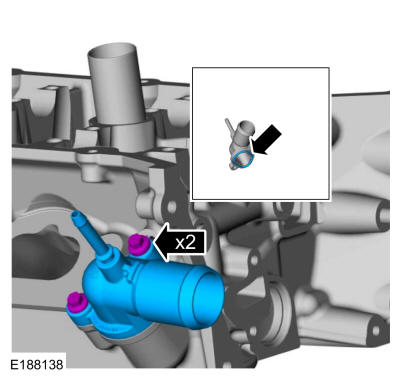

   Using a new gasket, install the coolant outlet and the bolts.

   Torque

   : 89 lb.in (10 Nm)
