Engine - Overview: Overview
The 5.0L (302 CID) is a V-8 engine with the following features:
- Dual overhead camshafts
- Four valves per cylinder
- SFI
- Aluminum cylinder heads
- Aluminum, 90-degree V-cylinder block
- Twin independent VCT system
- Individually chain-driven camshafts with a hydraulic timing chain tensioner on each timing chain
- Electronic ignition system with 8 ignition coils
Engine Identification
Always refer to these labels when installation of new parts is necessary or when checking engine calibrations. The engine parts often differ within a CID family. Verification of the identification codes will make sure the correct parts are obtained. The codes contain all the pertinent information relating to the dates, optional equipment and revisions.
Engine Code Information Label
| Item | Description |
|---|---|
| 1 | Essex engine plant |
| 2 | Engine displacement |
| 3 | Transmission |
| 4 | Vehicle line |
| 5 | Sequential number |
| 6 | Engine build date (DDMMYY) |
| 7 | Essex engine plant |
| 8 | Bar code |
| 9 | Engine part number |

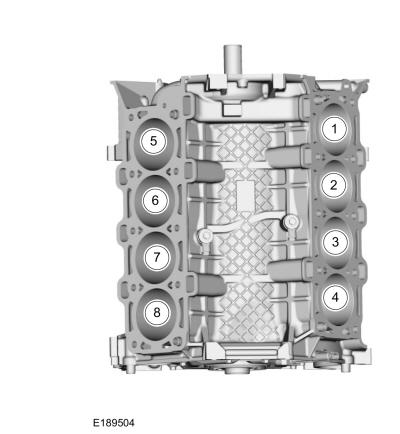

Engine Cylinder Identification

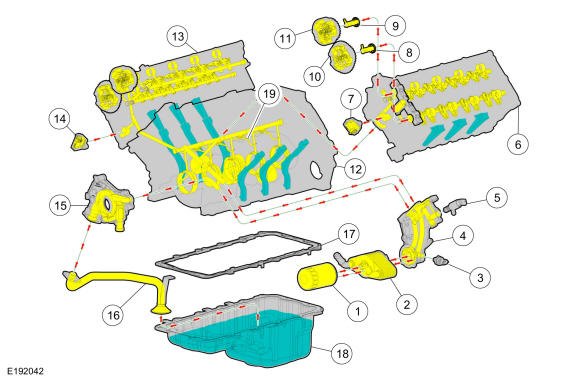

Engine Oil Flow Illustration
| Item | Description |
|---|---|
| 1 | Oil filter |
| 2 | Oil Cooler |
| 3 | Oil control solenoid |
| 4 | Oil filter adapter |
| 5 | EOP switch |
| 6 | Cylinder head - LH |
| 7 | Timing chain tensioner - LH |
| 8 | Exhaust camshaft |
| 9 | Intake camshaft |
| 10 | Exhaust VCT unit |
| 11 | Intake VCT unit |
| 12 | Cylinder block |
| 13 | Cylinder head - RH |
| 14 | Timing chain tensioner - RH |
| 15 | Oil pump |
| 16 | Oil pump screen and pickup tube |
| 17 | Oil pan gasket |
| 18 | Oil pan |
| 19 | Piston oil coolers |
Lubrication System
The engine lubrication system is of the force-feed type in which oil is supplied under full pressure to the:
- crankshaft main bearings.
- crankshaft thrust main bearing.
- connecting rod bearings.
- oil galleries.
All other parts are lubricated by splash of the oil.
The lubrication system of the 5.0L (4V) engine is designed to provide optimum oil flow to critical components of the engine through its entire operating range. The heart of the system is a positive displacement internal gear oil pump using top seal rotors.
The heart of the system is a positive displacement internal gear oil pump.
Generically, this design is known as a gerotor pump, which operates as follows:
- The oil pump is mounted on the front face of the cylinder block.
- The inner rotor is piloted on the crankshaft post and is driven through flats on the crankshaft.
- System pressure is limited by an integral, internally-vented relief valve which directs the bypassed oil back to the inlet side of the oil pump.
- Oil pump displacement has been selected to provide adequate volume to make sure of correct oil pressure both at hot idle and maximum speed.
- The relief valve calibration protects the system from excessive pressure during high viscosity conditions.
- The relief valve is designed to provide adequate connecting rod bearing lubrication under high-temperature and high-speed conditions.
Valve Train
The valves are actuated by a hydraulic lash adjuster and roller follower. The hydraulic lash adjusters and roller followers:
- provide hydraulic lash adjustment.
- ride on the camshaft lobes.
Twin Independent VCT System
The twin independent VCT system allows variable control of the valves which optimizes combustion at full load providing improved power and low speed torque (broadening the torque curve) which enables variable valve overlap which provides better fuel economy and emissions and provides optimized cold start operation with improved exhaust emissions.
