Section 677 (ENGINE - 3.5L ECOBOOST (272kW/370PS)): Removal: Engine

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s) / General Equipment

GFD39292Courtesy of FORD MOTOR COMPANY
 303-1246 Engine Spreader BarTKIT-2006UF-FLMTKIT-2006UF-ROW
GFD40238Courtesy of FORD MOTOR COMPANY
 307-346 (T97T-7902-A) Retainer, Torque Converter TKIT-1997-F/FLM/LT TKIT-1998-LM (NavigatoR)
Floor Crane
Oil Drain Equipment
Trolley Jack
Hose Clamp Remover/Installer
Wooden Block

  1. 1.

    With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

  1. 2.

    Index-mark the hood hinge location.
GFD39294Courtesy of FORD MOTOR COMPANY

  1. 3.

    Remove the 4 bolts and the hood.
GFD39295Courtesy of FORD MOTOR COMPANY

  1. 4.

    Remove the engine appearance cover.
GFD38911Courtesy of FORD MOTOR COMPANY

  1. 5.

    Release the fuel system pressure. Refer to: QUICK RELEASE COUPLING .

  1. 6.

    Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

  1. 7.

    Remove the cooling module. Refer to: COOLING MODULE .

  1. 8.

    Disconnect the electrical connector and the wire retainer. Disconnect the quick connect coupling. Refer to: QUICK RELEASE COUPLING .
GFD40101Courtesy of FORD MOTOR COMPANY

  1. 9.

    Loosen the clamps and remove the CAC-to-TB (throttle body) pipe.
GFD40102Courtesy of FORD MOTOR COMPANY

  1. 10.

    1. 1.

      Disconnect the PCV pressure sensor electrical connector.

    1. 2.

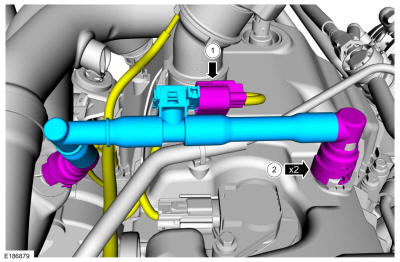

      Disconnect the PCV tube quick connect couplings and remove the tube. Refer to: QUICK RELEASE COUPLING
GFD40217Courtesy of FORD MOTOR COMPANY

  1. 11.

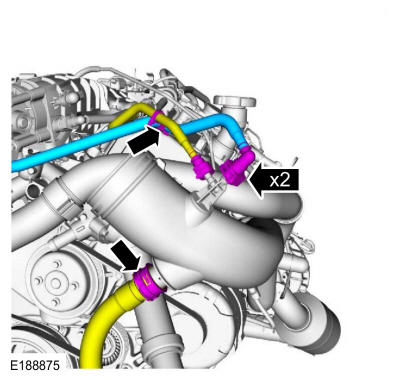

    Disconnect the quick connect couplings and the turbocharger bypass tube. Refer to: QUICK RELEASE COUPLING .
GFD40239Courtesy of FORD MOTOR COMPANY

  1. 12.

    Loosen the clamp at the turbocharger. Disconnect the turbocharger inlet tube from the grommet and remove the turbocharger inlet tube.
GFD40105Courtesy of FORD MOTOR COMPANY

  1. 13.

    If equipped, disconnect the block heater and the wire retainers.
GFD40240Courtesy of FORD MOTOR COMPANY

  1. 14.

    Loosen the clamps. Disconnect the turbocharger outlet tube from the bracket grommet and remove the turbocharger outlet tube.
GFD40107Courtesy of FORD MOTOR COMPANY

  1. 15.

    Disconnect the battery positive cable. Refer to: Battery Disconnect and Connect .

  1. 16.

    Disconnect the turbocharger inlet tube hose.
GFD40108Courtesy of FORD MOTOR COMPANY

  1. 17.

    Loosen the clamp at the turbocharger. Disconnect the turbocharger inlet tube from the grommet and remove the turbocharger inlet tube.
GFD40109Courtesy of FORD MOTOR COMPANY

  1. 18.

    • Disconnect the turbocharger outlet tube hose.
    • Loosen the clamps. Disconnect the turbocharger outlet tube from the bracket grommet and remove the turbocharger outlet tube.
GFD40110Courtesy of FORD MOTOR COMPANY

  1. 19.

    Disconnect and remove the air bypass tube assembly from the CAC.
GFD40241Courtesy of FORD MOTOR COMPANY

  1. 20.

    • Remove the nut and disconnect the A/C tube.
    • Remove and discard the O-ring seal.
    • Disconnect the A/C pressure switch.
GFD40242Courtesy of FORD MOTOR COMPANY

  1. 21.

    Disconnect the A/C compressor electrical connector and wire retainers.
GFD40243Courtesy of FORD MOTOR COMPANY

  1. 22.

    Remove the nut and position out the transmission cooler tube bracket. Position out the engine wiring harness.
GFD39642Courtesy of FORD MOTOR COMPANY

  1. 23.

    Disconnect the generator wiring harness from the engine front cover.
GFD39643Courtesy of FORD MOTOR COMPANY

  1. 24.

    • Position back the boot and remove the generator nut.
    • Disconnect the electrical connector and the wiring retainer.
GFD40244Courtesy of FORD MOTOR COMPANY

  1. 25.

    Remove the following items:

  1. 26.

    Disconnect the PCM electrical connector, electrical connector and the wire harness retainer.
GFD40229Courtesy of FORD MOTOR COMPANY

  1. 27.

    If equipped, disconnect the electrical connector and the wire harness retainer.
GFD40245Courtesy of FORD MOTOR COMPANY

  1. 28.

    If equipped, disconnect the wiring harness retainers from the rear of the RH valve cover.
GFD40227Courtesy of FORD MOTOR COMPANY

  1. 29.

    Disconnect and position aside the vacuum pump tube.
GFD40246Courtesy of FORD MOTOR COMPANY

  1. 30.

    Disconnect and position aside the heater hose. Use the General Equipment: Hose Clamp Remover/Installer
GFD40247Courtesy of FORD MOTOR COMPANY

  1. 31.

    Disconnect the degas bottle hose at the thermostat.
GFD40248Courtesy of FORD MOTOR COMPANY

  1. 32.

    Disconnect the heater hose and position the degas bottle hose aside. Use the General Equipment: Hose Clamp Remover/Installer
GFD40249Courtesy of FORD MOTOR COMPANY

  1. 33.

    Remove the nuts and position aside the CAC tube bracket.
GFD40142Courtesy of FORD MOTOR COMPANY

  1. 34.

    Disconnect the coolant hoses at the oil cooler. Disconnect and remove the radiator hose. Use the General Equipment: Hose Clamp Remover/Installer
GFD40250Courtesy of FORD MOTOR COMPANY

  1. 35.

    Disconnect the ground strap retainers. Remove the nut and the ground strap.
GFD40251Courtesy of FORD MOTOR COMPANY

  1. 36.

    Remove the following items:

  1. 37.

    Disconnect the HO2S electrical connector and harness retainer.
GFD40252Courtesy of FORD MOTOR COMPANY

  1. 38.

    • If equipped, remove the bolts.
    • Release the retainer and remove the transmission housing cover.
GFD38415Courtesy of FORD MOTOR COMPANY

  1. 39.

    NOTE: Vehicles come with an underbody shield or a skid plate.
    • If equipped, remove the pin-type retainers.
    • Remove the bolts and the underbody shield.
GFD39150Courtesy of FORD MOTOR COMPANY

  1. 40.

    NOTE: Vehicles come with an underbody shield or a skid plate.

    If equipped, remove the bolts and the skid plate.

GFD39149Courtesy of FORD MOTOR COMPANY

  1. 41.

    Disconnect the HO2S electrical connector and harness retainer.
GFD40253Courtesy of FORD MOTOR COMPANY

  1. 42.

    If equipped, disconnect the transfer case electrical connector.
GFD40254Courtesy of FORD MOTOR COMPANY

  1. 43.

    • Disconnect the CMS (catalyst monitor sensor) electrical connectors.
    • Disconnect the transmission electrical connector and wire retainers. Position out the electrical harness.
GFD40255Courtesy of FORD MOTOR COMPANY

  1. 44.

    Remove the following items:

  1. 45.

    Detach the starter motor wiring harness retainer from the oil pan.
GFD39641Courtesy of FORD MOTOR COMPANY

  1. 46.

    Remove the retainers and the access cover.
GFD40256Courtesy of FORD MOTOR COMPANY

  1. 47.

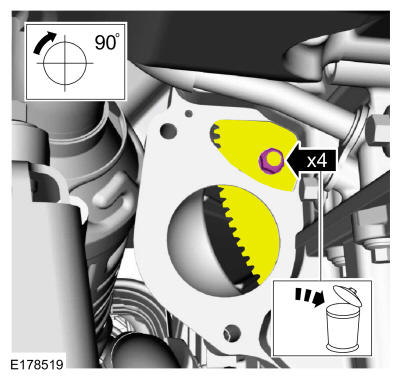

    NOTE: Index-mark the end of one torque converter stud and the flexplate for installation.
    NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.

    Remove and discard the torque converter nuts.

GFD40257Courtesy of FORD MOTOR COMPANY

  1. 48.

NOTE: Make sure that the mating faces are clean and free of foreign material.

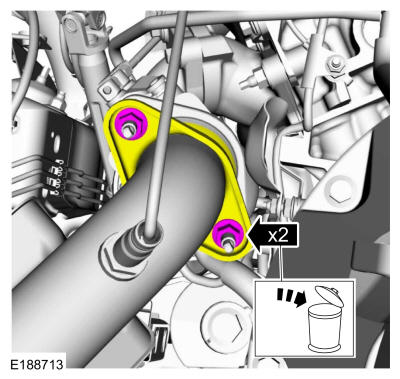

Remove and discard the LH catalytic converter flange nuts.

GFD40127Courtesy of FORD MOTOR COMPANY

  1. 49.

    NOTE: Make sure that the mating faces are clean and free of foreign material.

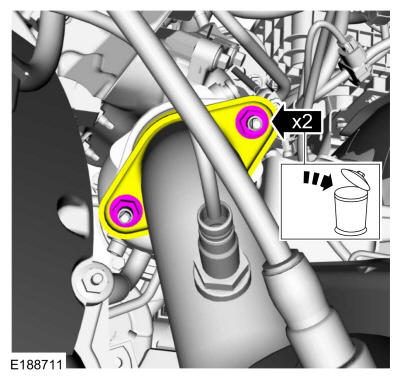

    Remove and discard the RH catalytic converter flange nuts.

GFD40128Courtesy of FORD MOTOR COMPANY

  1. 50.

      NOTE: Make sure that the mating faces are clean and free of foreign material.
    • Remove and discard the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolts.
    • Position the catalytic converter assembly back.
GFD39151Courtesy of FORD MOTOR COMPANY

  1. 51.

    NOTE: Only use hand tools when removing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Loosen the transmission mount-to-crossmember nuts.

GFD39152Courtesy of FORD MOTOR COMPANY

  1. 52.

    Remove the oil pan plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment

    Torque

    : 20 lb.ft (27 Nm)

GFD40111Courtesy of FORD MOTOR COMPANY

  1. 53.

    Remove and discard the oil filter. Use the General Equipment: Oil Drain Equipment
GFD40112Courtesy of FORD MOTOR COMPANY

  1. 54.

    NOTE: Mark the location of the bolts during removal.

    Remove the lower bellhousing bolt.

GFD40258Courtesy of FORD MOTOR COMPANY

  1. 55.

    Remove the upper bellhousing bolts.
GFD40259Courtesy of FORD MOTOR COMPANY

  1. 56.

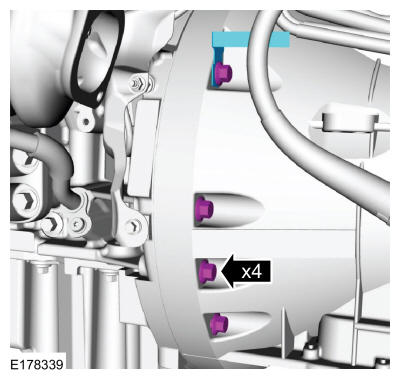

    Remove the LH side bellhousing bolts and the shift cable bracket.
GFD40260Courtesy of FORD MOTOR COMPANY

  1. 57.

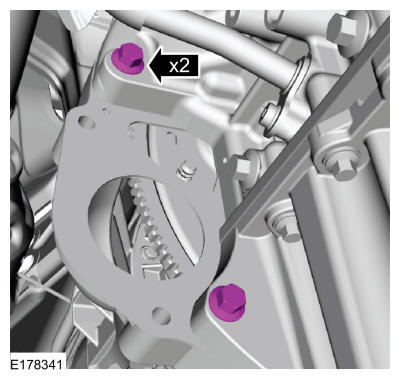

    Remove the RH side bellhousing bolts.
GFD40196Courtesy of FORD MOTOR COMPANY

  1. 58.

    NOTE: Only use hand tools when removing the engine mount nuts and studs or damage to the engine mount can occur.
    NOTE: The engine mount studs may come off with the nuts.

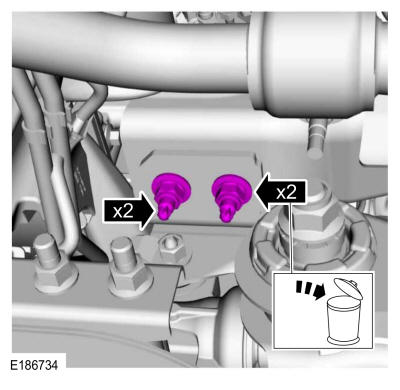

    Remove and discard the RH engine mount nuts. Remove the engine mount studs.

GFD40146Courtesy of FORD MOTOR COMPANY

  1. 59.

    NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

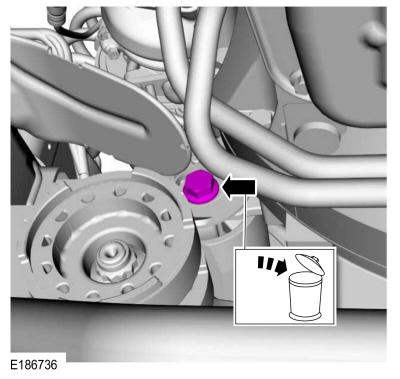

    Remove and discard the LH engine mount through bolt.

GFD40131Courtesy of FORD MOTOR COMPANY

  1. 60.

    NOTE: Do not support the transmission by the fluid pan, failure to follow instruction may result in serious damage to the transmission.

    Support the bellhousing of the transmission with a suitable floor jack and a block of wood. Use the General Equipment: Trolley Jack Use the General Equipment: Wooden Block

GFD39328Courtesy of FORD MOTOR COMPANY

  1. 61.

    NOTE: Only use hand tools when loosening or tightening the engine mount-to-frame bolts or damage to the engine mount-to-frame nut plate can occur.
    NOTE: Leave the LH engine mount in place.

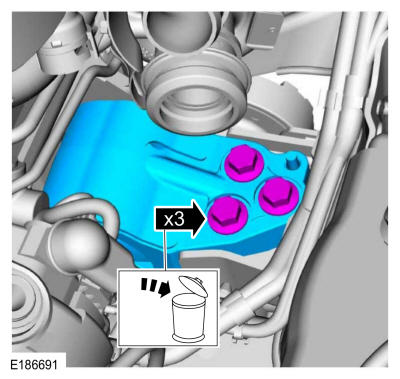

    Remove and discard the LH engine mount bolts.

GFD40132Courtesy of FORD MOTOR COMPANY

  1. 62.

    Disconnect the ignition coil electrical connector at the left rear lifting bracket.
GFD40125Courtesy of FORD MOTOR COMPANY

  1. 63.

    NOTE: The use of a ratchet strap may be needed to level the engine.
    NOTE: Use a commercially available quick link on the right side between the lifting eye and the engine spreader bar.
    NOTE: Use a commercially available quick link on the chain to minimize the spread of the chain.
    • Install the engine spreader bar and the floor crane. Use Special Service Tool: 303-1246 Engine Spreader Bar. Use the General Equipment: Floor Crane
    • Using the floor crane and the engine spreader bar, lift the engine.
GFD40261Courtesy of FORD MOTOR COMPANY

  1. 64.

    Remove the LH engine mount.
GFD40133Courtesy of FORD MOTOR COMPANY

  1. 65.

    Disconnect and position aside the generator wiring harness from the engine.
GFD39673Courtesy of FORD MOTOR COMPANY

  1. 66.

    Using the floor crane and the engine spreader bar, remove the engine. Use Special Service Tool: 303-1246 Engine Spreader Bar. Use the General Equipment: Floor Crane
GFD40261Courtesy of FORD MOTOR COMPANY

  1. 67.

    Install Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.
GFD40262Courtesy of FORD MOTOR COMPANY
