Valve Cover RH: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

NOTE: Installation of new seals is only required if damaged seals were removed.

If removed, using the special tools, install the spark plug tube seals. Use Special Service Tool: 303-1247 VCT Spark Plug Tube Seal Remover and Installer., 205-153 (T80T-4000-W) Handle.

Courtesy of FORD MOTOR COMPANY

2.

NOTE: Installation of new seals is only required if damaged seals were removed.

If removed, using the special tools, install the VCT oil control solenoid seals. Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone., 205-153 (T80T-4000-W) Handle.

Courtesy of FORD MOTOR COMPANY

3.

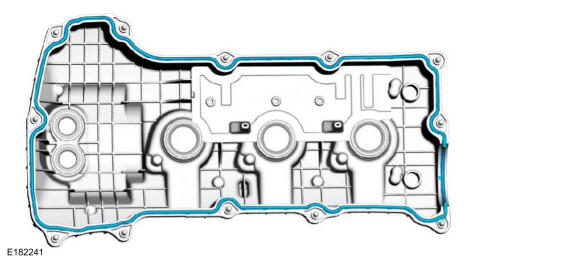

Install a new valve cover gasket.

Courtesy of FORD MOTOR COMPANY

4.

NOTE: If the valve cover is not installed and the fasteners tightened within 4 minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, use silicone gasket remover and metal surface prep. Failure to follow this procedure can cause future oil leakage.

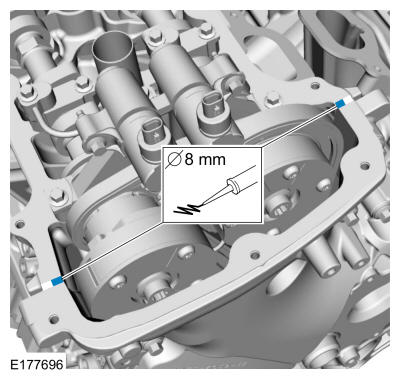

Apply an 8 mm (0.31 in) bead of Motorcraft ® High Performance Engine RTV Silicone to the engine front cover-to-cylinder head joints.

Material

: Motorcraft ® Metal Surface Prep / ZC-31-B

Material

: Motorcraft ® Silicone Gasket Remover / ZC-30-A

Material

: Motorcraft ® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY

5.

Install the valve cover and tighten the stud bolts.
Torque

: 89 lb.in (10 Nm)

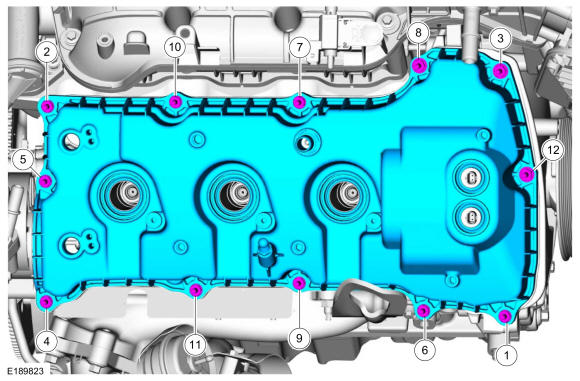

Fig 1: RH Valve Cover Bolts Tightening Sequence

Courtesy of FORD MOTOR CO.

6.

Make sure the VCT seals in the valve cover are below the top of the VCT oil control solenoid electrical connector or the VCT seal may leak oil.

Courtesy of FORD MOTOR COMPANY

7.

NOTE: Apply clean engine oil to the CMP sensor O-ring seals.

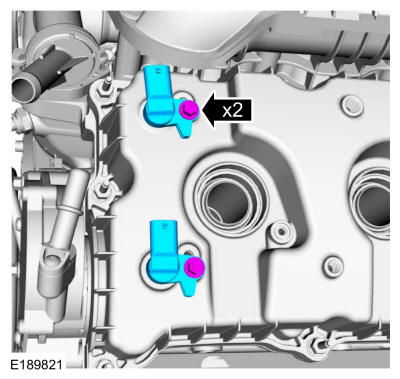

Install the CMP sensors and bolts.

Material

: Motorcraft ® SAE 5W-30 Premium Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

Torque

: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

8.

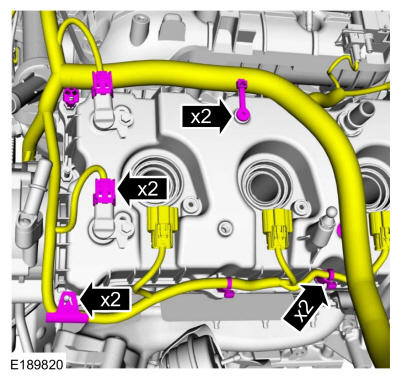

- Attach the wiring harness retainers.
- Connect the CMP sensor electrical connectors.

Courtesy of FORD MOTOR COMPANY

9.

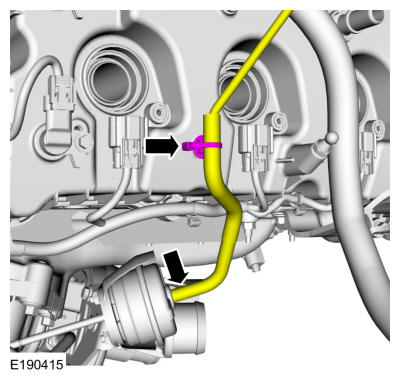

Connect the turbocharger vacuum hose and attach the vacuum hose retainer.

Courtesy of FORD MOTOR COMPANY

10.

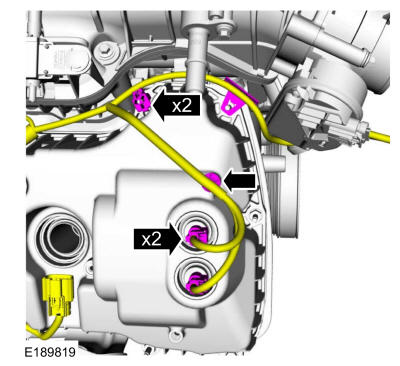

Connect the VCT solenoid electrical connectors and the wire retainers.

Courtesy of FORD MOTOR COMPANY

11.

Position back the engine wire harness and connect the PCM electrical connector. Connect the electrical connector and the wire retainer.

Courtesy of FORD MOTOR COMPANY

12.

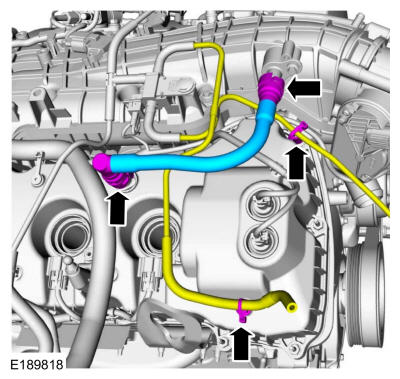

- Install the PCV tube. Refer to: QUICK RELEASE COUPLING .
- Position back the vacuum hoses and attach the retainers.

Courtesy of FORD MOTOR COMPANY

13.

Install the RH ignition coil-on-plugs. Refer to: IGNITION COIL-ON-PLUG .

14.

If equipped, connect the wiring at the valve cover.

Courtesy of FORD MOTOR COMPANY

15.

Position back the CAC tube bracket and install the nuts.
Torque

: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY

16.

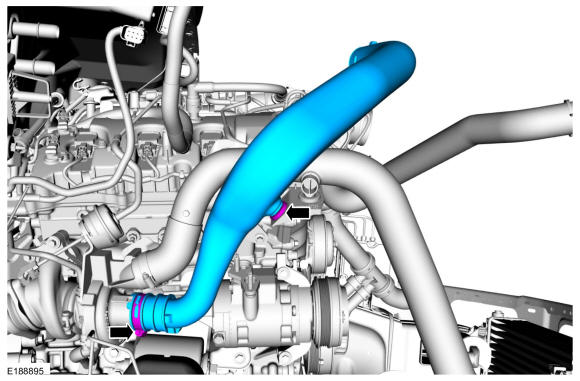

- Install the turbocharger outlet tube and connect turbocharger outlet tube into the grommet. Tighten the clamps.
  Torque

  : 44 lb.in (5 Nm)
- Connect the turbocharger outlet tube hose.

Courtesy of FORD MOTOR COMPANY

17.

Install the turbocharger inlet tube and connect the turbocharger inlet tube into the grommet. Tighten the clamp at the turbocharger.
Torque

: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

18.

Connect the turbocharger inlet tube hose.

Courtesy of FORD MOTOR COMPANY

19.

Connect the battery positive cable. Refer to: Battery Disconnect and Connect .

20.

Install the air cleaner outlet pipe. Refer to: AIR CLEANER OUTLET PIPE .

21.

Install the engine appearance cover.

Courtesy of FORD MOTOR COMPANY
