Oil Pressure Switch: Removal

4x2

1. 1.

   With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

1. 2.


   • Remove the pin-type retainers.
   • Remove the bolts and the underbody shield.

Courtesy of FORD MOTOR COMPANY

4x4

1. 3.

   Remove the engine appearance cover.

Courtesy of FORD MOTOR COMPANY

1. 4.

   Remove the air cleaner outlet pipe. Refer to: AIR CLEANER OUTLET PIPE .

1. 5.



   1. 1.

      Disconnect the PCV pressure sensor electrical connector.

   1. 2.

      Remove the PCV tube. Refer to: QUICK RELEASE COUPLING .

Courtesy of FORD MOTOR COMPANY

1. 6.

   Disconnect the quick connect couplings and the turbocharger bypass tube. Refer to: QUICK RELEASE COUPLING .

Courtesy of FORD MOTOR COMPANY

1. 7.

   Loosen the clamp at the turbocharger. Disconnect the turbocharger inlet tube from the grommet and remove the turbocharger inlet tube.

Courtesy of FORD MOTOR COMPANY

1. 8.

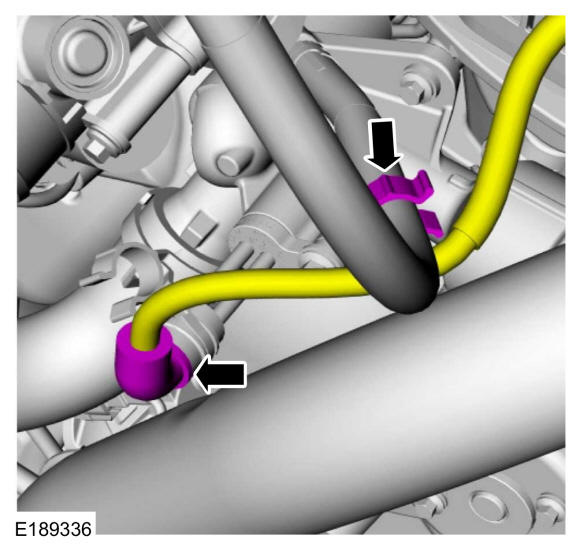

   If equipped, disconnect the block heater electrical connector and wire retainer.

Courtesy of FORD MOTOR COMPANY

1. 9.

   Loosen the clamps. Disconnect the turbocharger outlet tube from the bracket grommet and remove the turbocharger outlet tube.

Courtesy of FORD MOTOR COMPANY

4x2/4x4

1. 10.

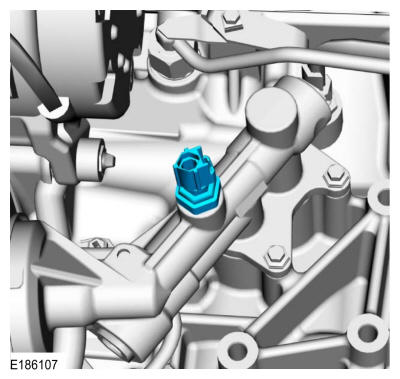

   Disconnect the oil pressure switch electrical connector.

Courtesy of FORD MOTOR COMPANY

1. 11.

   Remove the oil pressure switch.

Courtesy of FORD MOTOR COMPANY
