Oil Pressure Switch: Installation

4x2/4x4

1. 1.


   NOTE: If the oil pressure switch is to be reused, apply thread sealant.

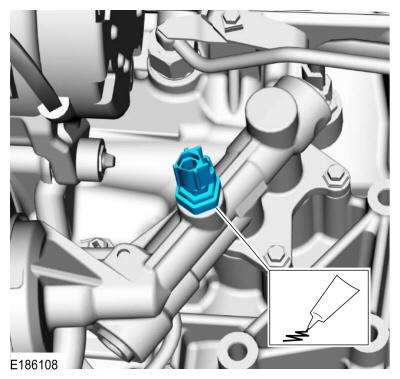

   Install the oil pressure switch.

   Material

   : Thread Sealant with PTFE / TA-24-B (WSK-M2G350-A2)

   Torque

   : 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY

1. 2.

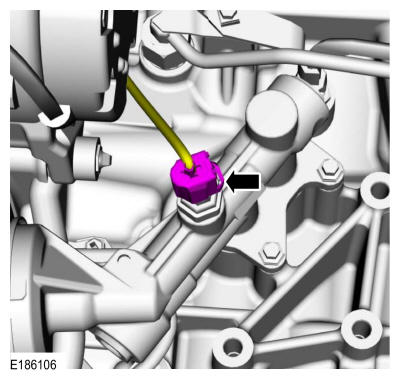

   Connect the oil pressure switch electrical connector.

Courtesy of FORD MOTOR COMPANY

4x4

1. 3.

   Install the turbocharger outlet tube and connect turbocharger outlet tube into the grommet. Tighten the clamps.

   Torque

   : 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

1. 4.

   If equipped, connect the block heater electrical connector and wire retainer.

Courtesy of FORD MOTOR COMPANY

1. 5.

   Install the turbocharger inlet tube and connect the turbocharger inlet tube into the grommet. Tighten the clamp at the turbocharger.

   Torque

   : 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

1. 6.

   Connect the quick connect couplings and the turbocharger bypass tube. Refer to: QUICK RELEASE COUPLING

Courtesy of FORD MOTOR COMPANY

1. 7.



   1. 1.

      Install the PCV tube. Refer to: QUICK RELEASE COUPLING

   1. 2.

      Connect the PCV pressure sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

1. 8.

   Install the air cleaner outlet pipe. Refer to: AIR CLEANER OUTLET PIPE .

1. 9.

   Install the engine appearance cover.

Courtesy of FORD MOTOR COMPANY

4x2

1. 10.


   • Install the underbody shield and the bolts.

     Torque

     : 30 lb.ft (40 Nm)

   • Install the pin-type retainers.

Courtesy of FORD MOTOR COMPANY
