Oil Pan: Installation

4x4/4x2

1. 1.

   Apply a 5.5 mm (0.21 in) bead of Motorcraft ® High Performance Engine RTV Silicone to the 2 crankshaft engine front cover-to-cylinder block joint areas.

   Material

   : Motorcraft ® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY

1. 2.


   NOTE: The oil pan and the specified bolts must be installed and the oil pan aligned to the cylinder block within 4 minutes of sealant application. Final tightening of the oil pan bolts must be carried out within 60 minutes of sealant application.

   Apply a 3 mm (0.11 in) bead of Motorcraft ® High Performance Engine RTV Silicone to the sealing surface of the oil pan.

   Material

   : Motorcraft ® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY

1. 3.

   Apply a 5.5 mm (0.21 in) bead of Motorcraft ® High Performance Engine RTV Silicone to the 2 crankshaft seal retainer plate-to-cylinder block joint areas on the sealing surface of the oil pan.

   Material

   : Motorcraft ® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY

1. 4.


   NOTE: The oil pan and the specified bolts must be installed within 4 minutes of the start of sealant application.
   NOTE: Keep the oil pan as close as possible to the transmission while installing, then slide forward towards the engine front cover to prevent wiping off of the sealant.

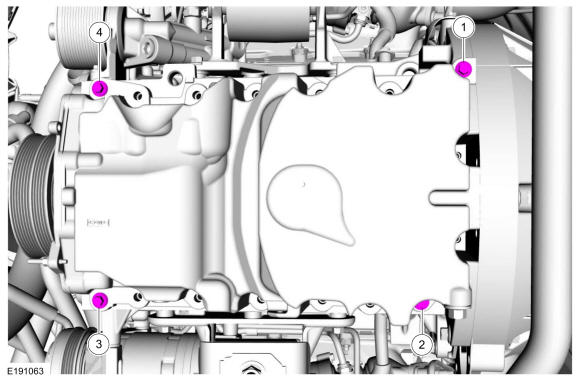

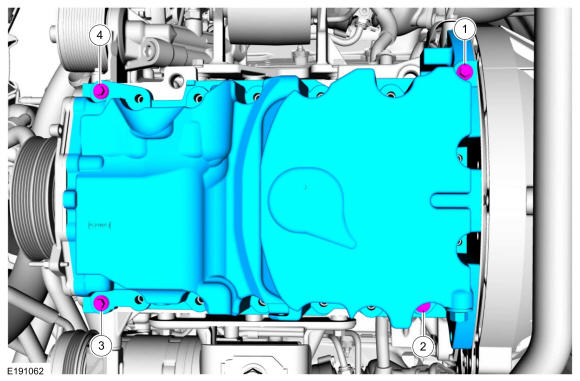

   Install the oil pan and the bolts finger tight.

Courtesy of FORD MOTOR COMPANY

1. 5.


   NOTE: Do not torque at this time.

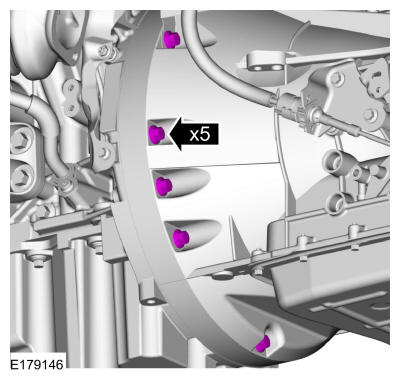

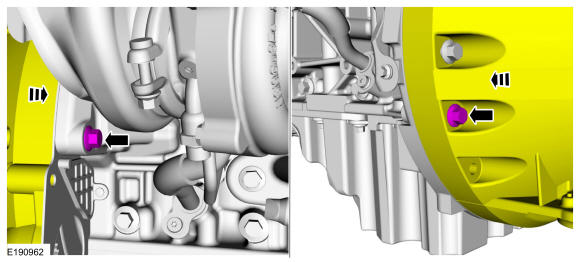

   Draw the transmission and engine together using the bolts.

Courtesy of FORD MOTOR COMPANY

1. 6.


   NOTE: Do not torque at this time.

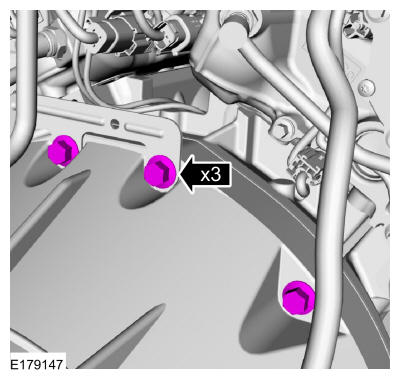

   Install the oil pan bolts.

Courtesy of FORD MOTOR COMPANY

1. 7.


   NOTE: Do not torque at this time.

   Install the oil pan bolt.

Courtesy of FORD MOTOR COMPANY

1. 8.

   Tighten the oil pan bolts.

   Torque

   : 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY

1. 9.

   Install the engine front cover bolts finger tight.

Courtesy of FORD MOTOR COMPANY

1. 10.

   Install the remaining oil pan bolts and tighten in sequence.

   Torque

   : Stage 1: Tighten bolts 1-9 and 11-14 to : 18 lb.ft (24 Nm) Stage 2: Tighten bolt 10 to : 177 lb.in (20 Nm) Stage 3: Tighten bolt 10 an additional : 90 ° Stage 4: Tighten bolts 15 and 16 to : 89 lb.in (10 Nm)

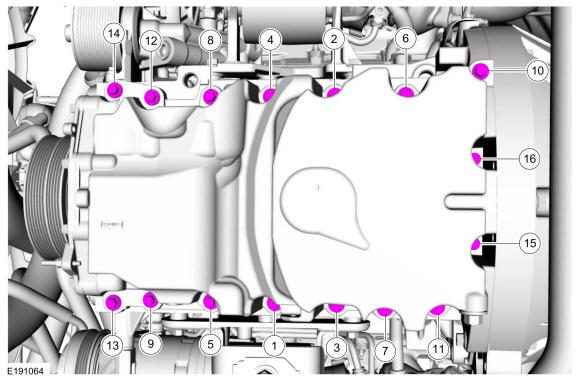

Fig 1: Oil Pan Bolts Tightening Sequence

Courtesy of FORD MOTOR CO.

1. 11.

   Tighten the engine front cover bolts.

   Torque

   : 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY

1. 12.

   Tighten the oil pan and bellhousing bolts.

   Torque

   : 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

1. 13.

   Tighten the oil pan and bellhousing bolts.

   Torque

   : 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

1. 14.

   Remove and discard the transmission mount-to-crossmember nuts. Install new transmission mount-to-crossmember nuts.

   Torque

   : 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

1. 15.

   Attach the generator wiring harness retainer to the engine block.

Courtesy of FORD MOTOR COMPANY

4x4

1. 16.


   NOTE: Use care when positioning the front axle housing or the vacuum lines to the axle solenoid may become disconnected or damaged.

   Using an adjustable stand, raise the front axle carrier into position. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

1. 17.

   Install the lower front axle carrier mounting bushing bolt.

   Torque

   : 129 lb.ft (175 Nm)

Courtesy of FORD MOTOR COMPANY

1. 18.

   Install the upper front axle carrier mounting bushing bolt.

   Torque

   : 129 lb.ft (175 Nm)

Courtesy of FORD MOTOR COMPANY

1. 19.

   Install the axle shaft housing carrier bushing bolt.

   Torque

   : 129 lb.ft (175 Nm)

Courtesy of FORD MOTOR COMPANY

1. 20.

   Remove the adjustable stand. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

4x4/4x2

1. 21.

   Position the crossmember, install the nuts and bolts.

   Torque

   : 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY

1. 22.

   Attach the generator wiring harness to the engine front cover.

Courtesy of FORD MOTOR COMPANY

1. 23.

   Position back the engine wire harness. Position back the transmission cooler tube bracket and install the nut.

   Torque

   : 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

1. 24.

   Attach the starter motor wiring harness retainer to the oil pan.

Courtesy of FORD MOTOR COMPANY

1. 25.

   Install the starter motor. Refer to: STARTER MOTOR .

1. 26.


   NOTE: Do not lubricate the engine oil filter gasket.

   Install a new oil filter.

   Torque

   : Stage 1: 44 lb.in (5 Nm) Stage 2: 180 °

Courtesy of FORD MOTOR COMPANY

1. 27.

   Tighten the upper bell housing-to-engine bolts.

   Torque

   : 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

1. 28.

   Install the skid plate and the bolts.

   Torque

   : 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

1. 29.


   • If equipped, install the underbody shield and the bolts.

     Torque

     : 30 lb.ft (40 Nm)

   • Install the pin-type retainers.

Courtesy of FORD MOTOR COMPANY

1. 30.


   • If equipped, install the transmission housing cover and attach the retainer.
   • Install the bolts.

     Torque

     : 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

1. 31.

   Install the oil level indicator.

Courtesy of FORD MOTOR COMPANY

1. 32.

   Fill the engine with clean engine oil. Refer to: Specifications .

   Material

   : Motorcraft ® SAE 5W-30 Premium Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

Courtesy of FORD MOTOR COMPANY

1. 33.

   Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
