Oil Cooler: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2.

Remove the engine appearance cover.

Courtesy of FORD MOTOR COMPANY

3.

Remove the air cleaner outlet pipe. Refer to: AIR CLEANER OUTLET PIPE .

4.
1. 1.

  Disconnect the PCV pressure sensor electrical connector.
1. 2.

  Remove the PCV tube. Refer to: QUICK RELEASE COUPLING .

Courtesy of FORD MOTOR COMPANY

5.

Disconnect the quick connect couplings and the turbocharger bypass tube. Refer to: QUICK RELEASE COUPLING .

Courtesy of FORD MOTOR COMPANY

6.

Loosen the clamp at the turbocharger. Disconnect the turbocharger inlet tube from the grommet and remove the turbocharger inlet tube.

Courtesy of FORD MOTOR COMPANY

7.

Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment

Courtesy of FORD MOTOR COMPANY

8.

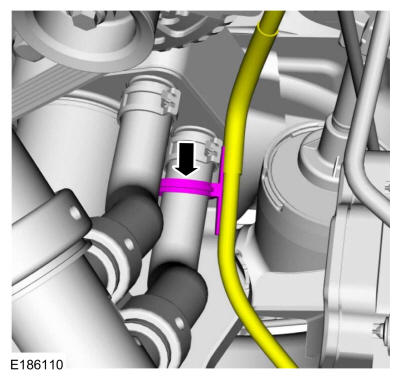

If equipped, disconnect the block heater cord.

Courtesy of FORD MOTOR COMPANY

9.

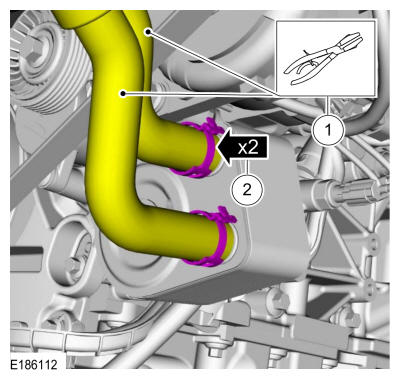

1. 1.

  Using hose locking pliers, clamp the oil cooler coolant hoses. Use the General Equipment: Locking Pliers
1. 2.

  Using the hose clamp remover, remove the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

10.

NOTE: If metal or foreign material is present in the oil cooler, mechanical concerns exist. To diagnose the mechanical concerns refer to ENGINE .

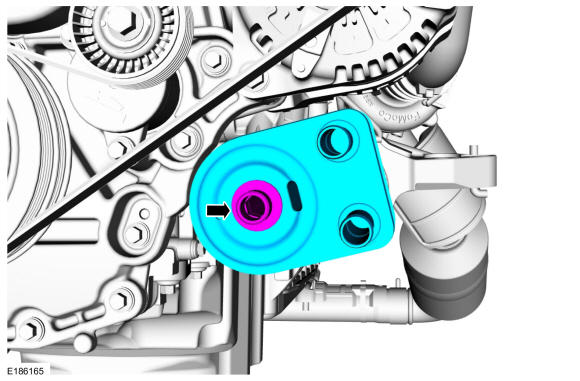

Remove the retainer and the oil cooler.

Courtesy of FORD MOTOR COMPANY
