Intake Manifold: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

2.

Remove the engine appearance cover.

Courtesy of FORD MOTOR COMPANY

3.

Remove the fuel injection pump noise insulator.

Courtesy of FORD MOTOR COMPANY

4.

Remove the air cleaner outlet pipe. Refer to: AIR CLEANER OUTLET PIPE .

5.

Loosen the clamp and position the throttle body intake pipe aside.

Courtesy of FORD MOTOR COMPANY

6.

Disconnect the throttle body electrical connector and wiring harness retainer.

Courtesy of FORD MOTOR COMPANY

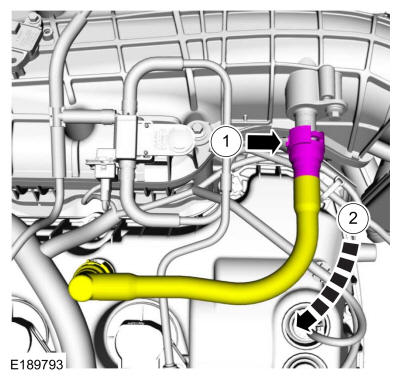

7.

Disconnect the PCV tube from the intake manifold and position the tube aside. Refer to: QUICK RELEASE COUPLING

Courtesy of FORD MOTOR COMPANY

8.
- Loosen the clamp and position the vacuum hose aside. Use the General Equipment: Hose Clamp Remover/Installer
- Disconnect the fuel vapor tube from the intake manifold and position the tube aside. Refer to: QUICK RELEASE COUPLING .

Courtesy of FORD MOTOR COMPANY

9.

Remove the bolts and the engine appearance cover bracket.

Courtesy of FORD MOTOR COMPANY

10.
- Disconnect the EVAP purge solenoid and MAPT sensor electrical connectors and wiring harness retainer.
- Remove the stud bolt and position the EVAP purge solenoid aside.

Courtesy of FORD MOTOR COMPANY

11.
- Disconnect the vacuum hose and position aside.
- Remove the pin-type retainer, the retaining plate and position the vacuum solenoid assembly aside.

Courtesy of FORD MOTOR COMPANY

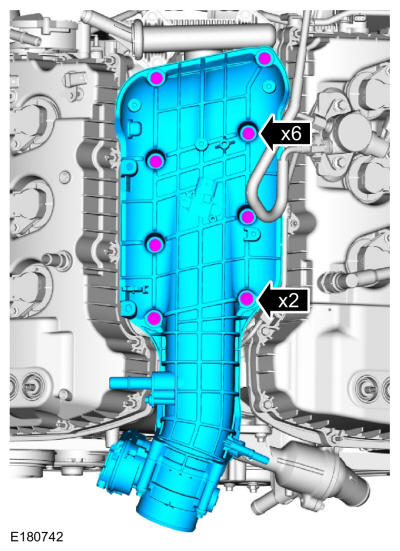

12.

Loosen the bolts and remove the intake manifold.

Courtesy of FORD MOTOR COMPANY

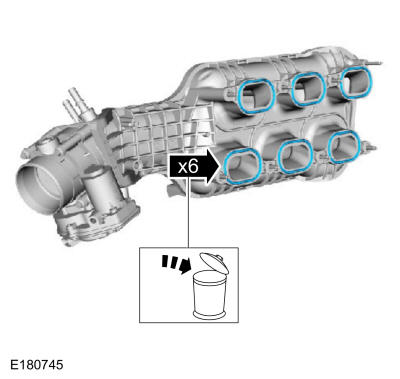

13.
- Discard the gaskets.
- Clean and inspect all of the sealing surfaces of the cylinder heads and the intake manifold.

Courtesy of FORD MOTOR COMPANY
