Removal And Installation: Flexplate: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the transmission. Refer to: Transmission - 3.5L EcoBoost (272kW/370PS) .

2.

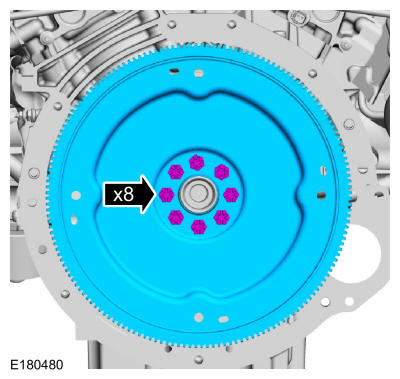

Remove the bolts and the flexplate.

Courtesy of FORD MOTOR COMPANY
