Exhaust Manifold RH: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- 2.
Remove the RH turbocharger. Refer to: Turbocharger RH .
- 5.

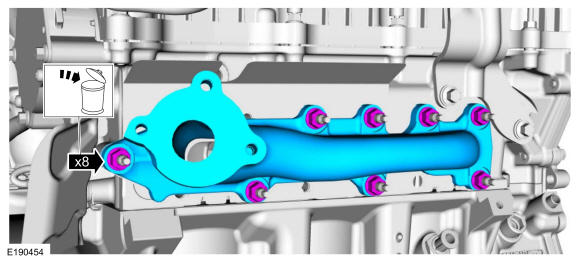

- Clean and inspect the exhaust manifold. Refer to: Exhaust Manifold Cleaning and Inspection .

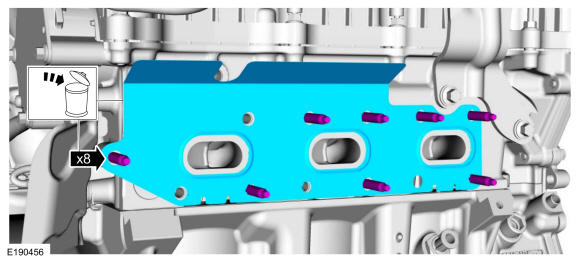

- Clean the exhaust manifold mating surface of the cylinder head with metal cleaner. Follow the directions on the packaging.
Material
: Motorcraft ® Metal Surface Prep / ZC-31-B
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These may cause scratches and gouges resulting in leak paths. Use a plastic scraper to clean the sealing surfaces.
