Exhaust Manifold RH: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

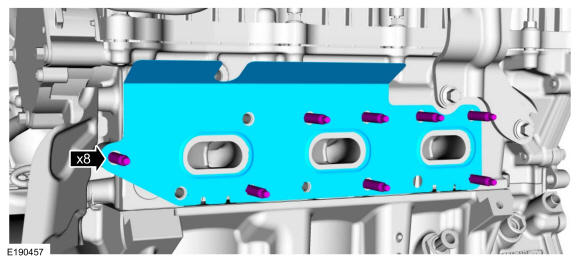

- Install new exhaust manifold studs.
  Torque

  : 106 lb.in (12 Nm)
- Install a new gasket.

Courtesy of FORD MOTOR COMPANY

2.

Install the exhaust manifold and new nuts.
Torque

: Stage 1: 168 lb.in (19 Nm) Stage 2: 18 lb.ft (25 Nm)

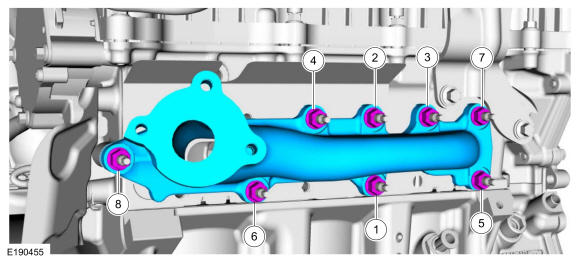

Fig 1: RH Exhaust Manifold Bolts Tightening Sequence

Courtesy of FORD MOTOR CO.

3.

Install the RH turbocharger. Refer to: Turbocharger RH .
