Engine Mount RH: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

    Clean the engine mount-to-cylinder block and engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.

  1. 2.

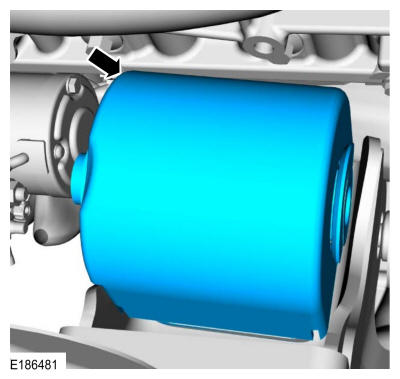

    Position the RH engine mount into the vehicle.
GFD40148Courtesy of FORD MOTOR COMPANY

  1. 3.

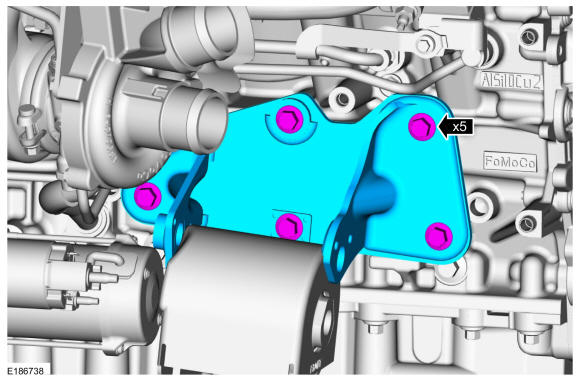

    Position the RH engine mount-to-cylinder block bracket and install the new bolts.

    Torque

    : 57 lb.ft (77 Nm)

GFD40149Courtesy of FORD MOTOR COMPANY

  1. 4.

    NOTE: Only use hand tools when installing the engine mount studs or damage to the engine mount can occur.
    NOTE: Apply threadlock to the stud threads prior to installation.

    Install the RH engine mount studs.

    Torque

    : 22 lb.ft (30 Nm)

GFD40150Courtesy of FORD MOTOR COMPANY

  1. 5.

    NOTE: Only use hand tools when installing the RH engine mount nuts or damage to the engine mount can occur.

    Install the new RH engine mount nuts.

    Torque

    : 111 lb.ft (150 Nm)

GFD40151Courtesy of FORD MOTOR COMPANY

  1. 6.

    Lower the engine to the installed position.

  1. 7.

    NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Install the new LH engine mount through bolt.

    Torque

    : 258 lb.ft (350 Nm)

GFD40137Courtesy of FORD MOTOR COMPANY

  1. 8.

    NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

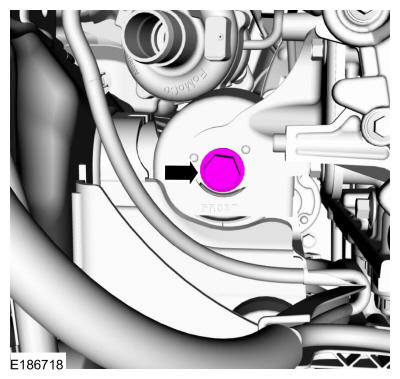

    Install the new RH engine mount through bolt.

    Torque

    : 258 lb.ft (350 Nm)

GFD40138Courtesy of FORD MOTOR COMPANY

  1. 9.

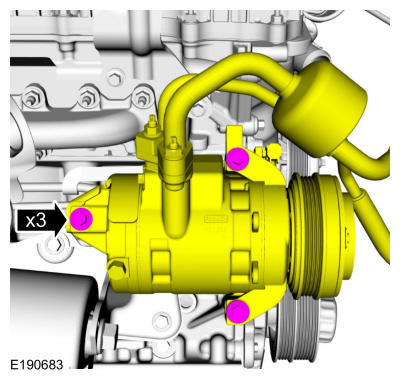

    Position back the A/C compressor and install the bolts.

    Torque

    : 18 lb.ft (25 Nm)

GFD40145Courtesy of FORD MOTOR COMPANY

  1. 10.

    Install the following items:

  1. 11.

    NOTE: Only use hand tools when loosening or tightening the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Remove and discard the transmission mount-to-crossmember nuts. Install new transmission mount-to-crossmember nuts.

    Torque

    : 85 lb.ft (115 Nm)

GFD39152Courtesy of FORD MOTOR COMPANY

  1. 12.

    Position the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe and install the new bolts.

    Torque

    : 46 lb.ft (63 Nm)

GFD39176Courtesy of FORD MOTOR COMPANY

  1. 13.

    Install the new RH catalytic converter-to-turbocharger nuts.

    Torque

    : 30 lb.ft (40 Nm)

GFD40139Courtesy of FORD MOTOR COMPANY

  1. 14.

    Install the new LH catalytic converter-to-turbocharger nuts.

    Torque

    : 30 lb.ft (40 Nm)

GFD40140Courtesy of FORD MOTOR COMPANY

  1. 15.

    If equipped, install the front driveshaft. Refer to: Front Driveshaft .

  1. 16.

    If equipped, install the skid plate and the bolts.

    Torque

    : 30 lb.ft (40 Nm)

GFD39149Courtesy of FORD MOTOR COMPANY

  1. 17.

    • If equipped, install the underbody shield and the bolts.

      Torque

      : 30 lb.ft (40 Nm)

    • Install the pin-type retainers.
GFD39150Courtesy of FORD MOTOR COMPANY

  1. 18.

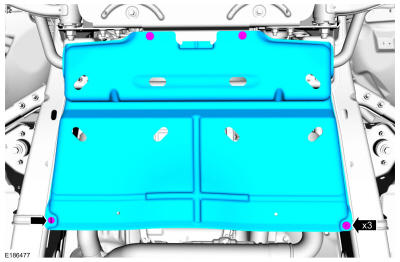

    • If equipped, install the transmission housing cover and attach the retainer.
    • Install the bolts.

      Torque

      : 71 lb.in (8 Nm)

GFD40143Courtesy of FORD MOTOR COMPANY

  1. 19.

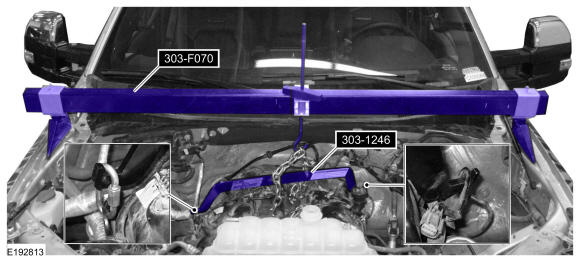

    Remove the special tools. Remove Special Service Tool: 303-F070 Support Bar, Engine., 303-1246 Engine Spreader Bar.
GFD40126Courtesy of FORD MOTOR COMPANY

  1. 20.

    Connect the ignition coil-on-plug electrical connector at the rear lifting bracket.
GFD40125Courtesy of FORD MOTOR COMPANY

  1. 21.

    Install the following items:

  1. 22.

    Position back the CAC tube bracket and install the nuts.

    Torque

    : 53 lb.in (6 Nm)

GFD40142Courtesy of FORD MOTOR COMPANY

  1. 23.

    • Install the turbocharger outlet tube and connect turbocharger outlet tube into the grommet. Tighten the clamps.

      Torque

      : 44 lb.in (5 Nm)

    • Connect the turbocharger outlet tube hose.
GFD40110Courtesy of FORD MOTOR COMPANY

  1. 24.

    Install the turbocharger inlet tube and connect the turbocharger inlet tube into the grommet. Tighten the clamp at the turbocharger.

    Torque

    : 44 lb.in (5 Nm)

GFD40109Courtesy of FORD MOTOR COMPANY

  1. 25.

    Connect the turbocharger inlet tube hose.
GFD40108Courtesy of FORD MOTOR COMPANY

  1. 26.

    Connect the battery positive cable. Refer to: Battery Disconnect and Connect .

  1. 27.

    Install the turbocharger outlet tube and connect turbocharger outlet tube into the grommet. Tighten the clamps.

    Torque

    : 44 lb.in (5 Nm)

GFD40107Courtesy of FORD MOTOR COMPANY

  1. 28.

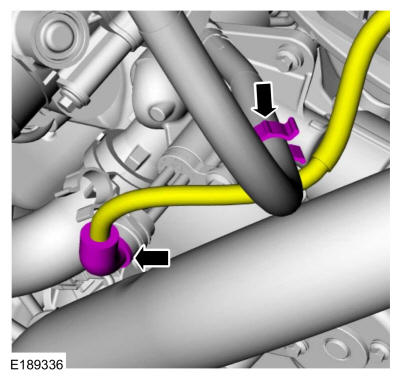

    If equipped, connect the block heater and wire retainer.
GFD40124Courtesy of FORD MOTOR COMPANY

  1. 29.

    Install the turbocharger inlet tube and connect the turbocharger inlet tube into the grommet. Tighten the clamp at the turbocharger.

    Torque

    : 44 lb.in (5 Nm)

GFD40105Courtesy of FORD MOTOR COMPANY

  1. 30.

    Connect the quick connect couplings and the turbocharger bypass tube. Refer to: QUICK RELEASE COUPLING
GFD40104Courtesy of FORD MOTOR COMPANY

  1. 31.

    1. 1.

      Install the PCV tube. Refer to: QUICK RELEASE COUPLING .

    1. 2.

      Connect the PCV pressure sensor electrical connector.
GFD40121Courtesy of FORD MOTOR COMPANY

  1. 32.

    Install the CAC-to-TB (throttle body) pipe. Tighten the clamps.

    Torque

    : 44 lb.in (5 Nm)

GFD40102Courtesy of FORD MOTOR COMPANY

  1. 33.

    Connect the electrical connector and the wire retainer. Connect the quick connect coupling. Refer to: QUICK RELEASE COUPLING .
GFD40101Courtesy of FORD MOTOR COMPANY

  1. 34.

    Install the air cleaner outlet pipe. Refer to: AIR CLEANER OUTLET PIPE .

  1. 35.

    Pressurize the fuel system. Refer to: FUEL SYSTEM PRESSURE RELEASE .

  1. 36.

    Install the engine appearance cover.
GFD38911Courtesy of FORD MOTOR COMPANY

  1. 37.

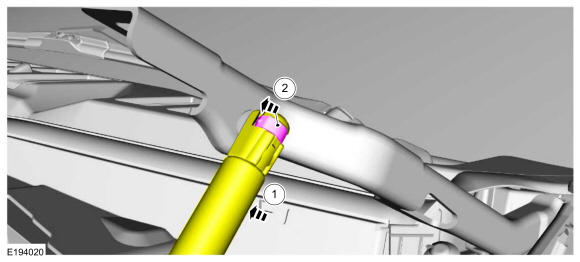

    NOTE: LH shown, RH similar.

    1. 1.

      Position the hood shock and attach.

    1. 2.

      Install the clip.
GFD40141Courtesy of FORD MOTOR COMPANY

  1. 38.

    Position the hood and install the bolts.

    Torque

    : 18 lb.ft (25 Nm)

GFD39295Courtesy of FORD MOTOR COMPANY

  1. 39.

    Start and check the exhaust system for leaks.
