Engine Mount LH: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

4x2/4x4

  1. 1.

    Clean the engine mount-to-cylinder block and engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.

  1. 2.

    NOTE: If necessary, the following 4 steps are to install the LH engine mount insulator-to-cylinder block bracket.

    Install the LH engine mount-to-cylinder block bracket and install the new bolts.

    Torque

    : For standard payload package : 46 lb.ft (63 Nm) For heavy duty payload package : 57 lb.ft (77 Nm)

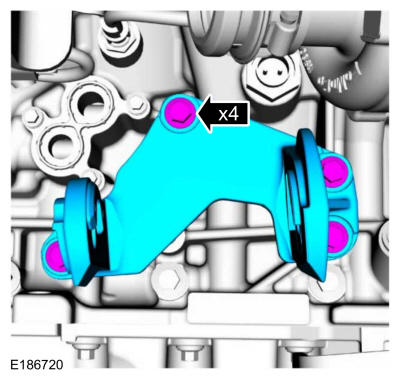

GFD40135Courtesy of FORD MOTOR COMPANY

  1. 3.

    Attach the generator wiring harness retainer to the engine block.
GFD39675Courtesy of FORD MOTOR COMPANY

  1. 4.

    Attach the generator wiring harness to the engine front cover.
GFD39643Courtesy of FORD MOTOR COMPANY

  1. 5.

    Attach the generator wiring harness to the oil filter adapter.

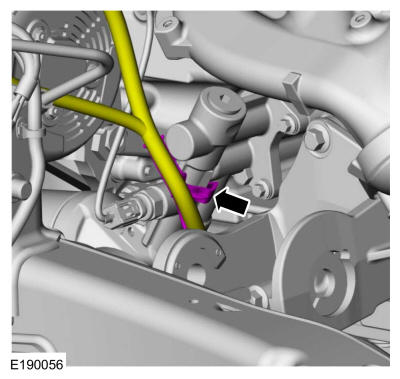

GFD39672Courtesy of FORD MOTOR COMPANY

  1. 6.

    NOTE: Replace the nut plate with part number W716699-S439.

    If removed, install a new engine mount-to-frame nut plate.

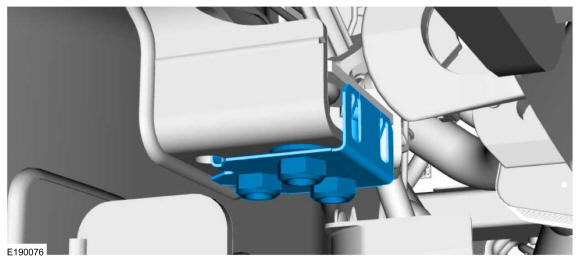

GFD39167Courtesy of FORD MOTOR COMPANY

  1. 7.

    Position the LH engine mount and hand tighten the new engine mount-to-frame bolts.
GFD40136Courtesy of FORD MOTOR COMPANY

4x4

  1. 8.

    NOTE: Use care when positioning the front axle housing or the vacuum lines to the axle solenoid may become disconnected or damaged.

    Using an adjustable stand, raise the front axle carrier into position. Use the General Equipment: Vehicle/Axle Stands

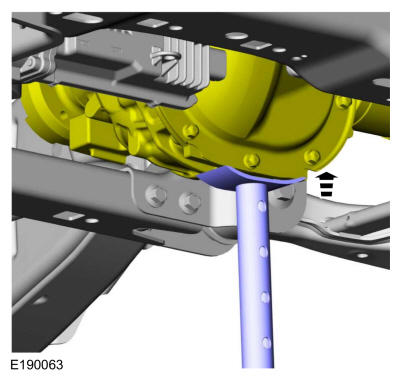

GFD39175Courtesy of FORD MOTOR COMPANY

  1. 9.

    Install the lower front axle carrier mounting bushing bolt.

    Torque

    : 129 lb.ft (175 Nm)

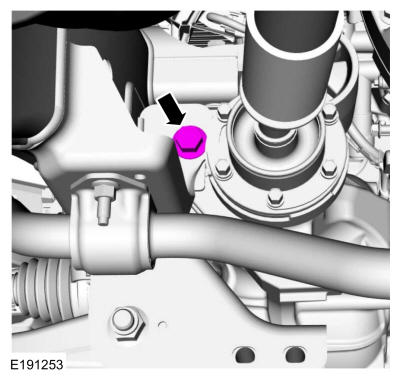

GFD39207Courtesy of FORD MOTOR COMPANY

  1. 10.

    Install the upper front axle carrier mounting bushing bolt.

    Torque

    : 129 lb.ft (175 Nm)

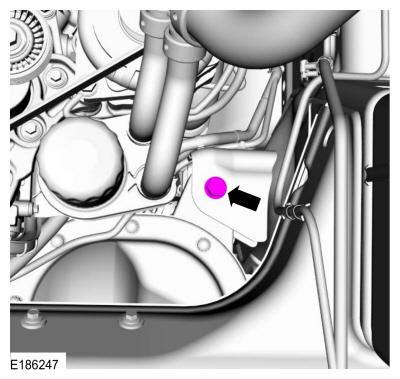

GFD39670Courtesy of FORD MOTOR COMPANY

  1. 11.

    Install the axle shaft housing carrier bushing bolt.

    Torque

    : 129 lb.ft (175 Nm)

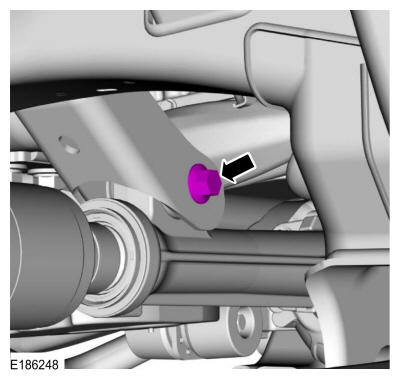

GFD39155Courtesy of FORD MOTOR COMPANY

  1. 12.

    Remove the adjustable stand. Use the General Equipment: Vehicle/Axle Stands

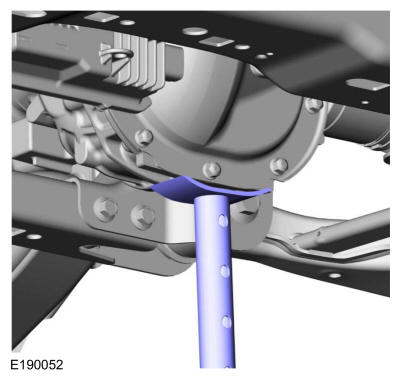

GFD39153Courtesy of FORD MOTOR COMPANY

4x2/4x4

  1. 13.

    NOTE: Only use hand tools when removing or installing the engine mount-to-frame bolts or damage to the engine mount-to-frame nut plate can occur.

    Torque the LH engine mount-to-frame bolts.

    Torque

    : 129 lb.ft (175 Nm)

GFD40136Courtesy of FORD MOTOR COMPANY

  1. 14.

    Lower the engine to the installed position.

  1. 15.

    NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Install a new LH engine mount through bolt.

    Torque

    : 258 lb.ft (350 Nm)

GFD40137Courtesy of FORD MOTOR COMPANY

  1. 16.

    NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Install a new RH engine mount through bolt.

    Torque

    : 258 lb.ft (350 Nm)

GFD40138Courtesy of FORD MOTOR COMPANY

  1. 17.

    NOTE: Only use hand tools when loosening or tightening the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Remove and discard the transmission mount-to-crossmember nuts. Install new transmission mount-to-crossmember nuts.

    Torque

    : 85 lb.ft (115 Nm)

GFD39152Courtesy of FORD MOTOR COMPANY

  1. 18.

    Position the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe and install the new bolts.

    Torque

    : 46 lb.ft (63 Nm)

GFD39176Courtesy of FORD MOTOR COMPANY

  1. 19.

    Install the new RH catalytic converter-to-turbocharger nuts.

    Torque

    : 30 lb.ft (40 Nm)

GFD40139Courtesy of FORD MOTOR COMPANY

  1. 20.

    Install the new LH catalytic converter-to-turbocharger nuts.

    Torque

    : 30 lb.ft (40 Nm)

GFD40140Courtesy of FORD MOTOR COMPANY

  1. 21.

    If equipped, install the front driveshaft. Refer to: Front Driveshaft .

  1. 22.

    If equipped, install the skid plate and the bolts.

    Torque

    : 30 lb.ft (40 Nm)

GFD39149Courtesy of FORD MOTOR COMPANY

  1. 23.

    • If equipped, install the underbody shield and the bolts.

      Torque

      : 30 lb.ft (40 Nm)

    • Install the pin-type retainers.
GFD39150Courtesy of FORD MOTOR COMPANY

  1. 24.

    • If equipped, install the transmission housing cover and attach the retainer.
    • Install the bolts.

      Torque

      : 71 lb.in (8 Nm)

GFD38415Courtesy of FORD MOTOR COMPANY

  1. 25.

    Remove the special tools. Remove Special Service Tool: 303-F070 Support Bar, Engine., 303-1246 Engine Spreader Bar.
GFD40126Courtesy of FORD MOTOR COMPANY

  1. 26.

    Connect the ignition coil-on-plug electrical connector at the rear lifting bracket.
GFD40125Courtesy of FORD MOTOR COMPANY

  1. 27.

    Install the following items:

  1. 28.

    • Install the turbocharger outlet tube and connect turbocharger outlet tube into the grommet. Tighten the clamps.

      Torque

      : 44 lb.in (5 Nm)

    • Connect the turbocharger outlet tube hose.
GFD40110Courtesy of FORD MOTOR COMPANY

  1. 29.

    Install the turbocharger inlet tube and connect the turbocharger inlet tube into the grommet. Tighten the clamp at the turbocharger.

    Torque

    : 44 lb.in (5 Nm)

GFD40109Courtesy of FORD MOTOR COMPANY

  1. 30.

    Connect the turbocharger inlet tube hose.
GFD40108Courtesy of FORD MOTOR COMPANY

  1. 31.

    Connect the positive battery cable. Refer to: Battery Disconnect and Connect .

  1. 32.

    Install the turbocharger outlet tube and connect turbocharger outlet tube into the grommet. Tighten the clamps.

    Torque

    : 44 lb.in (5 Nm)

GFD40107Courtesy of FORD MOTOR COMPANY

  1. 33.

    If equipped, connect the block heater and wire retainer.
GFD40124Courtesy of FORD MOTOR COMPANY

  1. 34.

    Install the turbocharger inlet tube and connect the turbocharger inlet tube into the grommet. Tighten the clamp at the turbocharger.

    Torque

    : 44 lb.in (5 Nm)

GFD40105Courtesy of FORD MOTOR COMPANY

  1. 35.

    Connect the quick connect couplings and the turbocharger bypass tube. Refer to: QUICK RELEASE COUPLING
GFD40104Courtesy of FORD MOTOR COMPANY

  1. 36.

    1. 1.

      Install the PCV tube. Refer to: QUICK RELEASE COUPLING .

    1. 2.

      Connect the PCV pressure sensor electrical connector.
GFD40121Courtesy of FORD MOTOR COMPANY

  1. 37.

    Install the CAC-to-TB (throttle body) pipe. Tighten the clamps.

    Torque

    : 44 lb.in (5 Nm)

GFD40102Courtesy of FORD MOTOR COMPANY

  1. 38.

    Connect the electrical connector and the wire retainer. Connect the quick connect coupling. Refer to: QUICK RELEASE COUPLING .
GFD40101Courtesy of FORD MOTOR COMPANY

  1. 39.

    Install the following items:

  1. 40.

    Pressurize the fuel system. Refer to: FUEL SYSTEM PRESSURE RELEASE

  1. 41.

    Install the engine appearance cover.
GFD38911Courtesy of FORD MOTOR COMPANY

  1. 42.

    NOTE: LH shown, RH similar.

    1. 1.

      Position the hood shock and attach.

    1. 2.

      Install the clip.
GFD40141Courtesy of FORD MOTOR COMPANY

  1. 43.

    Position the hood and install the bolts.

    Torque

    : 18 lb.ft (25 Nm)

GFD39295Courtesy of FORD MOTOR COMPANY

  1. 44.

    Start and check the exhaust system for leaks.
