Engine Front Cover: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, may cause engine failure.

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2.

Remove the engine appearance cover.

GFD38911

Courtesy of FORD MOTOR COMPANY

3.

Release the fuel system pressure. Refer to: FUEL SYSTEM PRESSURE RELEASE .

4.

Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

5.

Remove the air cleaner outlet pipe. Refer to: AIR CLEANER OUTLET PIPE

6.

Disconnect the electrical connector and the wire retainer. Disconnect the quick connect coupling. Refer to: QUICK RELEASE COUPLING

GFD40101

Courtesy of FORD MOTOR COMPANY

7.

Loosen the clamps and remove the CAC-to-TB (throttle body) pipe.

GFD40102

Courtesy of FORD MOTOR COMPANY

8.
1. 1.

  Disconnect the PCV pressure sensor electrical connector.
1. 2.

  Remove the PCV tube. Refer to: QUICK RELEASE COUPLING .

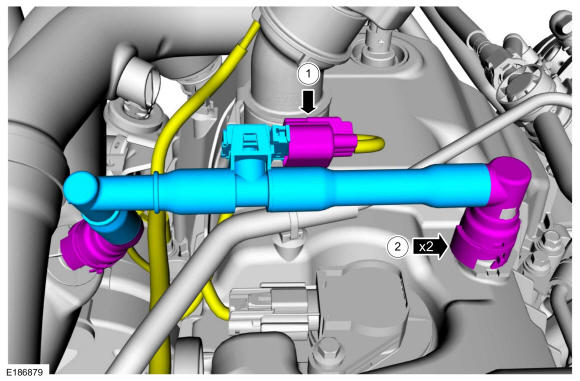

GFD40103

Courtesy of FORD MOTOR COMPANY

9.

Disconnect the quick connect couplings and the turbocharger bypass tube. Refer to: QUICK RELEASE COUPLING

GFD40104

Courtesy of FORD MOTOR COMPANY

10.

Loosen the clamp at the turbocharger. Disconnect the turbocharger inlet tube from the grommet and remove the turbocharger inlet tube.

GFD40105

Courtesy of FORD MOTOR COMPANY

11.

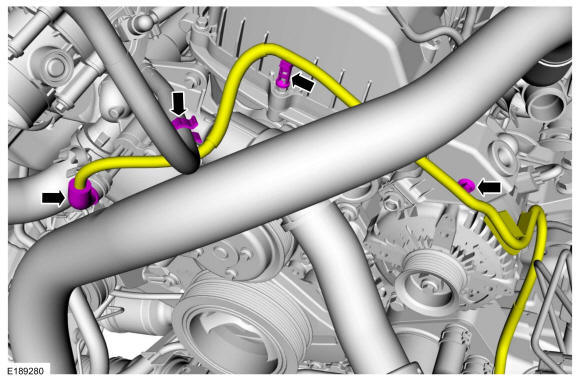

If equipped, disconnect the block heater electrical connector and wire retainers.

GFD40106

Courtesy of FORD MOTOR COMPANY

12.

Loosen the clamps. Disconnect the turbocharger outlet tube from the bracket grommet and remove the turbocharger outlet tube.

GFD40107

Courtesy of FORD MOTOR COMPANY

13.

Disconnect the battery positive cable. Refer to: Battery Disconnect and Connect .

14.

Disconnect the turbocharger inlet tube hose.

GFD40108

Courtesy of FORD MOTOR COMPANY

15.

Loosen the clamp at the turbocharger. Disconnect the turbocharger inlet tube from the grommet and remove the turbocharger inlet tube.

GFD40109

Courtesy of FORD MOTOR COMPANY

16.
- Disconnect the turbocharger outlet tube hose.
- Loosen the clamps. Disconnect the turbocharger outlet tube from the bracket grommet and remove the turbocharger outlet tube.

GFD40110

Courtesy of FORD MOTOR COMPANY

17.

Remove the oil drain plug and drain the engine oil.
Torque

: 20 lb.ft (27 Nm)

GFD40111

Courtesy of FORD MOTOR COMPANY

18.

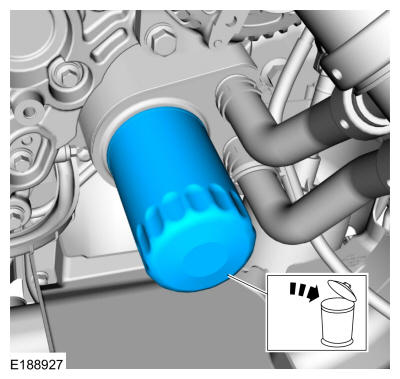

Remove and discard the engine oil filter.

GFD40112

Courtesy of FORD MOTOR COMPANY

19.

Remove the following items:
- Remove the intake manifold. Refer to: Intake Manifold .
- Remove the LH valve cover. Refer to: Valve Cover LH .
- Remove the RH valve cover. Refer to: Valve Cover RH .
- Remove the coolant pump. Refer to: COOLANT PUMP .
- Remove the crankshaft front seal. Refer to: Crankshaft Front Seal .

20.

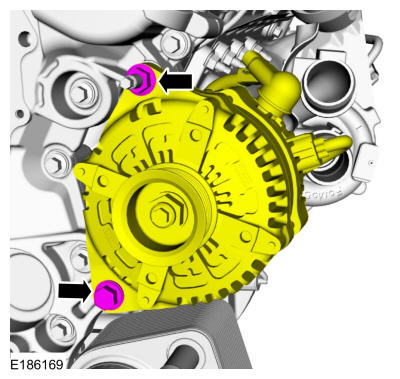

Remove the nut, bolt and position aside the generator.

GFD40113

Courtesy of FORD MOTOR COMPANY

21.

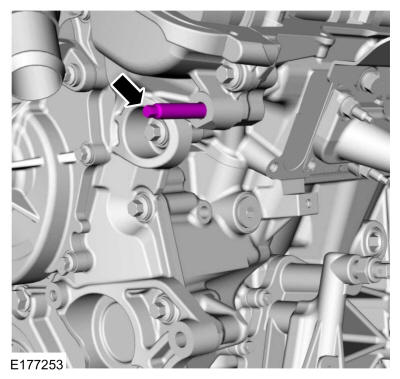

Remove the generator stud.

GFD40114

Courtesy of FORD MOTOR COMPANY

22.

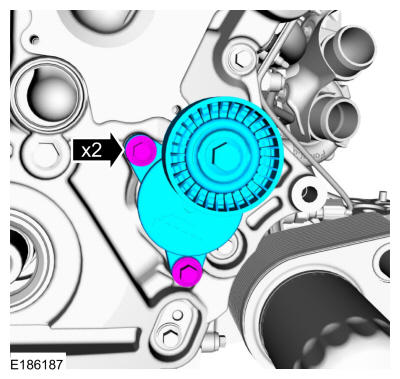

Remove the bolts and the accessory drive belt tensioner.

GFD40115

Courtesy of FORD MOTOR COMPANY

23.

Remove the pushpin retainer from the oil pan.

GFD39641

Courtesy of FORD MOTOR COMPANY

24.

Remove the nut and position the transmission cooler tube bracket aside. Position out the engine wiring.

GFD39642

Courtesy of FORD MOTOR COMPANY

25.

Disconnect the generator wiring from the engine front cover.

GFD39643

Courtesy of FORD MOTOR COMPANY

26.

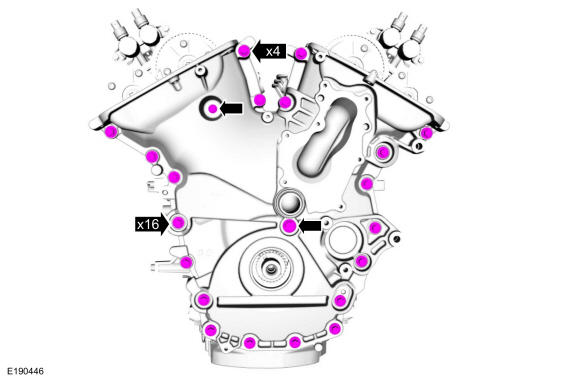

Remove the engine front cover bolts.

GFD40116

Courtesy of FORD MOTOR COMPANY

27.

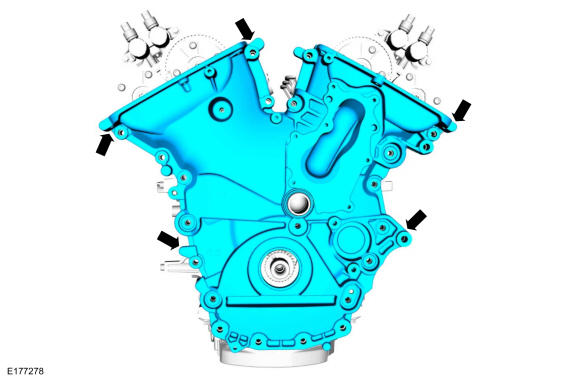

Using a pry tool on the pry pads shown below, remove the engine front cover.

GFD39916

Courtesy of FORD MOTOR COMPANY

28.

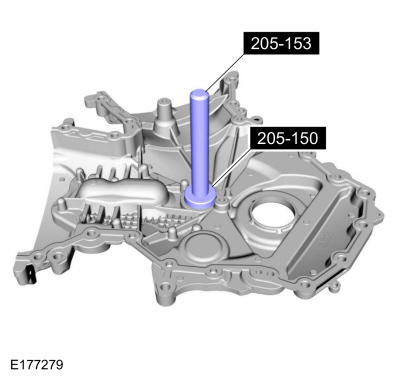

Using the special tools, remove the engine front cover to coolant pipe seal. Use Special Service Tool: 205-150 (T80T-4000-S) Installer, Spindle Bearing., 205-153 (T80T-4000-W) Handle.
