Cylinder Head RH: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
NOTE: If the cylinder head is replaced, a new secondary timing chain tensioner will need to be installed. Refer to Variable Camshaft Timing (VCT) Unit .

  1. 1.

    With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

  1. 2.

    Release the fuel system pressure. Refer to: FUEL SYSTEM PRESSURE RELEASE .

  1. 3.

    Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

  1. 4.

    Remove the RH turbocharger. Refer to: Turbocharger RH .

  1. 5.

    Remove the RH camshafts. Refer to: Camshafts .

  1. 6.

    NOTE: Do not use power tools to remove the bolt or damage to the upper RH timing chain guide may occur.

    Remove the bolts and the RH timing chain guide.

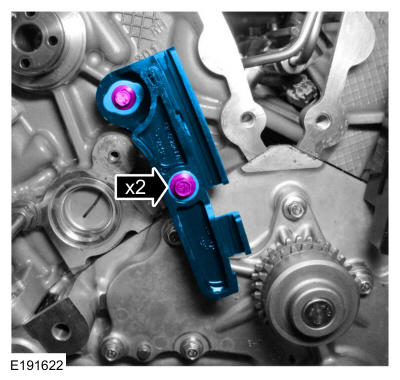

GFD40094Courtesy of FORD MOTOR COMPANY

  1. 7.

    • Disconnect the heater hose. Use the General Equipment: Hose Clamp Remover/Installer
    • Remove the bolts and the coolant crossover manifold assembly.
    • Discard the gaskets.
GFD40084Courtesy of FORD MOTOR COMPANY

  1. 8.

    Loosen the flare nuts, remove the bolt and the high-pressure fuel tube. Discard the bolt and the high-pressure fuel tube.
GFD40085Courtesy of FORD MOTOR COMPANY

  1. 9.

    Disconnect the fuel rail pressure sensor and RH fuel charge harness electrical connectors.

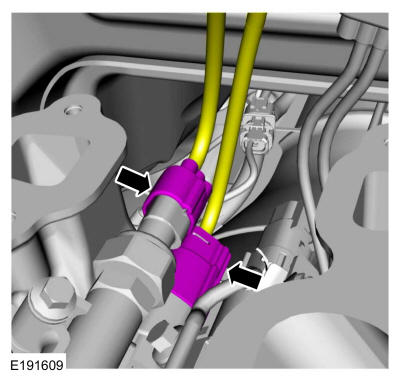

GFD40095Courtesy of FORD MOTOR COMPANY

  1. 10.

    • Remove the retainers and the heat shield.
    • Remove the stud bolt.
    • Disconnect the CHT sensor electrical connector and wiring harness retainer.

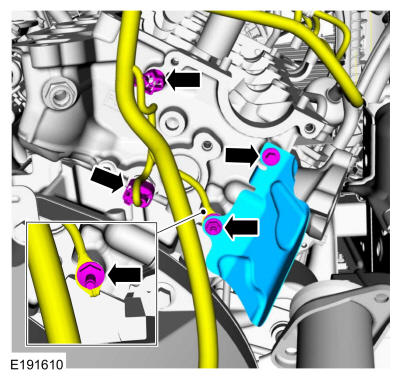

GFD40096Courtesy of FORD MOTOR COMPANY

  1. 11.

    NOTE: If the components are to be reinstalled, they must be installed in the same positions. Mark the components for installation into their original locations.

    Remove the valve tappets.

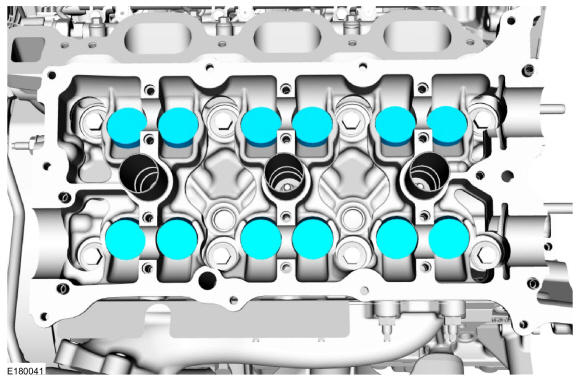

GFD40097Courtesy of FORD MOTOR COMPANY

  1. 12.

    Inspect and install new components as necessary.
GFD39605Courtesy of FORD MOTOR COMPANY

  1. 13.

    Remove and discard the M6 bolt.

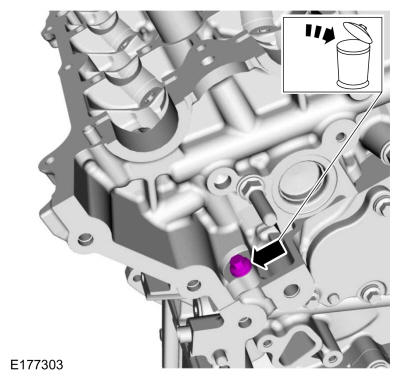

GFD39626Courtesy of FORD MOTOR COMPANY

  1. 14.

      NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
      NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface
      NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are tighten-to-yield designed and cannot be reused.
    • Remove and discard the bolts.
    • Remove the cylinder head.

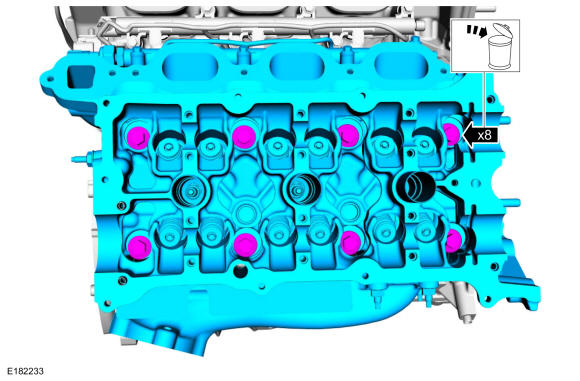

GFD40098Courtesy of FORD MOTOR COMPANY

  1. 15.

    Remove and discard the cylinder head gasket.

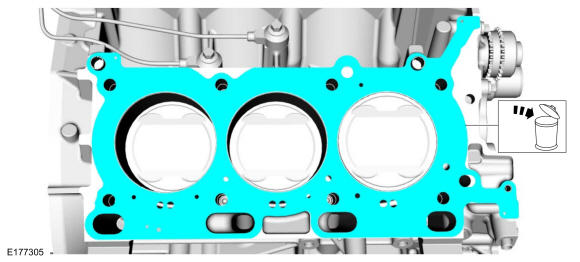

GFD39629Courtesy of FORD MOTOR COMPANY

  1. 16.

    NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.
    NOTE: Observe all warnings or cautions and follow all application directions contained on the packaging.

    Make sure that the mating faces are clean and free of foreign material.

    Material

    : Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material

    : Motorcraft ® Metal Surface Prep / ZC-31-B

  1. 17.

    Support the cylinder head on a bench with the head gasket side up. Check the cylinder head distortion and the cylinder block distortion. Refer to: Cylinder Head Distortion . Refer to: Cylinder Block Distortion .
