Cylinder Head LH: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

NOTE: If the cylinder head is replaced, a new secondary timing chain tensioner will need to be installed. Refer to Variable Camshaft Timing (VCT) Unit .

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2.

Release the fuel system pressure. Refer to: FUEL SYSTEM PRESSURE RELEASE .

3.

Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

4.

Remove the LH turbocharger. Refer to: Turbocharger LH .

5.

Remove the LH camshafts. Refer to: Camshafts .

6.

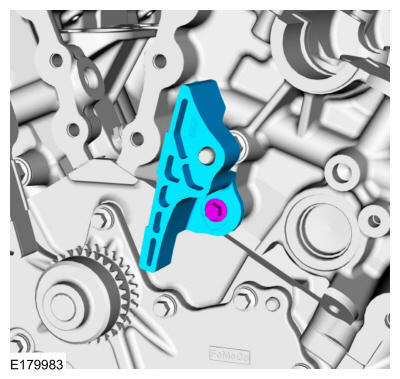

NOTE: Do not use power tools to remove the bolt or damage to the upper LH timing chain guide may occur.

Remove the bolt and the upper LH timing chain guide.

GFD39603

Courtesy of FORD MOTOR COMPANY

7.

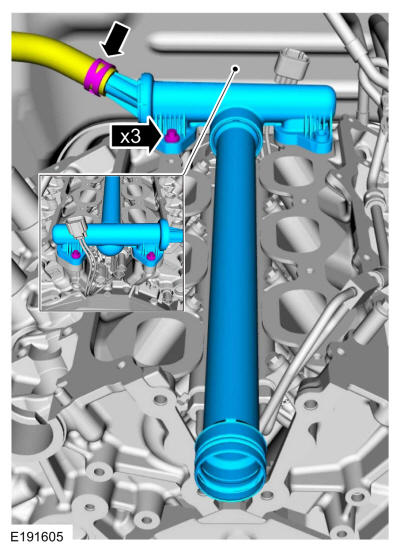

- Disconnect the heater hose. Use the General Equipment: Hose Clamp Remover/Installer
- Remove the bolts and the coolant crossover manifold assembly.
- Discard the gaskets.

GFD40084

Courtesy of FORD MOTOR COMPANY

8.

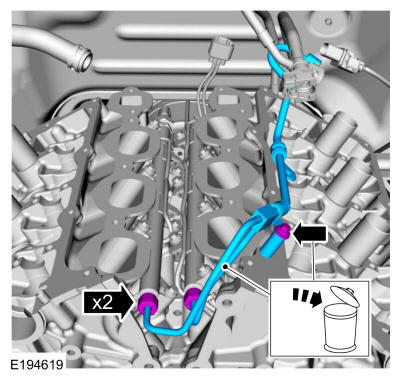

Loosen the flare nuts, remove the bolt and the high-pressure fuel tube. Discard the bolt and the high-pressure fuel tube.

GFD40085

Courtesy of FORD MOTOR COMPANY

9.

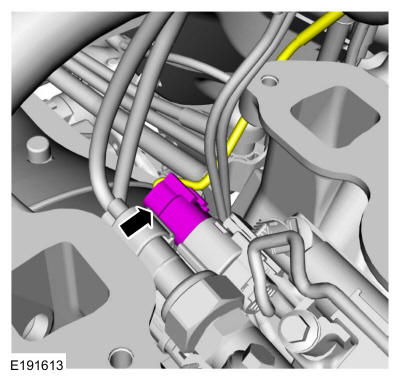

Disconnect the LH fuel charge harness electrical connector.

GFD40086

Courtesy of FORD MOTOR COMPANY

10.

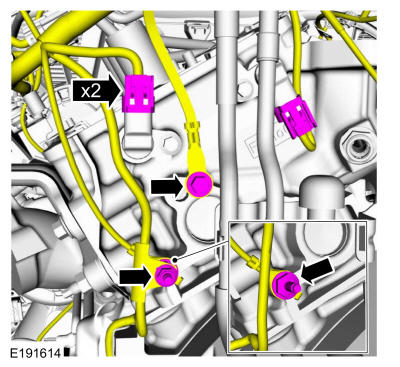

- Remove the nut (if equipped) and wiring harness retainer.
- Remove the stud bolt.
- Disconnect the CMP sensors electrical connectors.
- Remove the bolt and position aside the ground strap.

GFD40087

Courtesy of FORD MOTOR COMPANY

11.

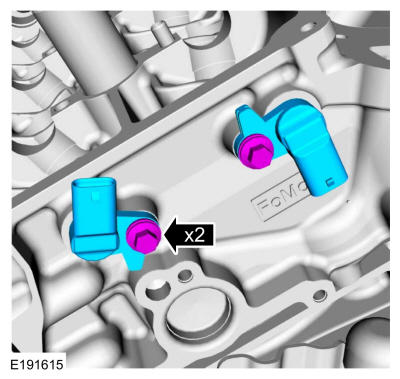

Remove the bolts and the CMP sensors.

GFD40088

Courtesy of FORD MOTOR COMPANY

12.

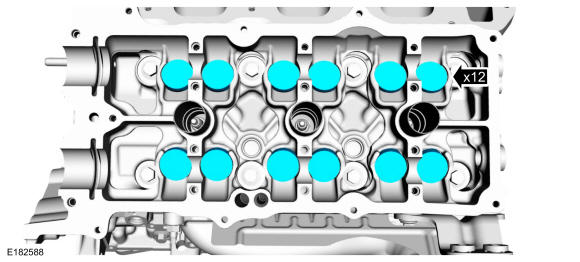

NOTE: If the components are to be reinstalled, they must be installed in the same positions. Mark the components for installation into their original locations.

Remove the valve tappets.

GFD40089

Courtesy of FORD MOTOR COMPANY

13.

Inspect and install new components as necessary.

GFD39605

Courtesy of FORD MOTOR COMPANY

14.

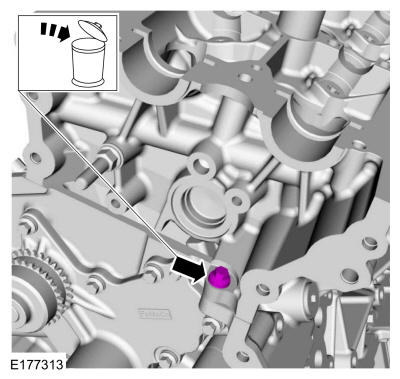

Remove and discard the M6 bolt.

GFD39606

Courtesy of FORD MOTOR COMPANY

15.

NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.

NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface

NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are tighten-to-yield designed and cannot be reused.

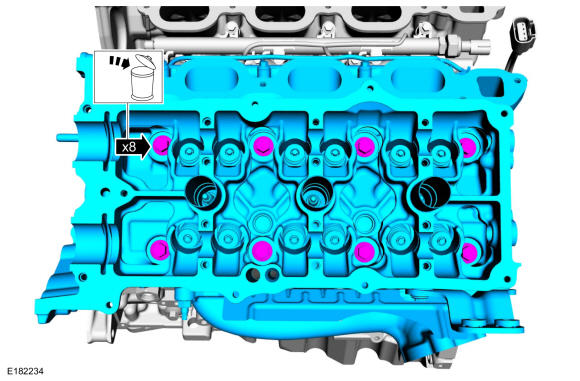

- Remove and discard the bolts.
- Remove the cylinder head.

GFD40090

Courtesy of FORD MOTOR COMPANY

16.

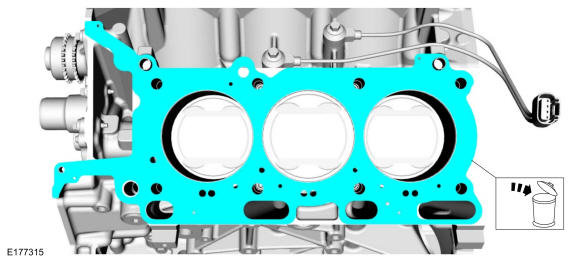

Remove and discard the cylinder head gasket.

GFD39609

Courtesy of FORD MOTOR COMPANY

17.

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.

NOTE: Observe all warnings or cautions and follow all application directions contained on the packaging.

Make sure that the mating faces are clean and free of foreign material.

Material

: Motorcraft ® Silicone Gasket Remover / ZC-30-A

Material

: Motorcraft ® Metal Surface Prep / ZC-31-B

18.

Support the cylinder head on a bench with the head gasket side up. Check the cylinder head distortion and the cylinder block distortion. Refer to: Cylinder Head Distortion . Refer to: Cylinder Block Distortion .
