Crankshaft Rear Seal: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

NOTE: Failure to use Motorcraft ® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

NOTE: The crankshaft rear seal retainer must be installed and the bolts tightened within 10 minutes of sealant application.

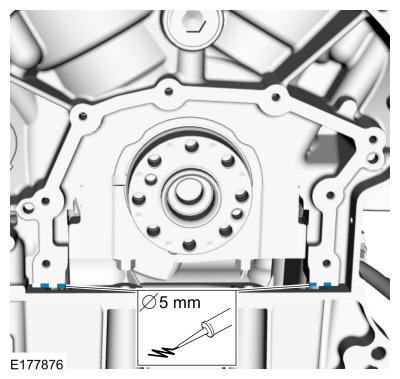

Apply 5 mm (0.196 in) bead of silicone sealant.

Material

: Motorcraft ® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY

2.

NOTE: Failure to use Motorcraft ® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

NOTE: The crankshaft rear seal retainer must be installed and the bolts tightened within 10 minutes of sealant application.

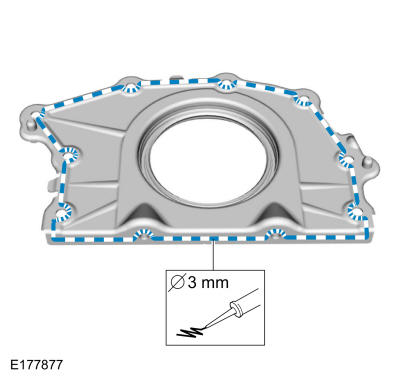

Apply 3 mm (0.11 in) bead of silicone sealant.

Material

: Motorcraft ® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY

3.

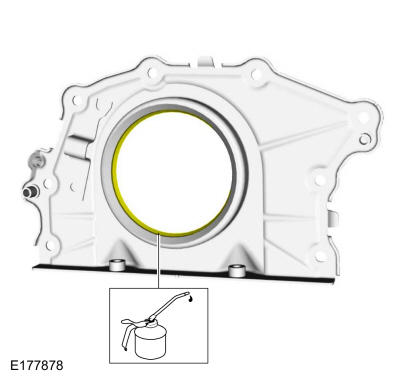

Lubricate the crankshaft rear seal with clean engine oil.
Material

: Motorcraft ® SAE 5W-30 Premium Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

Courtesy of FORD MOTOR COMPANY

4.
1. 1.

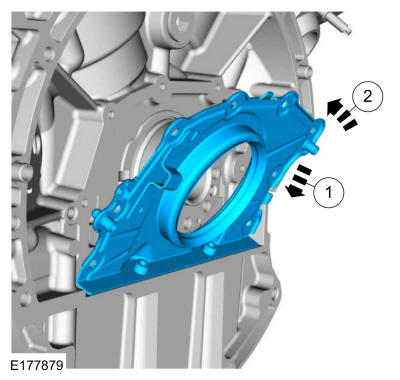

  Install the crankshaft rear seal retainer at an angle above the oil pan flange to avoid scraping off the sealer.
1. 2.

  Tilt the seal retainer up and onto the rear of the cylinder block.

Courtesy of FORD MOTOR COMPANY

5.

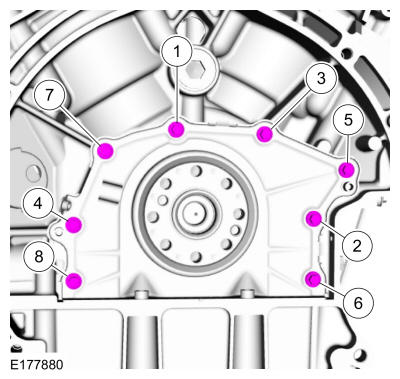

Install the bolts and tighten in sequence shown below.
Torque

: 89 lb.in (10 Nm)

Fig 1: Crankshaft Rear Seal Retainer Bolts Tightening Sequence

Courtesy of FORD MOTOR CO.

6.

Install oil pan-to-crankshaft rear seal bolts.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

7.

Install the CKP sensor and the bolt.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

8.

Connect the CKP sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

9.

Install the engine-to-transmission spacer plate and the crankshaft sensor ring.

Courtesy of FORD MOTOR COMPANY

10.

Install the flexplate. Refer to: Flexplate .
