Crankshaft Front Seal: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan may cause engine failure.
- 1.
Remove the A/C compressor belt. Refer to: AIR CONDITIONING (A/C) COMPRESSOR BELT .
- 3.

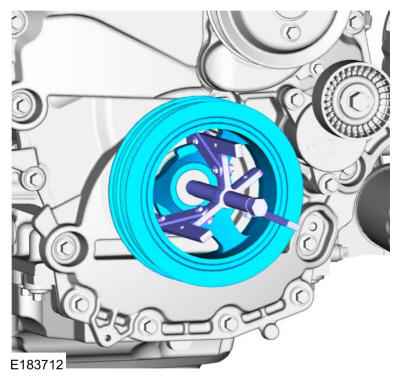

Using a three leg puller, remove the crankshaft pulley. Use the General Equipment: Three Leg Puller
- 4.

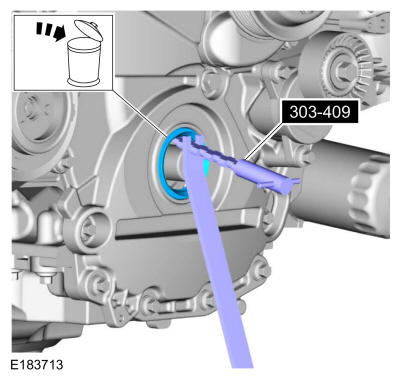

Using the special tool, remove and discard the crankshaft front seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.
