Crankshaft Front Seal: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

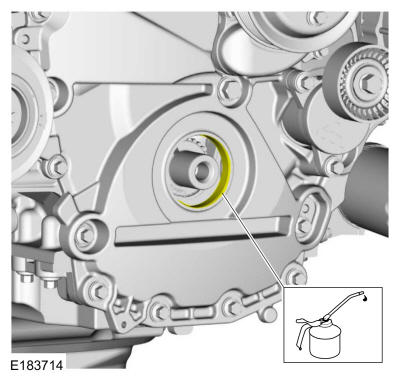

Lubricate the crankshaft front seal bore with clean engine oil.
Material

: Motorcraft ® SAE 5W-30 Premium Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

Courtesy of FORD MOTOR COMPANY

2.

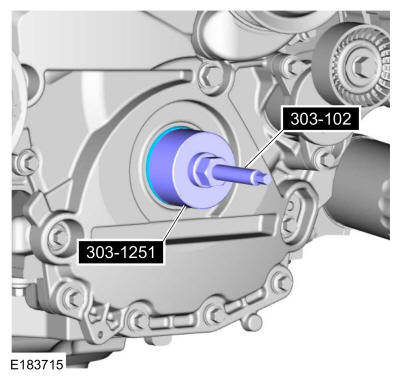

Using the special tools, install the crankshaft front seal. Use Special Service Tool: 303-102 Installer, Crankshaft Pulley., 303-1251 Installer, Front Seal.

Courtesy of FORD MOTOR COMPANY

3.

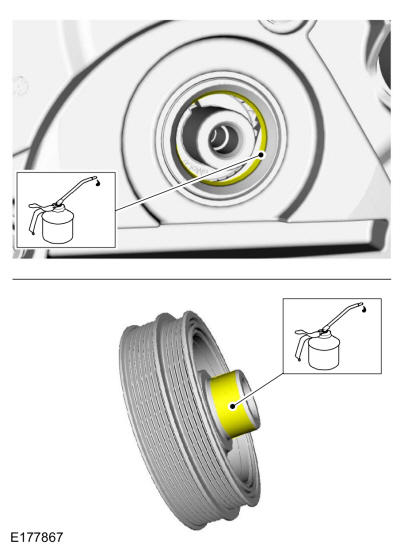

Lubricate the crankshaft front seal and the crankshaft pulley with clean engine oil.
Material

: Motorcraft ® SAE 5W-30 Premium Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

Courtesy of FORD MOTOR COMPANY

4.

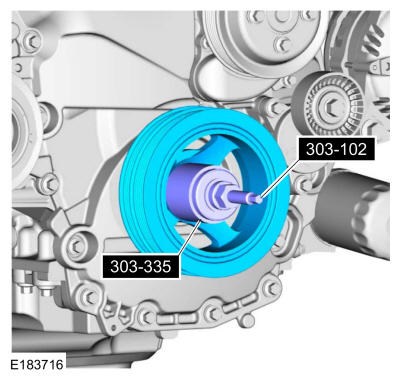

Using the special tools, install the crankshaft pulley. Use Special Service Tool: 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal., 303-102 Installer, Crankshaft Pulley.

Courtesy of FORD MOTOR COMPANY

5.

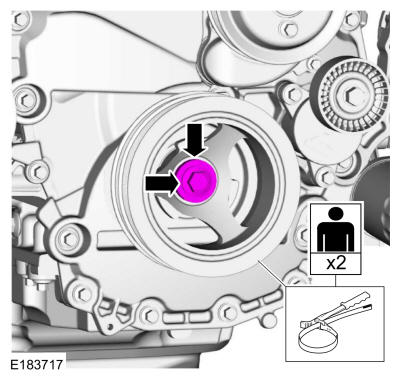

Using the strap wrench, install the new crankshaft bolt and the washer and tighten in 4 stages. Use the General Equipment: Strap Wrench
Torque

: Stage 1: 89 lb.ft (120 Nm) Stage 2: Loosen:: 1 turn(s) Stage 3: 37 lb.ft (50 Nm) Stage 4: 90 °

Courtesy of FORD MOTOR COMPANY

6.

Install the A/C compressor belt. Refer to: AIR CONDITIONING (A/C) COMPRESSOR BELT .

7.

After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
