Disassembly And Assembly Of Subassemblies: Piston: Disassembly

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

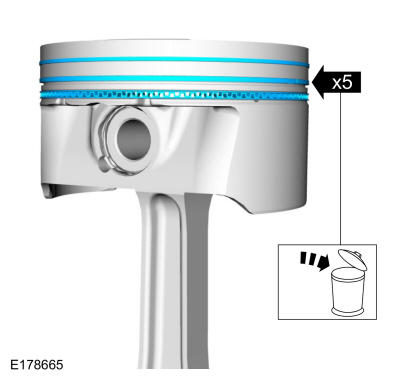

Remove the piston rings and discard.

Courtesy of FORD MOTOR COMPANY

2.

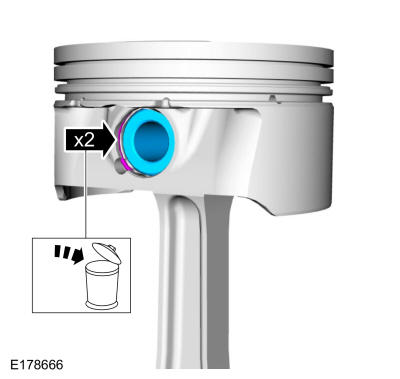

- Remove the piston pin retainers and discard.
- Remove the piston pin.

Courtesy of FORD MOTOR COMPANY

3.

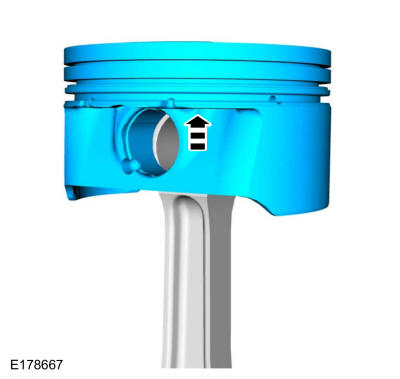

NOTE: If the piston and connecting rod are to be reinstalled, they must be assembled in the same orientation. Mark the piston orientation to the connecting rod for reassembly.

Remove the piston from the connecting rod.

Courtesy of FORD MOTOR COMPANY

4.

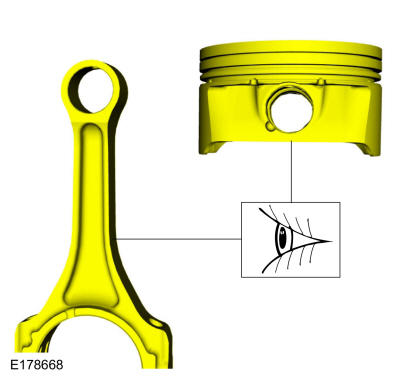

Inspect the piston and connecting rod. Refer to: Piston Inspection .

Courtesy of FORD MOTOR COMPANY
