Engine - Overview: Overview
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
The 3.5L Gasoline Turbocharged Direct Injection (GTDI) (4V) is a V-6 engine with the following features:
- Dual overhead camshafts
- Four valves per cylinder
- Gasoline Turbocharged Direct Injection (GTDI)
- Composite intake manifold
- Aluminum cylinder heads
- An aluminum, 60-degree V-cylinder block
- Twin independent variable cam timing (Ti-VCT)
- An electronic ignition system with 6 ignition coils
Engine Identification
For quick identification, refer to the safety certification decal.
The decal is located on the LH front door lock face panel.

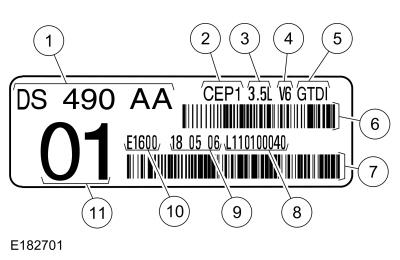

Engine Code Information Label
The engine code information label, located on the front side of the valve cover, contains the following:
| Item | Description |
|---|---|
| 1 | Engine part number |
| 2 | Engine plant (Cleveland) |
| 3 | Engine displacement |
| 4 | Engine configuration |
| 5 | Gasoline Turbocharged Direct Injection (GTDI) |
| 6 | Bar code |
| 7 | Bar code |
| 8 | Running number |
| 9 | Engine build date (DDMMYY) |
| 10 | Plant shift line |
| 11 | Derivative code |

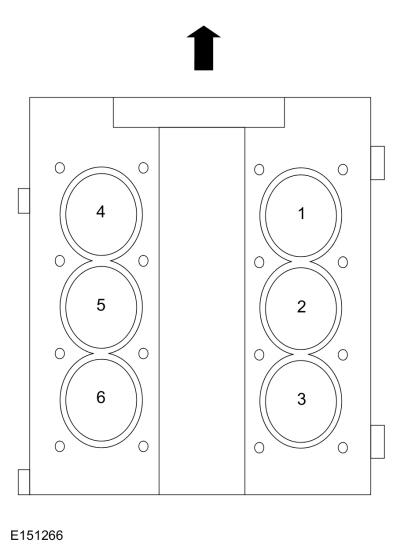

Engine Cylinder Identification
